Wired Reversing Camera System with 7'' LCD Monitor & Camera
Part Number: S.23053Categories: Electrical Accessories
Part Number: S.23053
Grade: Replacement
Part Details

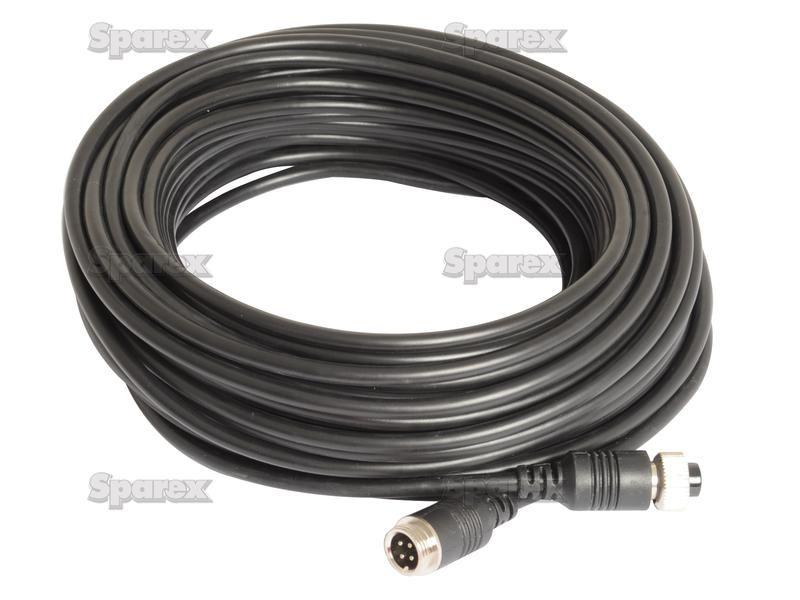

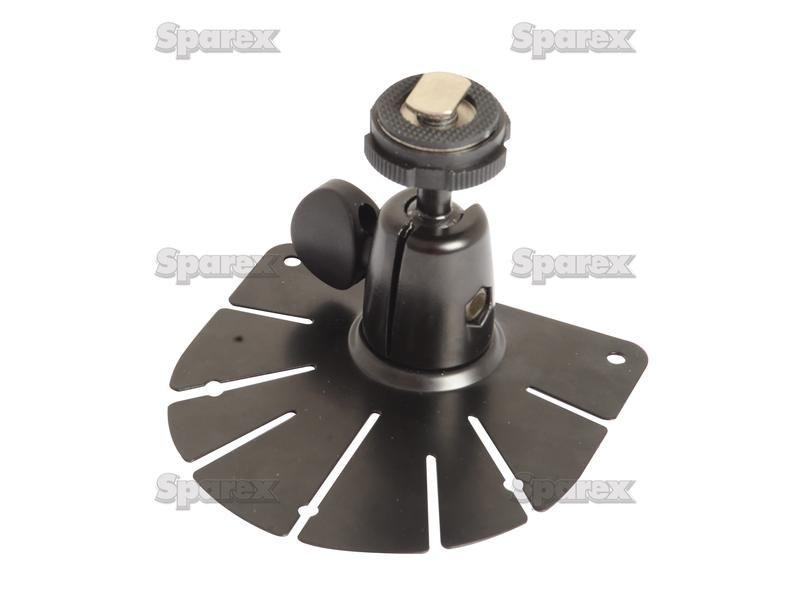

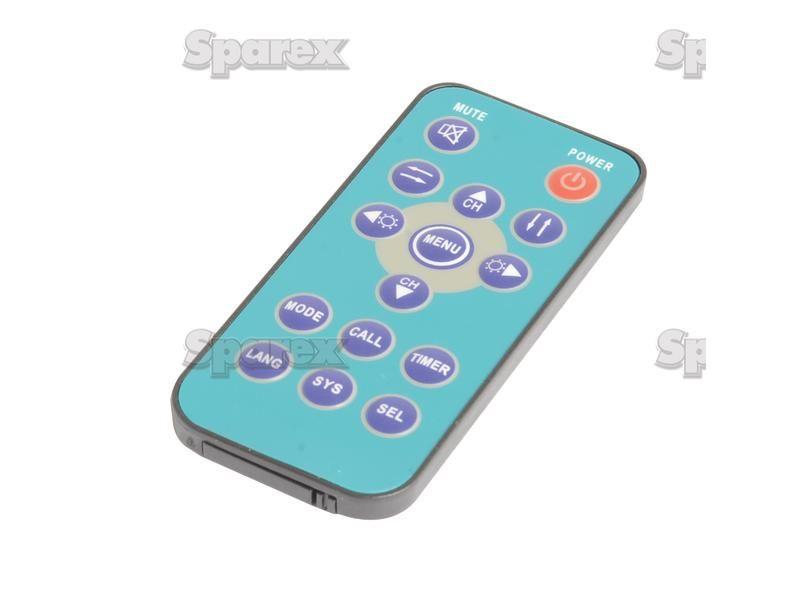

Wired Reversing Camera System with 7'' LCD Monitor & Camera Modern designed switches with touch system, easy to install - easy to useContains: 1 x 7'' TFT-LCD Monitor 800 (RGB) x 480 Resolution, 1 x 1/3 CMOS Camera (Additional camera S.115188), 1 x 20m Extension Cable, 1 x Removable sunvisor, 1 x Adjustable support, 1 x Remote control, 1 x ManualMax. no. of cameras: 3 (Max. shown on screen: 1)Temperature range: -20°C to 70°CNight visionCamera viewing angle: 120°IP Rating: IP69KVolts: 10-32V
Technical Information
| Additional camera | S.115188 |
| Audio | Yes |
| Audio output | 1W |
| Auto reverse switch cable | Yes |
| Brand | Sparex |
| Brightness | 400 cd/m² |
| Camera IP rating | IP69K |
| Camera Type | 1/4'' CMOS |
| Certification | CE, RoHS |
| Colour encoding | PAL/NTSC |
| Conformity | IP69K |
| Connection Type | Wired |
| Connectivity | Analogue (CVBS) |
| Contains | 1 x 7'' TFT-LCD Monitor 800 (RGB) x 480 Resolution, 1 x 1/3 CMOS Camera (Additional camera S.115188), 1 x 20m Extension Cable, 1 x Removable sunvisor, 1 x Adjustable support, 1 x Remote control, 1 x Manual |
| Contrast | 500:1 |
| Depth mm | 40 |
| Features | Features: TFT LCD Wired 7" Monitor with wide angle view and high resolution display High Resolution: 800x3 (RGB) x 480 Picture may be adjusted for Horizontal, Vertical, Mirror and Normal viewing Select from 8 languages for user operation: English, French, Portuguese, Spanish, Russian, Dutch, German, Italian Automatic backlight for buttons Full-function remote control Up to 3 cameras can be used Monitor & camera operates from 10 - 32V. Supports 12V or 24V Monitor has integrated speaker Volume Control Brightness, contrast and tint adjustment Automatic scanning function Automatically switches to reverse, left, right or forward camera view Distance Grid screen display: Yes |
| Fits SD card size | No |
| Frame rate FPS | PAL: 25, NTSC: 30 |
| Height mm | 128 |
| IP Rating | IP69K |
| Loop option | Yes |
| Maximum number of cameras | 3 |
| Maximum number of cameras shown on screen | 1 |
| Maximum Temperature | +70°C |
| Minimum Temperature | -20°C |
| Mirror function | Yes |
| Monitor IP rating | IP30 |
| Monitor size | 7'' |
| Monitor type | LCD |
| Quad screen | No |
| Recording function | No |
| Related Products | 23031, 23032, 23033, 23057, 23977, 24410, 51738, 71233, 115188, 144039, 162713 |
| Resolution | 800 (RGB) x 480 |
| Split screen | No |
| Supplied with | with 7'' LCD Monitor & Camera |
| Tariff Code | 8525809900 |
| Technical Specifications | Technical Specifications: 7" TFT-LCD Colour monitor with digital panel & touch screen buttons Resolution: 800x3 (RGB) x 480 Contrast: 500:1 Viewing Angle: U: 50 °, D 60 °, R/L: 70 ° / 70 ° Audio output: 1.5W Camera type: 1/4" CMOS Camera Night IR Vision Distance: 8 -10m (25M2) Waterproof Camera: IP69K (Protected against dust and close-range high pressure, high temperature spray downs) Camera Viewing Angle: 100° Camera Audio: Yes Camera Power Supply: DC 12V )via the Monitor -20°C - 70°C |
| Temperature Range | -20°C to 70°C |
| Touch screen | No |
| Type | LCD |
| Viewing angle camera | 120° |
| Viewing angle monitor | U: 50, D: 70, R/L: 70 |
| Volts | 10-32V |
| Width mm | 195 |
