Wired Reversing Camera System with 7'' LCD Monitor & Camera
Part Number: S.115175Categories: Electrical Accessories
Part Number: S.115175
Grade: Replacement
Part Details

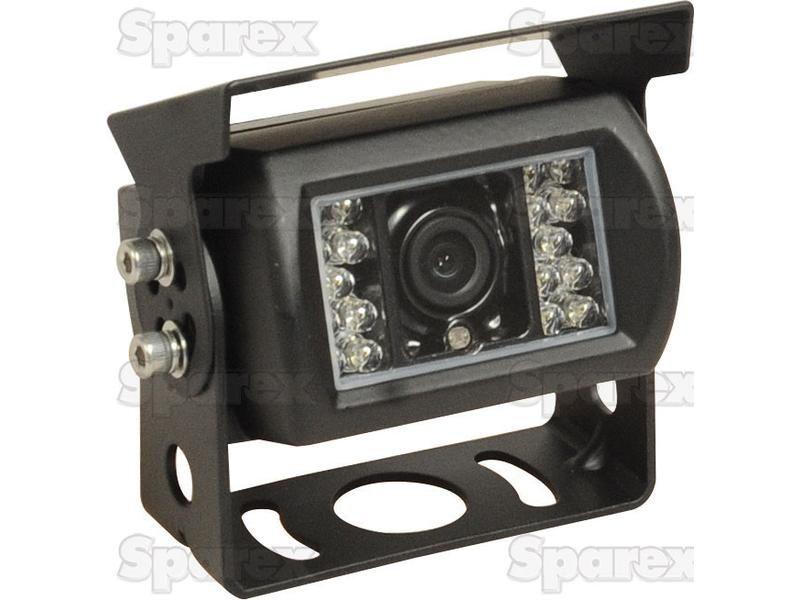

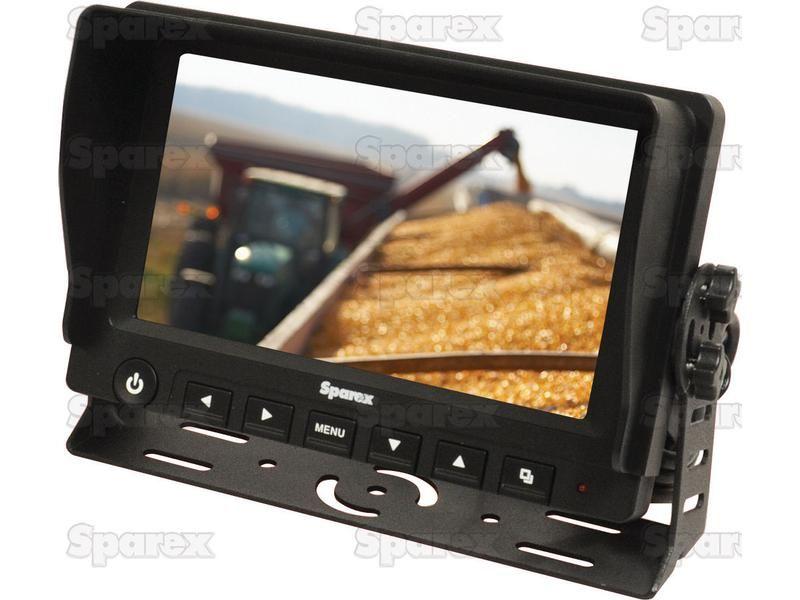

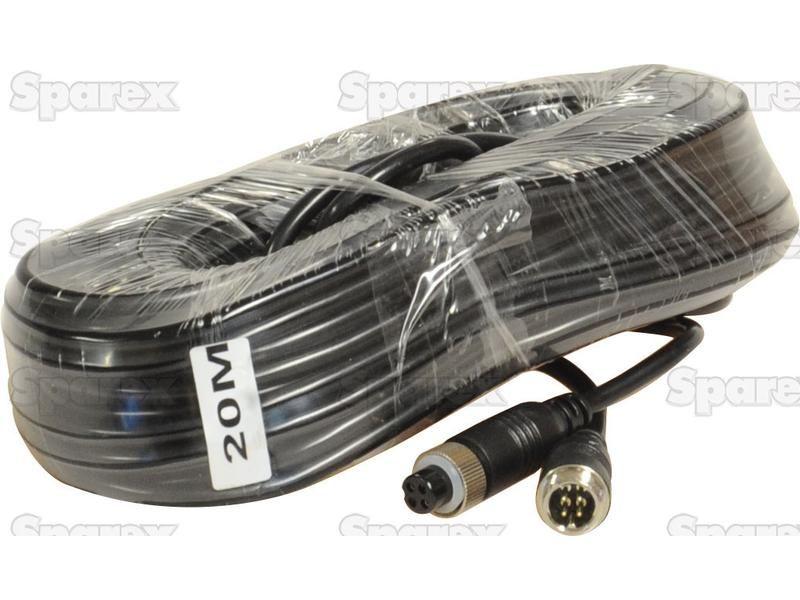

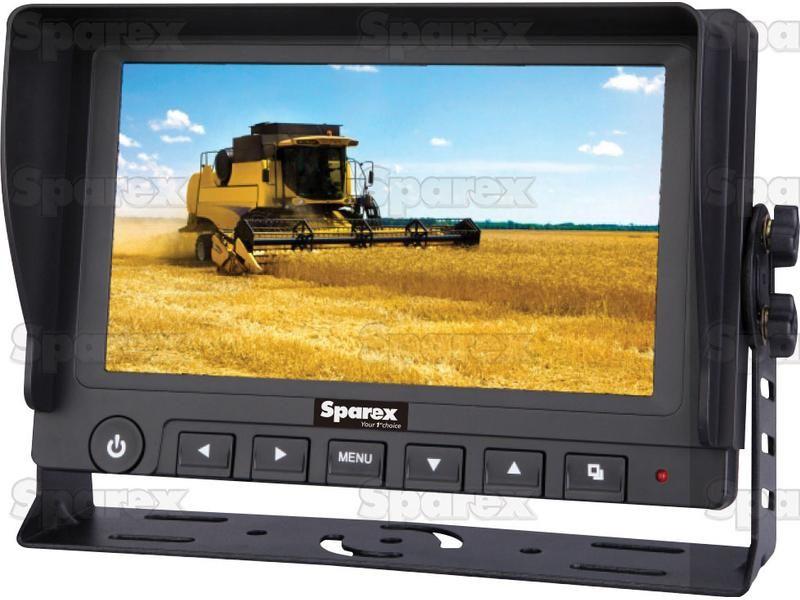

Wired Reversing Camera System with 7'' LCD Monitor & Camera Very good value for money, easy to install - easy to useWired system adapted for the farming environment - robust and practical.Can have up to 2 cameras on one system.Contains: 1 x 7'' TFT-LCD Monitor 800 (RGB) x 480 Resolution, 1 x 1/3 CMOS Camera (Additional camera: S.115188), 1 x 20m Extension Cable, 1 x Removable sunvisor, 1 x Adjustable support, 1 x ManualMax. no. of cameras: 2 (Max. shown on screen: 1)Temperature range: -20°C to 70°CNight visionCamera viewing angle: 120°IP Rating: IP69KVolts: 10-32V
Technical Information
| Additional camera | S.115188 |
| Audio | No |
| Auto reverse switch cable | Yes |
| Brand | Sparex |
| Brightness | 400 cd/m² |
| Camera IP rating | IP69K |
| Certification | CE, RoHS |
| Colour encoding | PAL/NTSC |
| Connection Type | Wired |
| Connectivity | Analogue (CVBS) |
| Contains | 1 x 7'' TFT-LCD Monitor 800 (RGB) x 480 Resolution, 1 x 1/3 CMOS Camera (Additional camera: S.115188), 1 x 20m Extension Cable, 1 x Removable sunvisor, 1 x Adjustable support, 1 x Manual |
| Contrast | 500:1 |
| Depth mm | 28 |
| Fits SD card size | No |
| Frame rate FPS | PAL: 25, NTSC: 30 |
| Height mm | 128 |
| IP Rating | IP69K |
| Loop option | No |
| Maximum number of cameras | 2 |
| Maximum number of cameras shown on screen | 1 |
| Mirror function | Yes |
| Monitor IP rating | IP54 |
| Monitor size | 7'' |
| Monitor type | LCD |
| Night vision | Infrared LEDs for night vision |
| Quad screen | No |
| Recording function | No |
| Related Products | 23031, 23032, 23033, 115188, 144039, 162713, 164135 |
| Resolution | 800 (RGB) x 480 |
| Split screen | No |
| Supplied with | with 7'' LCD Monitor & Camera |
| Tariff Code | 8525809900 |
| Temperature Range | -20°C to 70°C |
| Touch screen | No |
| Viewing angle camera | 120° |
| Viewing angle monitor | U: 50, D: 50, R/L: 70 |
| Volts | 10-32V |
| Width mm | 199 |
