Weld On Bucket Edge (Single Bevel) Hardness: 250-300Hb.


Part Number: S.77087  -  Categories: Loader Tines

£280.61

per item, including UK VAT and delivery


Part Number: S.77087

Grade: Replacement

Part Details

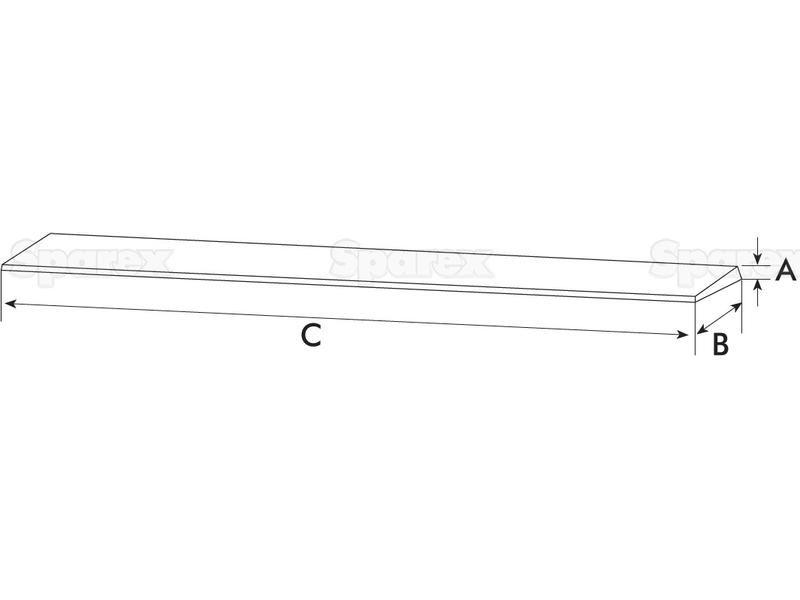

Weld On Bucket Edge (Single Bevel) Hardness: 250-300Hb. Length: 2500mm, Width: 150mm, Thickness: 20mm.

Technical Information

Brand Sparex
Hardness Hb 250-300
Length mm 2500
Notes Procedure for welding your bucket strip. - Please apply a 30 degree chamfer to the edge of the bucket strip and bucket wide enough to facilitate a good weld. - Remove all residue from surfaces to be welded. - Correctly assemble and clamp the bucket strip to the bucket. - Types of electrodes to be used: - Pre-heat to 300 degrees Celsius use electrode AWS-E7018 - Pre-heat to 100 degrees Celsius use electrode AWS-E110-18G - No pre-heat use electrode AWS-E307 or AWS-E312 - Tack weld the bucket strip to the bucket in several positions before applying fillet weld. - Please allow weld to cool naturally if possible - rapid cooling by the application of water for example, could cause thermal shock within the material leading to the weld and or bucket strip to crack. - Please observe all health and safety rules and laws when carrying out this procedure.
Profile Single Bevel
Tariff Code 8431492000
Thickness mm 20
Width mm 150
