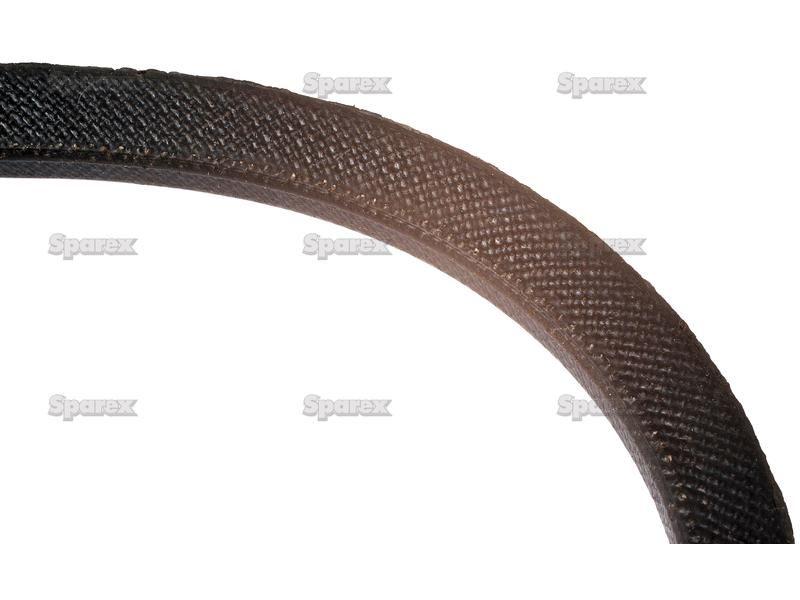

Wedge Belt - SPZ Section - Belt No. SPZ1237 for Zetor CRYSTAL 8145
Part Number: S.64166Categories: Engine Fuel and Filters


Part Number: S.64166
Grade: Replacement
Part Details
Wedge Belt - SPZ Section - Belt No. SPZ1237
Technical Information
| Inside length Li (mm) | 1207 |
| Effective Length (mm) | 1245 |
| Pitch Length (Lp) (Lw): | 1245 |
| Datum length LD (mm) | 1245 |
| Outside length La (mm) | 1258 |
| Related products | 14683 |
| Width (ins) | 3/8 |
| Tariff Code | 4010390010 |
| Inside length Li ins | 48 |
| Effective Length (ins) | 49 |
| Depth ins | 5/16 |
| Outside length La (ins) | 50 |
| Depth (mm) | 8 |
| Width (mm) | 9.7 |
| Top Width x Depth | 9.7 x 8mm (3/8'' x 5/16'') |
| Brand | Sparex (Agribelt) |
| Section | SPZ |
| Belt No. | SPZ1237 |
| Type | Wedge Belt Smooth |
Manufacturer Part Numbers
| Belt References |
|---|
| 9.5X1263, 95X1263, SPZ1237 |
| Zetor |
| 84013902, TLP1250 |
