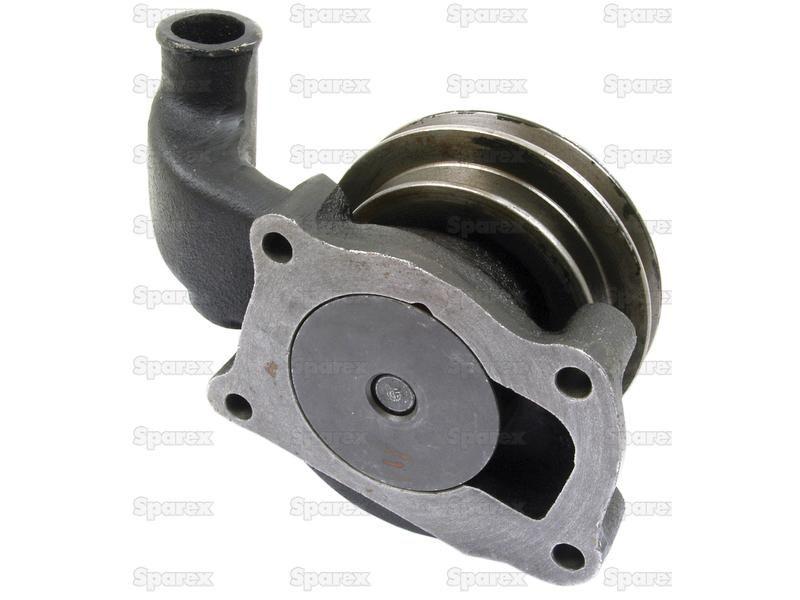

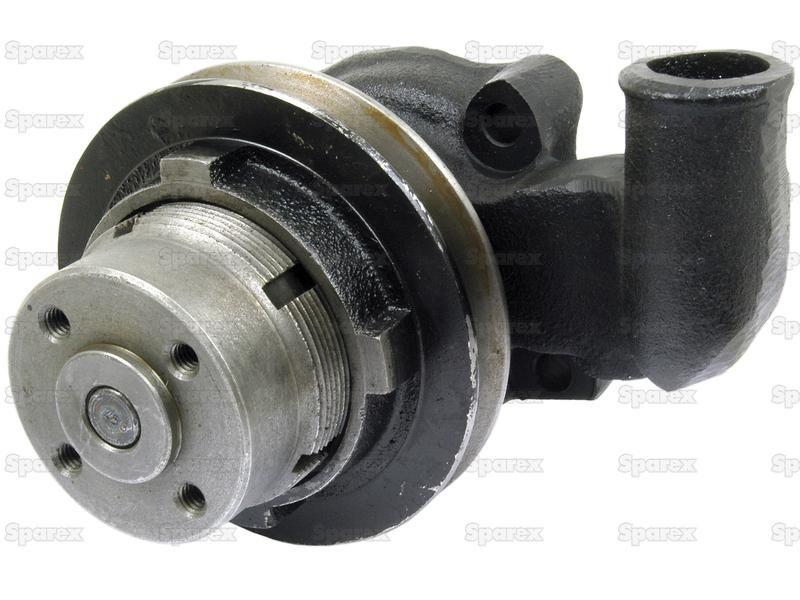

Water Pump Assembly (Supplied with Pulley) for Case IH B414 (B Series)
Part Number: S.60330Categories: Engine Fuel and Filters
Part Number: S.60330
Grade: Replacement
Part Details
Water Pump Assembly (Supplied with Pulley) Grooves12mm Pulley for models with Dynamo/Generator
Technical Information
| Overall height (mm) | 100 |
| Pulley Ø (mm) | 110 |
| Notes | 12mm Pulley for models with Dynamo/Generator |
| Overall length (mm) | 145 |
| Overall width (mm) | 200 |
| Number of Hub Holes | 4 |
| PCD | 70 |
| Impeller Ø (mm) | 70 |
| Tariff Code | 8413308090 |
| Brand | Sparex |
| Pulley type | V-Style |
| Supplied with Pulley | Yes |
Manufacturer Part Numbers
| Case IH |
|---|
| 3065132R92, 3119778R1, 3119778R92, 703820R91, 703820R92, 703820R93, 703820R94, 703820R95, 703820R97, 9617020 |
| Ford New Holland |
| 3065132R92, 3119778R92, 703820R95, 703820R97 |
