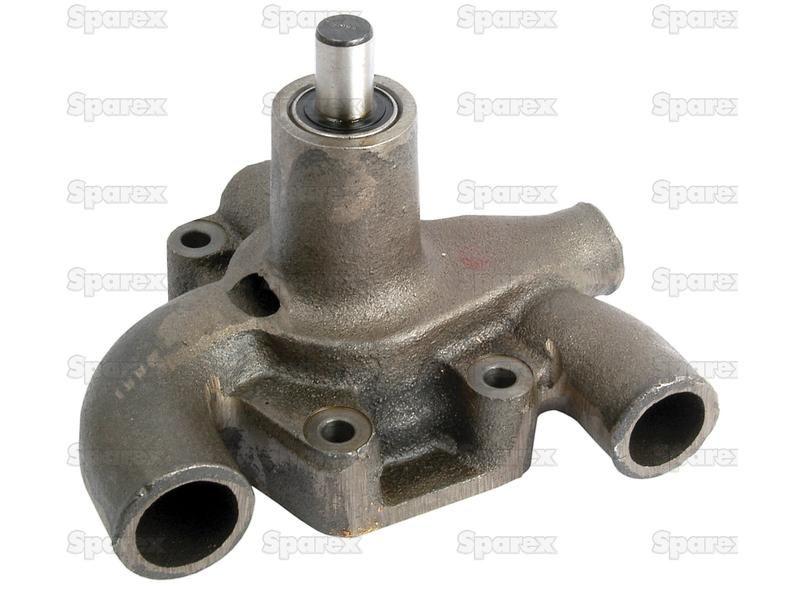

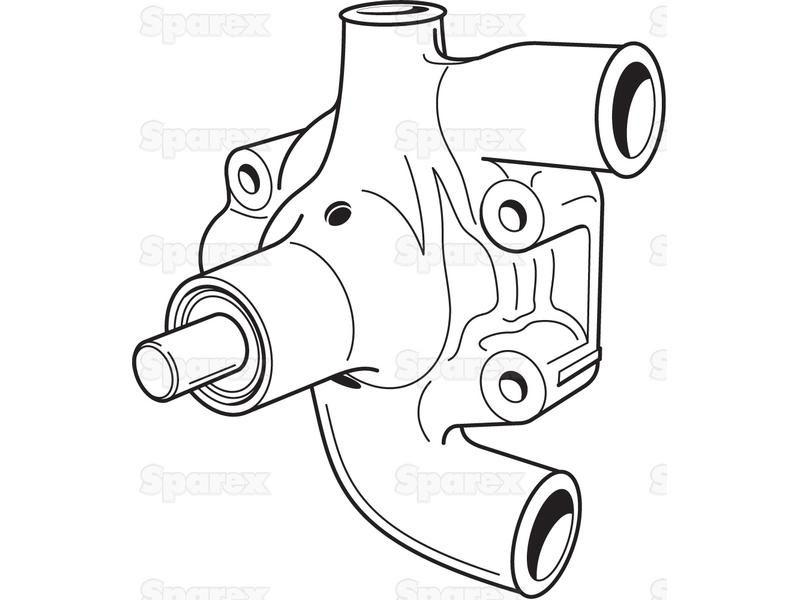

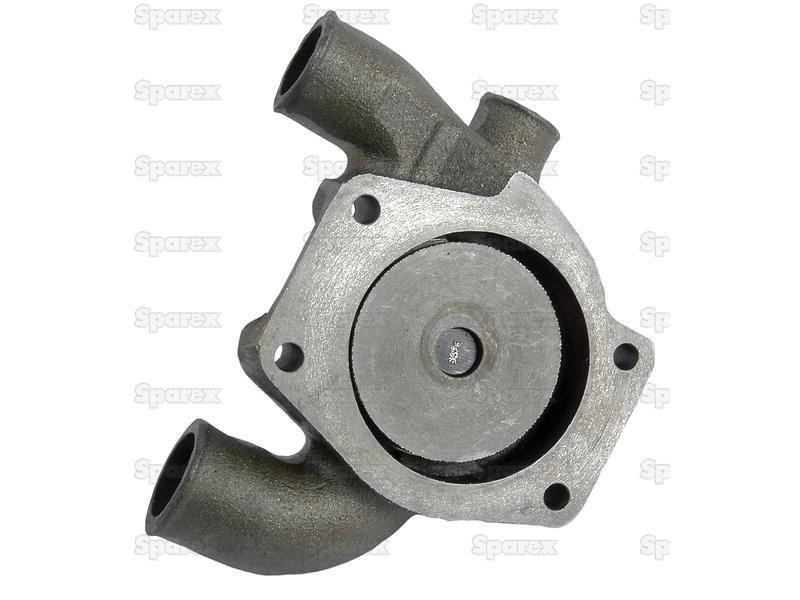

Water Pump Assembly for Massey Ferguson 550 (500 Series)
Part Number: S.40035Categories: Engine Fuel and Filters
Part Number: S.40035
Grade: Replacement
Part Details
Water Pump Assembly Grooves
Technical Information
| Pulley Ø (mm) | 109.5 |
| Overall height (mm) | 120 |
| Overall length (mm) | 140.5 |
| Number of Hub Holes | 4 |
| Related products | 40005,40006,40045 |
| Alternative to | 60149 |
| PCD | 63.5 |
| Impeller Ø (mm) | 69.8 |
| Tariff Code | 8413308090 |
| Supplied with Pulley | No |
| Perkins Build List | Perkins Build List: CB, CE08545, 08557, 13554, 13559, 13583, 13760, 16806, 13811, 20369, 20425, 20934, 20937, 21150, 21162, 21261, 21489, 21526, 21527, 21583, 21690, 21753, 21802, 21899, 21900, 21905, 21906, 22103, 22183, 22236, 22309, 22310, 22311, 22372, 22438, 22451, 22463, 22464, 22465, 22467 , 22488, 22490, 22493, 22495, 22521, 22522, 22526, 22528, 22545, 22576, 22609, 22651, 22652, 22657, 22665, 22680, 22697, 22706, 22717, 31029, 31075, 31089, 31106, 31115, 31116, 31121, 31133, 31161, 33512, 50066, 50126, 50127, 70024, 70056, 80027, 80035, 80079, 80141, 80184, CJ50027, 80070, CM33513, 50168, 50170(>75448L), CN31139, 80244 |
| Brand | Sparex |
| Pulley type | V-Style |
Manufacturer Part Numbers
| Case IH |
|---|
| 3641338R91, 3641823R92 |
| JCB |
| 02130111 |
| John Deere |
| AHM2098 |
| Landini |
| 141313403, 3641823M91, 41312154, 41312159, 41312494, 41312495, 747542M91, U5MW0023, U5MW0097 |
| Leyland |
| AHM2098 |
| Massey Ferguson |
| 1476192X1, 3641338M91, 3641338R91, 3641823M91, 3641823R92, 41312154, 41312159, 41312494, 41312495, 41312768, 41312783, 41312786, 41312967, 4224584M1, 731280M1, 747542M91, 747542R91, U5MW0023, U5MW0023R |
| Perkins |
| 41312055, 41312154, 41312159, 41312494, 41312495, 41312768, 41312783, 41312786, 41312967, U5MW0023 |
