Vacuum pump with long life vanes and water cooling system - WPT720MFR - PTO driven - 540 RPM for Battioni Pagani Pomp
Part Number: S.143425Categories: Muck Spreader
Part Number: S.143425
Grade: Replacement
Part Details
Vacuum pump with long life vanes and water cooling system - WPT720MFR - PTO driven - 540 RPM Rotation:Anti-clockwise rotation Capacity LPM: 14200Oil Tank Capacity (ltrs.): LMax. Working Pressure: 1.5 BarVacuum Max.: 0.9 BarSupplied with pressure relief valve and long life vanes

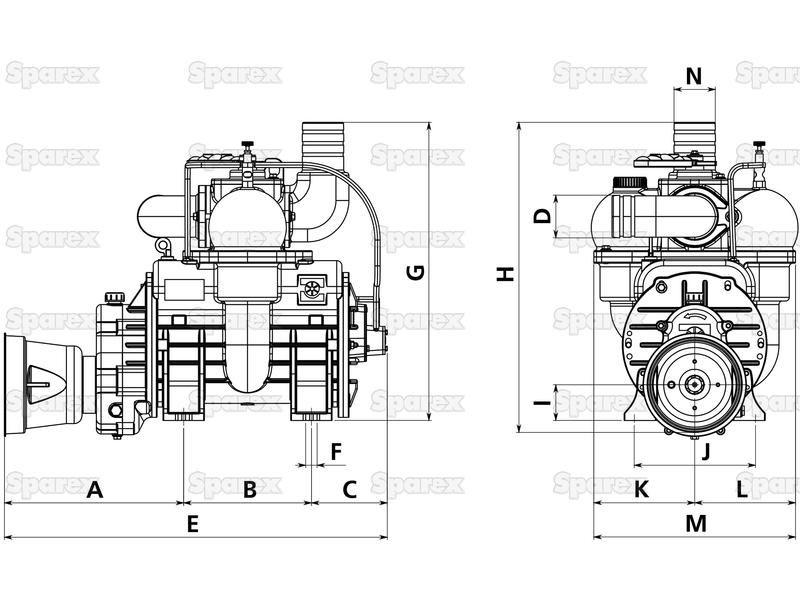

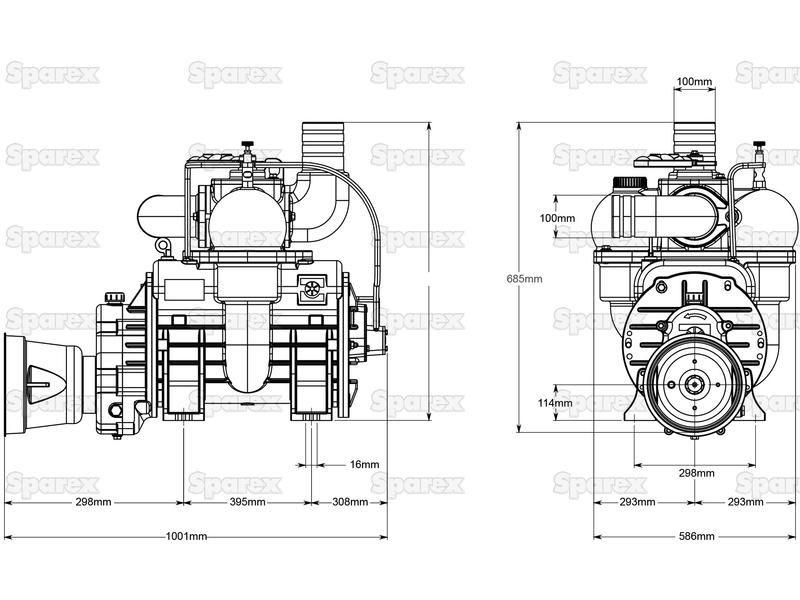

Technical Information
| A mm | 298 |
| B mm | 395 |
| Brand | Battioni |
| C mm | 308 |
| Capacity LPM | 14200 |
| D mm | 100 |
| Drive Type | PTO driven |
| E mm | 1001 |
| F mm | 16 |
| H mm | 685 |
| Height mm | 685 |
| I mm | 114 |
| J mm | 298 |
| K mm | 293 |
| L mm | 293 |
| Length mm | 1001 |
| M mm | 586 |
| Maximum RPM | 540 |
| Maximum Working Pressure | 1.5 Bar |
| Model | WPT720MFR |
| N mm | 100 |
| Notes | Supplied with pressure relief valve and long life vanes |
| Power Absorption Max. Vacuum kw | 18 |
| Related Products | 101971, 59489, 72201, 79297 |
| Rotation | Anti-clockwise rotation |
| Shaft | 1 3/8 - 6 splines |
| Tariff Code | 8414102530 |
| Vacuum Max. Hg | 0.9 Bar |
| Width mm | 586 |
Models
| Battioni Pagani Pomp |
|---|
| WPT720MFR |
Manufacturer Part Numbers
| Battioni Pagani Pomp |
|---|
| 9121200145 |
