Vacuum pump with double tank connection - MEC8000MDU - PTO driven - 540 RPM for Battioni Pagani Pomp
Part Number: S.143455Categories: Muck Spreader
Part Number: S.143455
Grade: Replacement
Part Details
Vacuum pump with double tank connection - MEC8000MDU - PTO driven - 540 RPM Rotation:Anti-clockwise rotation Capacity LPM: 8100Oil Tank Capacity (ltrs.): LMax. Working Pressure: 1.5 BarVacuum Max.: 0.94 Bar

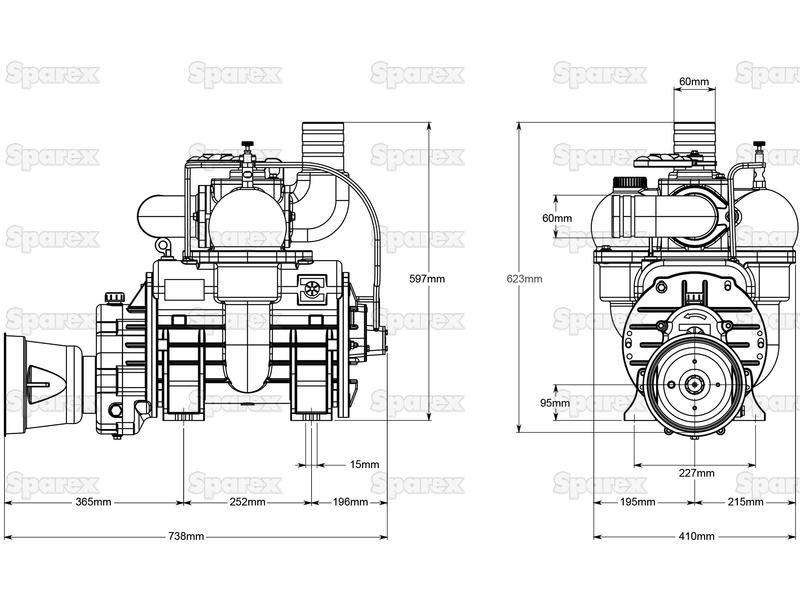

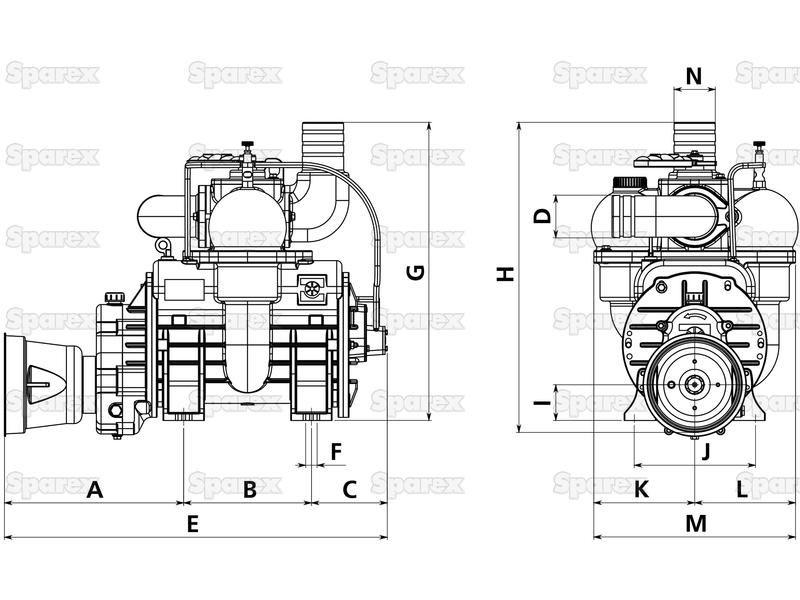

Technical Information
| A mm | 365 |
| B mm | 252 |
| Brand | Battioni |
| C mm | 196 |
| Capacity LPM | 8100 |
| D mm | 60 |
| Drive Type | PTO driven |
| E mm | 738 |
| F mm | 15 |
| G mm | 597 |
| H mm | 623 |
| Height mm | 623 |
| I mm | 95 |
| J mm | 227 |
| K mm | 195 |
| L mm | 215 |
| Length mm | 738 |
| M mm | 410 |
| Maximum RPM | 540 |
| Maximum Working Pressure | 1.5 Bar |
| Model | MEC8000MDU |
| N mm | 60 |
| Power Absorption Max. Pressure kw | 27 |
| Power Absorption Max. Vacuum kw | 16 |
| Related Products | 101971, 59488, 79297 |
| Rotation | Anti-clockwise rotation |
| Shaft | 1 3/8 - 6 splines |
| Tariff Code | 8414102530 |
| Vacuum Max. Hg | 0.94 Bar |
| Width mm | 410 |
Models
| Battioni Pagani Pomp |
|---|
| MEC8000MDU |
Manufacturer Part Numbers
| Battioni Pagani Pomp |
|---|
| 9000700021 |
