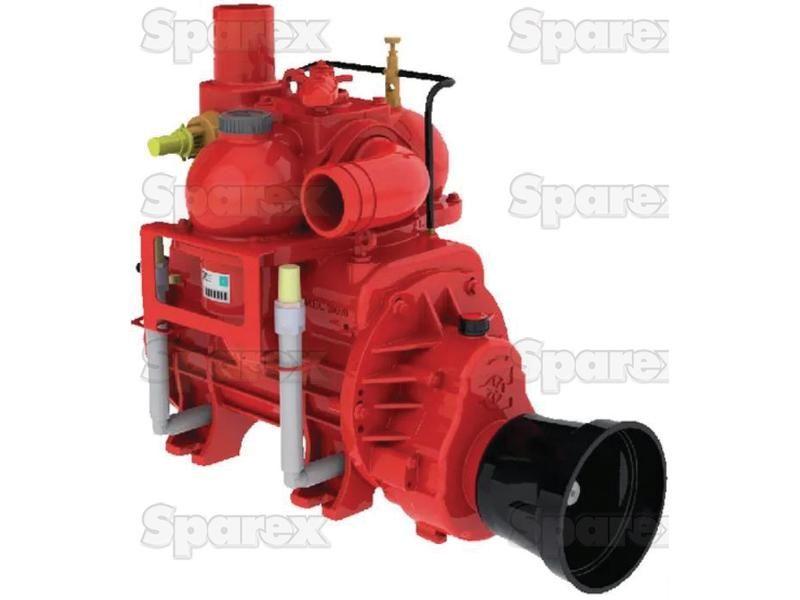

Vacuum pump with Ballast - MEC13500AB - PTO driven - 540 RPM for Battioni Pagani Pomp

Part Number: S.143423Categories: Muck Spreader
Vacuum pump with Ballast - MEC13500AB - PTO driven - 540 RPM for Battioni Pagani Pomp
Vacuum pump with Ballast - MEC13500AB - PTO driven - 540 RPM for Battioni Pagani Pomp
Vacuum pump with Ballast - MEC13500AB - PTO driven - 540 RPM for Battioni Pagani Pomp

Part Number: S.143423

Grade: Replacement

Part Details

Vacuum pump with Ballast - MEC13500AB - PTO driven - 540 RPM Rotation:Clockwise rotation Capacity LPM: 13845Oil Tank Capacity (ltrs.): 3.5LMax. Working Pressure: 1.5 BarVacuum Max.: 0.95 Bar

Technical Information

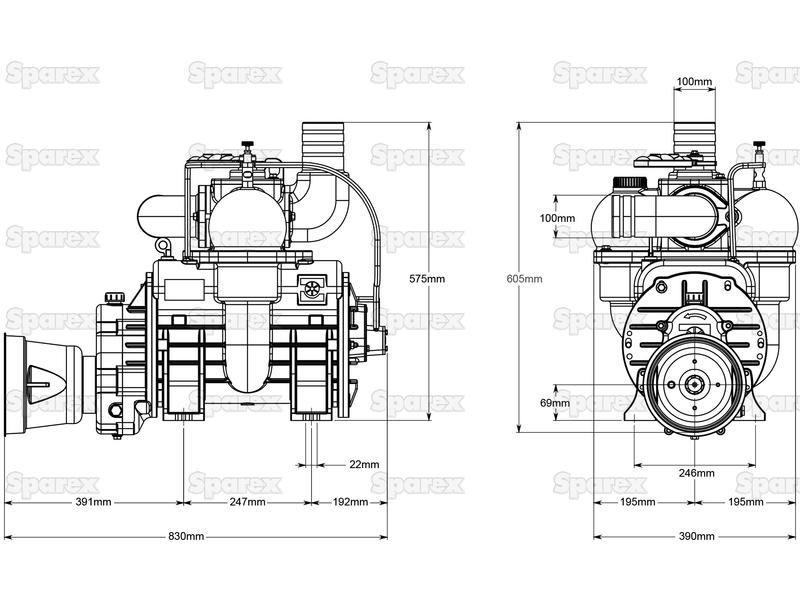

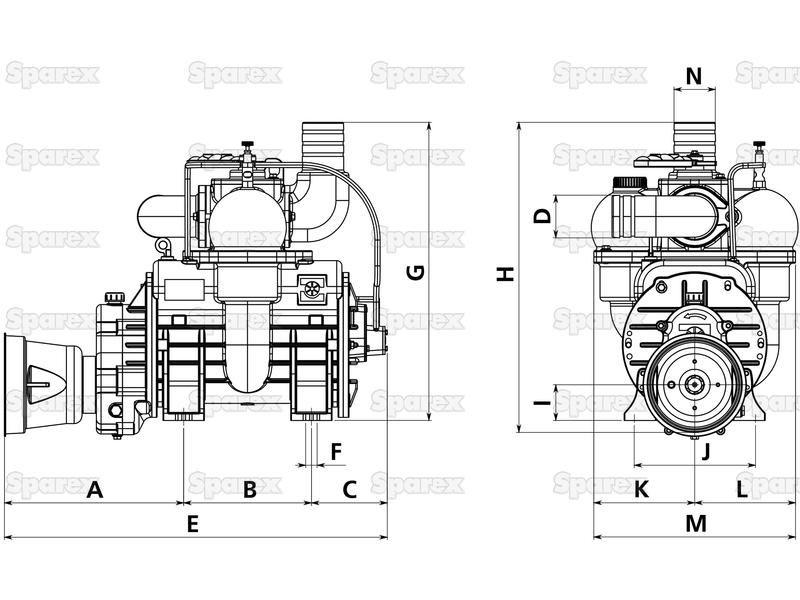

A mm 391
B mm 247
Brand Battioni
C mm 192
Capacity LPM 13845
D mm 100
Drive Type PTO driven
E mm 830
F mm 22
G mm 575
H mm 605
Height mm 605
I mm 69
J mm 246
K mm 195
L mm 195
Length mm 830
M mm 390
Maximum RPM 540
Maximum Working Pressure 1.5 Bar
Model MEC13500AB
N mm 100
Oil Tank Capacity ltr 3.5
P mm 100
Power Absorption Max. Pressure kw 44
Power Absorption Max. Vacuum kw 25
Related Products 101971, 59489, 79297, 143449, 143452, 143466
Rotation Clockwise rotation
Shaft 1 3/8 - 6 splines
Tariff Code 8414102530
Vacuum Max. Hg 0.95 Bar
Width mm 390

Models

Battioni Pagani Pomp
MEC13500AB

Manufacturer Part Numbers

Battioni Pagani Pomp
9003800078
