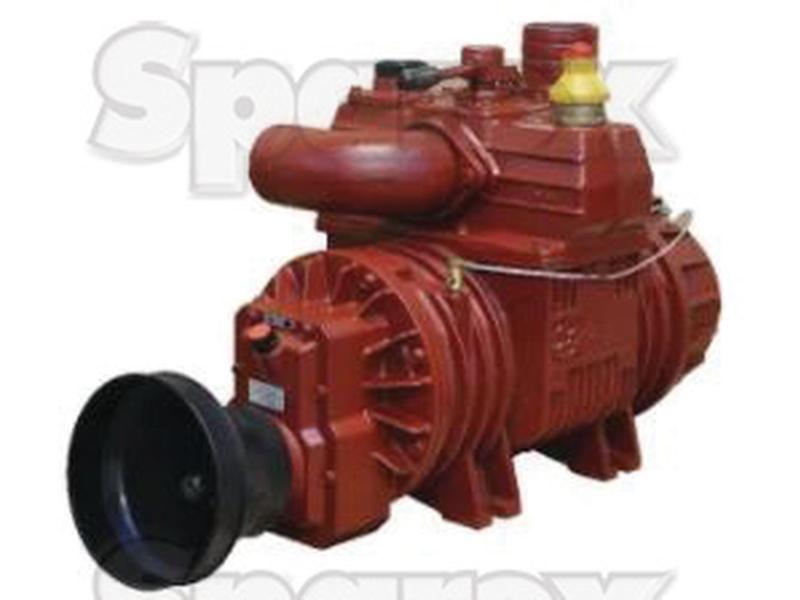

Vacuum pump - STAR84MA - PTO driven - 540 RPM for Battioni Pagani Pomp

Part Number: S.143436Categories: Muck Spreader
Vacuum pump - STAR84MA - PTO driven - 540 RPM for Battioni Pagani Pomp
Vacuum pump - STAR84MA - PTO driven - 540 RPM for Battioni Pagani Pomp
Vacuum pump - STAR84MA - PTO driven - 540 RPM for Battioni Pagani Pomp

Part Number: S.143436

Grade: Replacement

Part Details

Vacuum pump - STAR84MA - PTO driven - 540 RPM Rotation:Anti-clockwise rotation Lubrication:Automatic lubricationCapacity LPM: 14800Oil Tank Capacity (ltrs.): LMax. Working Pressure: 1.5 BarVacuum Max.: 0.9 Bar

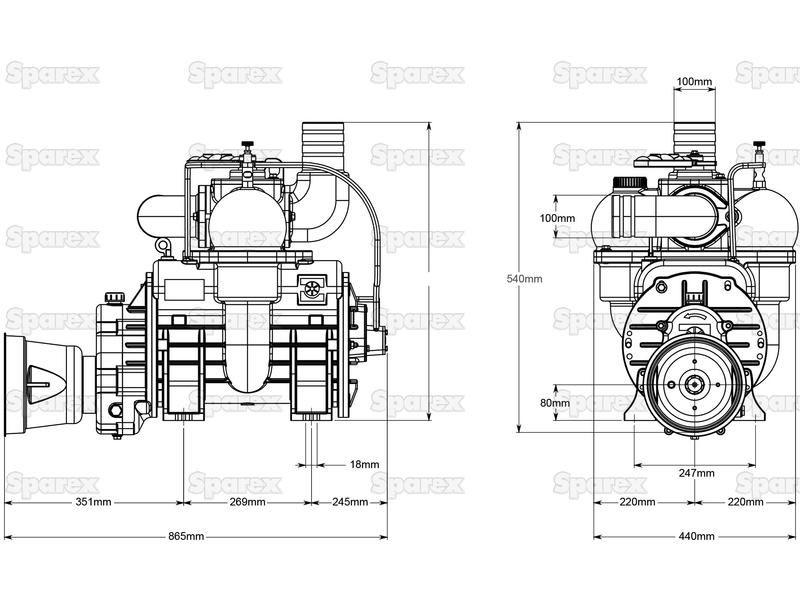

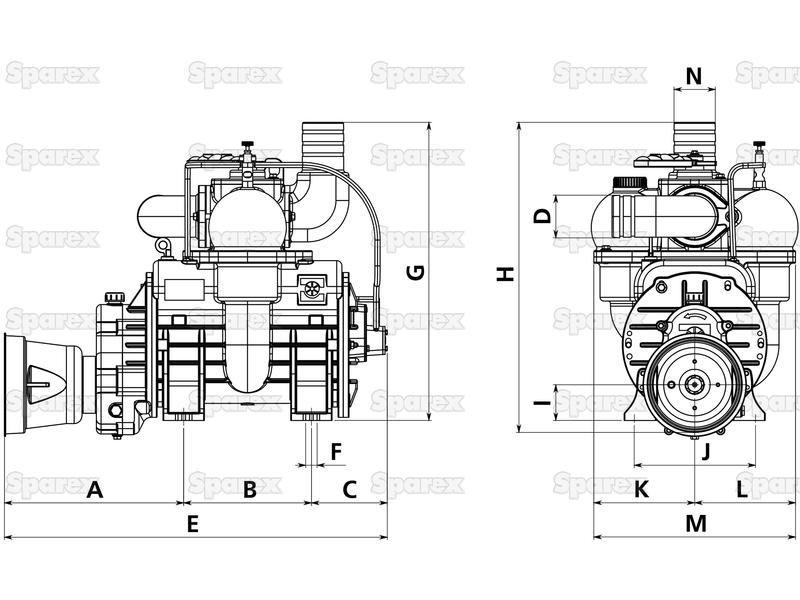

Technical Information

A mm 351
B mm 269
Brand Battioni
C mm 245
Capacity LPM 14800
D mm 100
Drive Type PTO driven
E mm 865
F mm 18
H mm 540
Height mm 540
I mm 80
J mm 247
K mm 220
L mm 220
Length mm 865
M mm 440
Maximum RPM 540
Maximum Working Pressure 1.5 Bar
Model STAR84MA
N mm 100
Power Absorption Max. Pressure kw 37
Power Absorption Max. Vacuum kw 31
Related Products 101971, 79297, 143472
Rotation Anti-clockwise rotation
Shaft 1 3/8 - 6 splines
Tariff Code 8414102530
Vacuum Max. Hg 0.9 Bar
Width mm 440

Models

Battioni Pagani Pomp
STAR84MA

Manufacturer Part Numbers

Battioni Pagani Pomp
9731000082
