Vacuum pump - STAR60M - PTO driven - 540 RPM for Battioni Pagani Pomp

Part Number: S.143429Categories: Muck Spreader
Vacuum pump - STAR60M - PTO driven - 540 RPM for Battioni Pagani Pomp
Vacuum pump - STAR60M - PTO driven - 540 RPM for Battioni Pagani Pomp
Vacuum pump - STAR60M - PTO driven - 540 RPM for Battioni Pagani Pomp

Part Number: S.143429

Grade: Replacement

Part Details

Vacuum pump - STAR60M - PTO driven - 540 RPM Rotation:Anti-clockwise rotation Lubrication:Manual lubricationCapacity LPM: 10800Oil Tank Capacity (ltrs.): LMax. Working Pressure: 1.5 BarVacuum Max.: 0.9 Bar

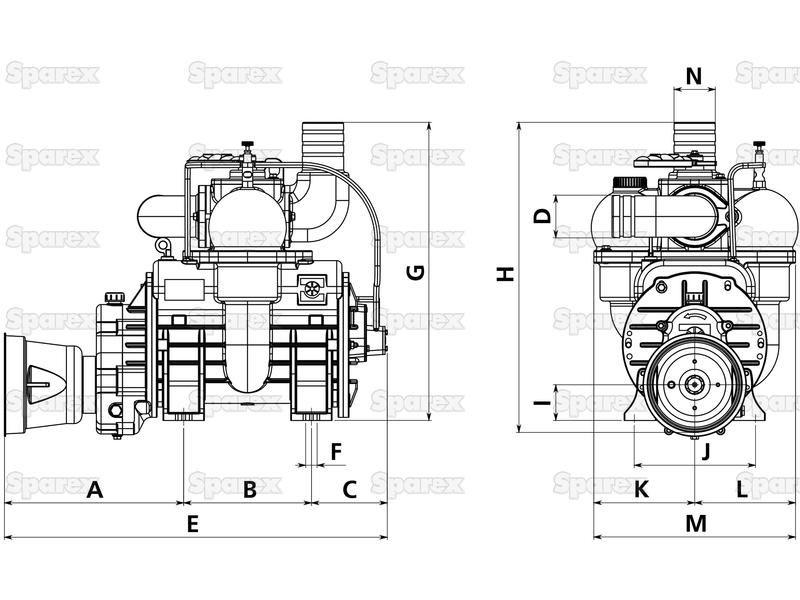

Technical Information

A mm 286
B mm 245
Brand Battioni
C mm 204
Capacity LPM 10800
D mm 80
Drive Type PTO driven
E mm 735
F mm 18
H mm 540
Height mm 540
I mm 80
J mm 247
K mm 220
L mm 220
Length mm 735
M mm 440
Maximum RPM 540
Maximum Working Pressure 1.5 Bar
Model STAR60M
N mm 80
Power Absorption Max. Pressure kw 30
Power Absorption Max. Vacuum kw 26
Related Products 101971, 59489, 72201, 79297
Rotation Anti-clockwise rotation
Shaft 1 3/8 - 6 splines
Tariff Code 8414102530
Vacuum Max. Hg 0.9 Bar
Width mm 440

Models

Battioni Pagani Pomp
STAR60M

Manufacturer Part Numbers

Battioni Pagani Pomp
9730800001
