Vacuum pump - MEC9000A - PTO driven - 540 RPM for Battioni Pagani Pomp

Part Number: S.143451Categories: Muck Spreader
Vacuum pump - MEC9000A - PTO driven - 540 RPM for Battioni Pagani Pomp
Vacuum pump - MEC9000A - PTO driven - 540 RPM for Battioni Pagani Pomp
Vacuum pump - MEC9000A - PTO driven - 540 RPM for Battioni Pagani Pomp

Part Number: S.143451

Grade: Replacement

Part Details

Vacuum pump - MEC9000A - PTO driven - 540 RPM Rotation:Clockwise rotation Lubrication:Automatic lubricationCapacity LPM: 9030Oil Tank Capacity (ltrs.): 2.5LMax. Working Pressure: 1.5 BarVacuum Max.: 0.95 Bar

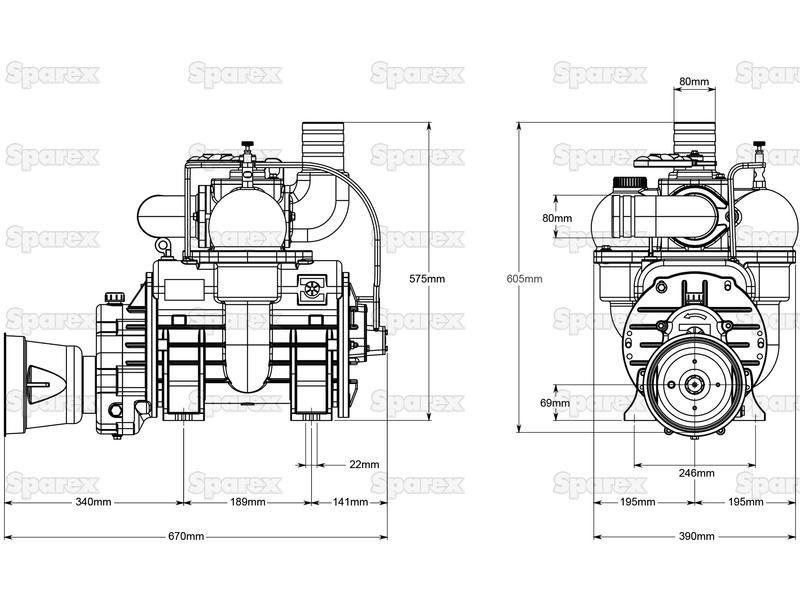

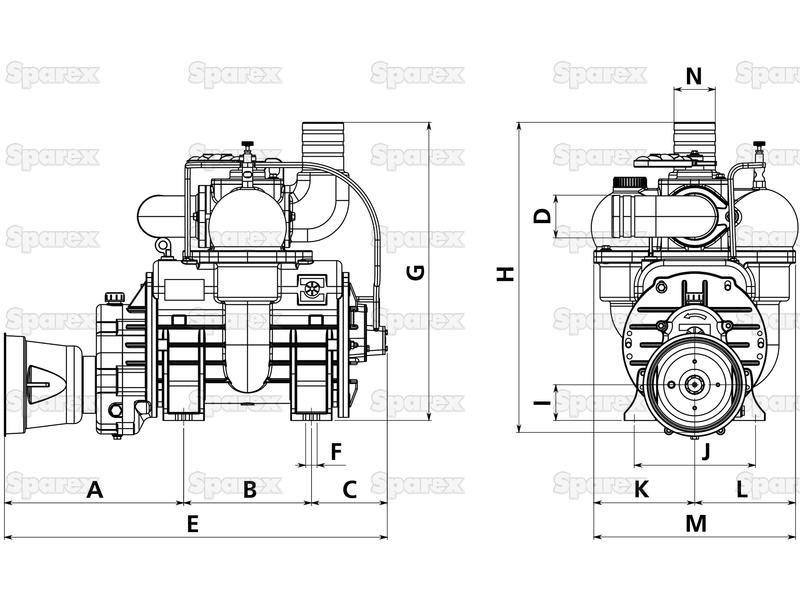

Technical Information

A mm 340
B mm 189
Brand Battioni
C mm 141
Capacity LPM 9030
D mm 80
Drive Type PTO driven
E mm 670
F mm 22
G mm 575
H mm 605
Height mm 605
I mm 69
J mm 246
K mm 195
L mm 195
Length mm 670
M mm 390
Maximum RPM 540
Maximum Working Pressure 1.5 Bar
Model MEC9000A
N mm 80
Oil Tank Capacity ltr 2.5
P mm 80
Power Absorption Max. Pressure kw 36
Power Absorption Max. Vacuum kw 17
Related Products 101971, 59489, 79297, 143449, 143466
Rotation Clockwise rotation
Shaft 1 3/8 - 6 splines
Tariff Code 8414102530
Vacuum Max. Hg 0.95 Bar
Width mm 390

Models

Battioni Pagani Pomp
MEC9000A

Manufacturer Part Numbers

Battioni Pagani Pomp
9003300051
