Vacuum pump - MEC8000H - Hydraulic driven - 1000 RPM for Battioni Pagani Pomp
Part Number: S.149222Categories: Muck Spreader
Part Number: S.149222
Grade: Replacement
Part Details
Vacuum pump - MEC8000H - Hydraulic driven - 1000 RPM Rotation:Clockwise rotation Lubrication:Manual lubricationCapacity LPM: 8100Oil Tank Capacity (ltrs.): 3.8LMax. Working Pressure: 1.5 BarVacuum Max.: 0.9 BarSupplied with hydraulic motorNot supplied with 1 1/2" Pressure Relief Valve

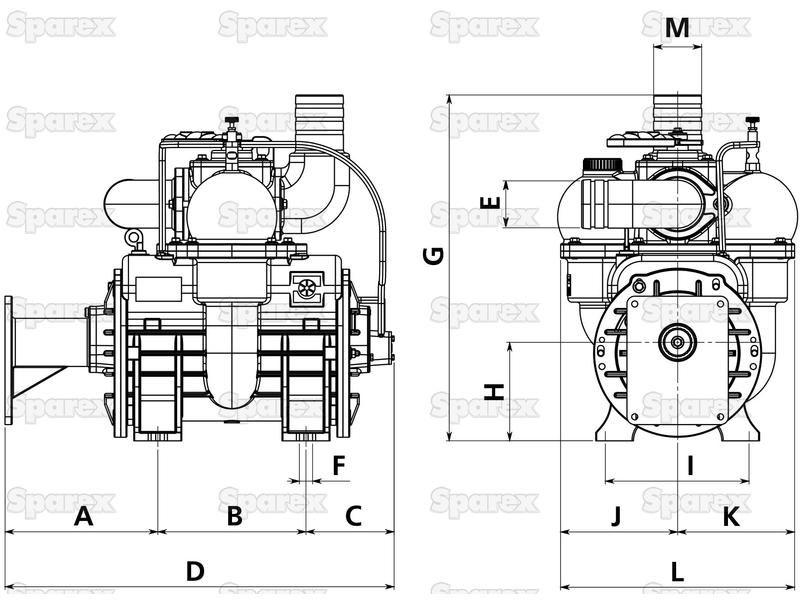

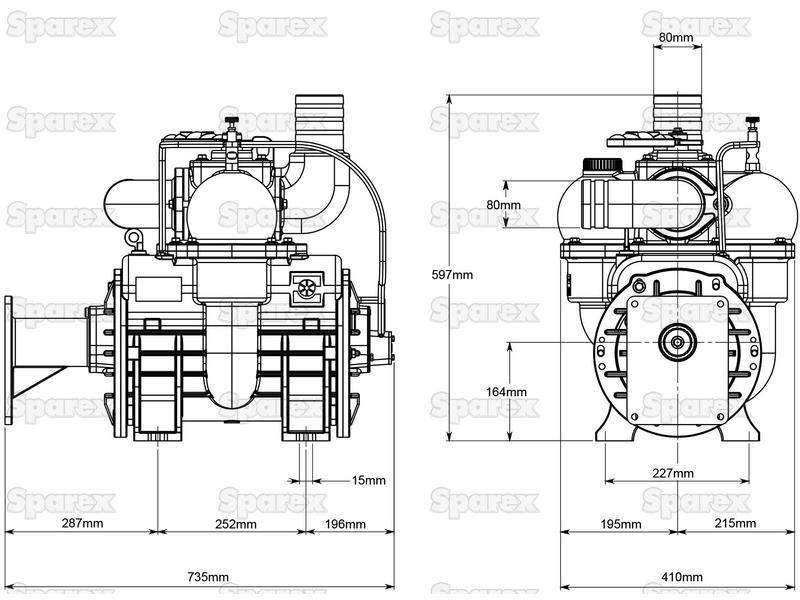

Technical Information
| A mm | 287 |
| B mm | 252 |
| Brand | Battioni |
| C mm | 196 |
| Capacity LPM | 8100 |
| D mm | 735 |
| Drive Type | Hydraulic driven |
| E mm | 80 |
| F mm | 15 |
| G mm | 597 |
| H mm | 164 |
| Height mm | 597 |
| I mm | 227 |
| J mm | 195 |
| K mm | 215 |
| L mm | 410 |
| Length mm | 735 |
| M mm | 80 |
| Maximum RPM | 1000 |
| Maximum Working Pressure | 1.5 Bar |
| Model | MEC8000H |
| Notes | Supplied with hydraulic motor - Not supplied with 1 1/2'' Pressure Relief Valve |
| Oil Tank Capacity ltr | 3.8 |
| P mm | 80 |
| Power Absorption Max. Pressure kw | 22 |
| Power Absorption Max. Vacuum kw | 15 |
| Related Products | 101829, 101828, 101841, 101842, 101843, 101844, 101858, 101859, 101863, 101864, 101865, 101866, 101870, 101872, 101873, 101875, 101878, 101879, 101885, 101887, 101889, 101892, 101966, 101967, 101971, 102524, 59478, 59488, 72200, 79297, 143466 |
| Rotation | Clockwise rotation |
| Supplied with | Supplied with hydraulic motor S.72200 |
| Tariff Code | 8414102530 |
| Vacuum Max. Hg | 0.9 Bar |
| Width mm | 410 |
Models
| Battioni Pagani Pomp |
|---|
| MEC8000H |
Manufacturer Part Numbers
| Battioni Pagani Pomp |
|---|
| 9360754001 |
