Vacuum pump - MEC8000A - PTO driven - 540 RPM for Battioni Pagani Pomp

Part Number: S.143424Categories: Muck Spreader
Vacuum pump - MEC8000A - PTO driven - 540 RPM for Battioni Pagani Pomp
Vacuum pump - MEC8000A - PTO driven - 540 RPM for Battioni Pagani Pomp
Vacuum pump - MEC8000A - PTO driven - 540 RPM for Battioni Pagani Pomp

Part Number: S.143424

Grade: Replacement

Part Details

Vacuum pump - MEC8000A - PTO driven - 540 RPM Rotation:Clockwise rotation Lubrication:Automatic lubricationCapacity LPM: 8100Oil Tank Capacity (ltrs.): 3.8LMax. Working Pressure: 1.5 BarVacuum Max.: 0.9 BarNot supplied with 1 1/2" Pressure Relief Valve

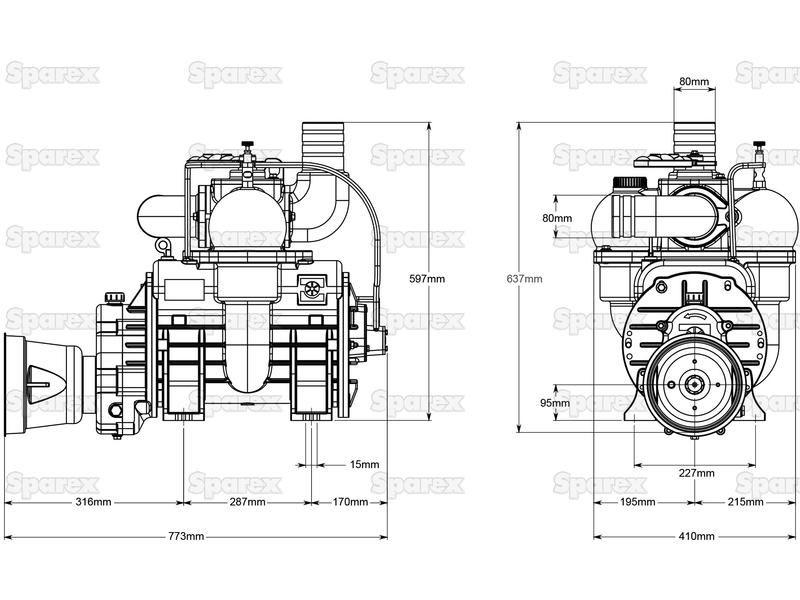

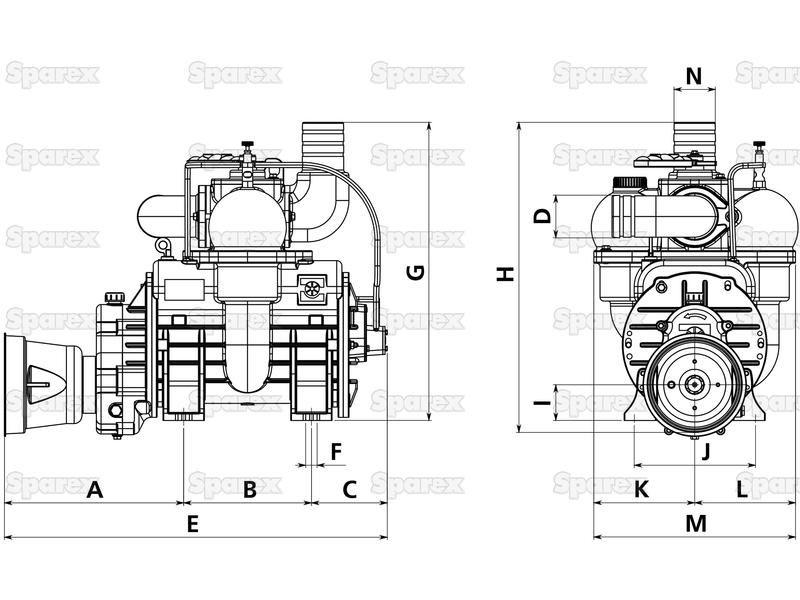

Technical Information

A mm 316
B mm 287
Brand Battioni
C mm 170
Capacity LPM 8100
D mm 80
Drive Type PTO driven
E mm 773
F mm 15
G mm 597
H mm 637
Height mm 637
I mm 95
J mm 227
K mm 195
L mm 215
Length mm 773
M mm 410
Maximum RPM 540
Maximum Working Pressure 1.5 Bar
Model MEC8000A
N mm 80
Notes Not supplied with 1 1/2'' Pressure Relief Valve
Oil Tank Capacity ltr 3.8
P mm 80
Power Absorption Max. Pressure kw 27
Power Absorption Max. Vacuum kw 16
Related Products 101971, 79297, 143466
Rotation Clockwise rotation
Shaft 1 3/8 - 6 splines
Supplied with Not supplied with pressure relief valve and long life vanes
Tariff Code 8414102530
Vacuum Max. Hg 0.9 Bar
Width mm 410

Models

Battioni Pagani Pomp
MEC8000A

Manufacturer Part Numbers

Battioni Pagani Pomp
9000700002
