Vacuum pump - MEC4000M - PTO driven - 540 RPM for Battioni Pagani Pomp
Part Number: S.143428Categories: Muck Spreader
Part Number: S.143428
Grade: Replacement
Part Details
Vacuum pump - MEC4000M - PTO driven - 540 RPM Rotation:Anti-clockwise rotation Lubrication:Manual lubricationCapacity LPM: 4350Oil Tank Capacity (ltrs.): LMax. Working Pressure: 1.5 BarVacuum Max.: 0.9 Bar
Technical Information

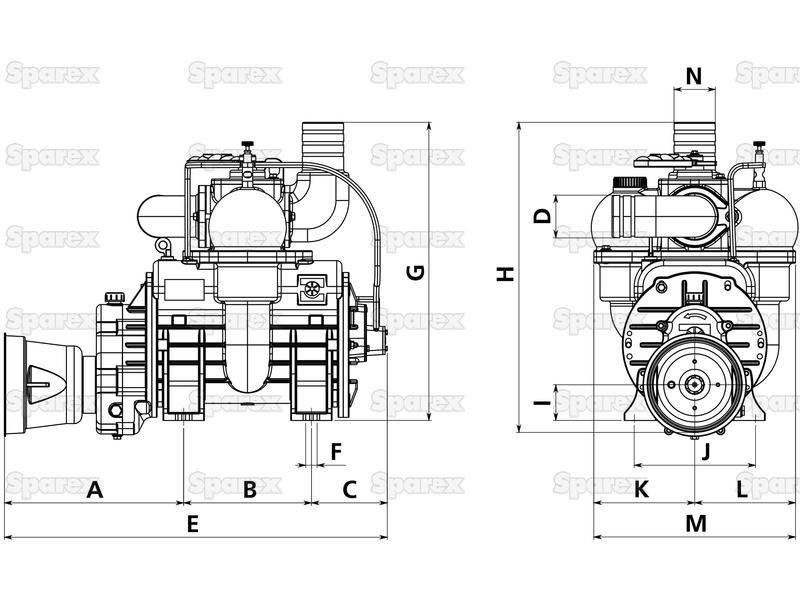

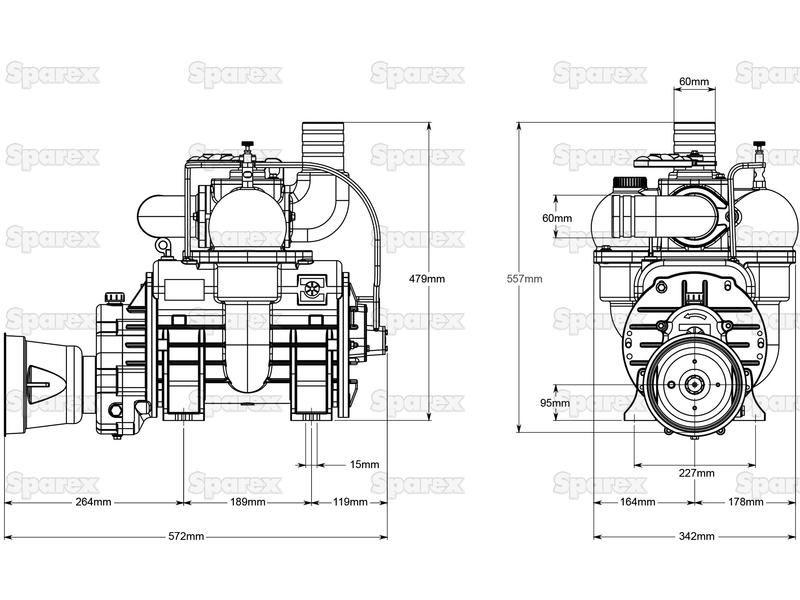

| A mm | 264 |
| B mm | 189 |
| Brand | Battioni |
| C mm | 119 |
| Capacity LPM | 4350 |
| D mm | 60 |
| Drive Type | PTO driven |
| E mm | 572 |
| F mm | 15 |
| G mm | 479 |
| H mm | 557 |
| Height mm | 557 |
| I mm | 95 |
| J mm | 227 |
| K mm | 164 |
| L mm | 178 |
| Length mm | 572 |
| M mm | 342 |
| Maximum RPM | 540 |
| Maximum Working Pressure | 1.5 Bar |
| Model | MEC4000M |
| N mm | 60 |
| Power Absorption Max. Pressure kw | 16 |
| Power Absorption Max. Vacuum kw | 9 |
| Related Products | 101856, 101971, 102518, 102519, 59479, 79297 |
| Rotation | Anti-clockwise rotation |
| Shaft | 1 3/8 - 6 splines |
| Tariff Code | 8414102530 |
| Vacuum Max. Hg | 0.9 Bar |
| Width mm | 342 |
Models
| Battioni Pagani Pomp |
|---|
| MEC4000M |
Manufacturer Part Numbers
| Battioni Pagani Pomp |
|---|
| 9000400001 |
