Vacuum pump - MEC2000M - PTO driven - 540 RPM for Battioni Pagani Pomp

Part Number: S.143450Categories: Muck Spreader
Vacuum pump - MEC2000M - PTO driven - 540 RPM for Battioni Pagani Pomp
Vacuum pump - MEC2000M - PTO driven - 540 RPM for Battioni Pagani Pomp
Vacuum pump - MEC2000M - PTO driven - 540 RPM for Battioni Pagani Pomp

Part Number: S.143450

Grade: Replacement

Part Details

Vacuum pump - MEC2000M - PTO driven - 540 RPM Rotation:Anti-clockwise rotation Lubrication:Manual lubricationCapacity LPM: 2750Oil Tank Capacity (ltrs.): 3LMax. Working Pressure: 1.5 BarVacuum Max.: 0.9 Bar

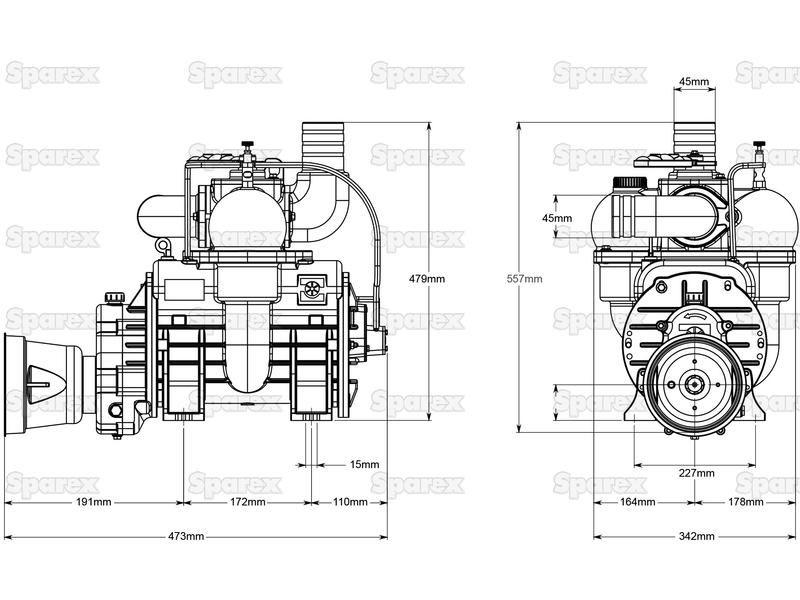

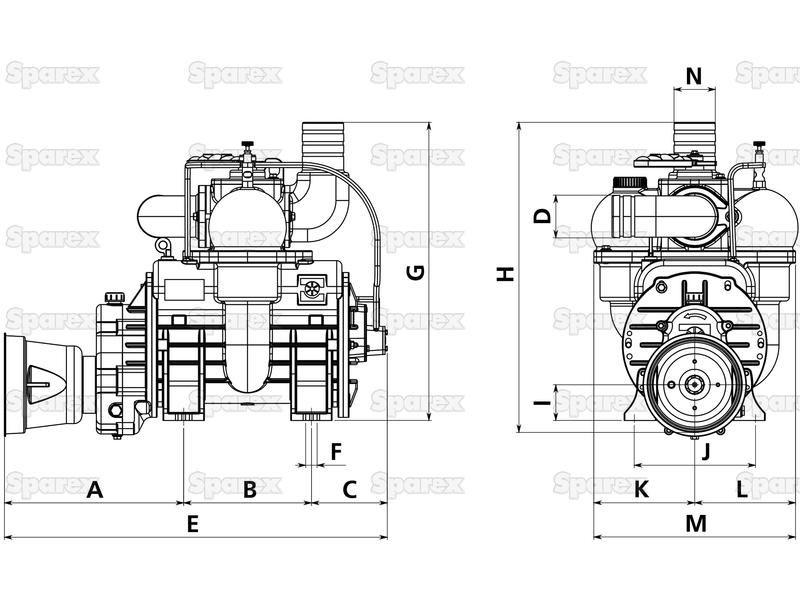

Technical Information

A mm 191
B mm 172
Brand Battioni
C mm 110
Capacity LPM 2750
D mm 45
Drive Type PTO driven
E mm 473
F mm 15
G mm 479
H mm 557
Height mm 557
J mm 227
K mm 164
L mm 178
Length mm 740
M mm 342
Maximum RPM 540
Maximum Working Pressure 1.5 Bar
Model MEC2000M
N mm 45
Oil Tank Capacity ltr 3
P mm 45
Power Absorption Max. Pressure kw 10
Power Absorption Max. Vacuum kw 5.5
Related Products 101856, 101957, 101971, 59479, 79297
Rotation Anti-clockwise rotation
Shaft 1 3/8 - 6 splines
Tariff Code 8414102530
Vacuum Max. Hg 0.9 Bar
Width mm 342

Models

Battioni Pagani Pomp
MEC2000M

Manufacturer Part Numbers

Battioni Pagani Pomp
9000200016
