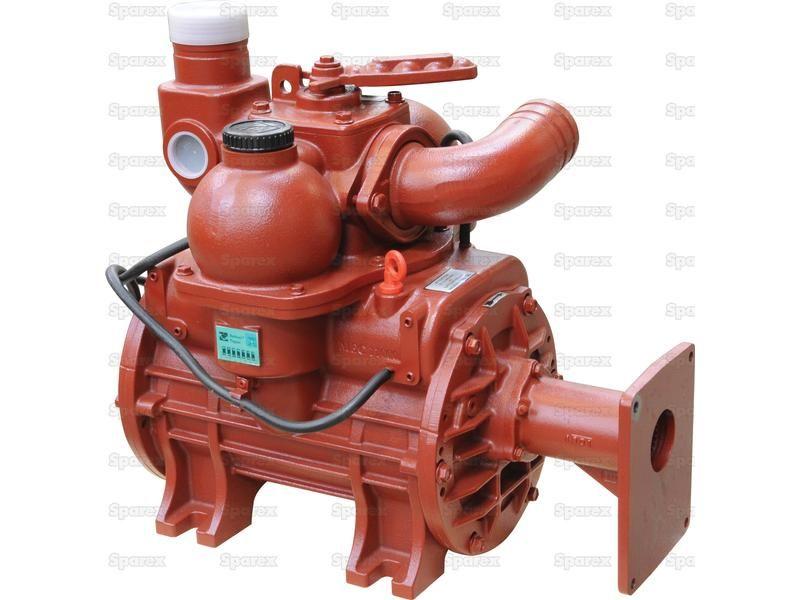

Vacuum pump - MEC13500H - Hydraulic driven - 1000 RPM for Battioni Pagani Pomp

Part Number: S.149225Categories: Muck Spreader
Vacuum pump - MEC13500H - Hydraulic driven - 1000 RPM for Battioni Pagani Pomp
Vacuum pump - MEC13500H - Hydraulic driven - 1000 RPM for Battioni Pagani Pomp
Vacuum pump - MEC13500H - Hydraulic driven - 1000 RPM for Battioni Pagani Pomp
Vacuum pump - MEC13500H - Hydraulic driven - 1000 RPM for Battioni Pagani Pomp

Part Number: S.149225

Grade: Replacement

Part Details

Vacuum pump - MEC13500H - Hydraulic driven - 1000 RPM Rotation:Clockwise rotation Lubrication:Manual lubricationCapacity LPM: 13845Oil Tank Capacity (ltrs.): 3.5LMax. Working Pressure: 1.5 barVacuum Max.: 0.95 BarSupplied with hydraulic motorNot supplied with 1 1/2" Pressure Relief Valve

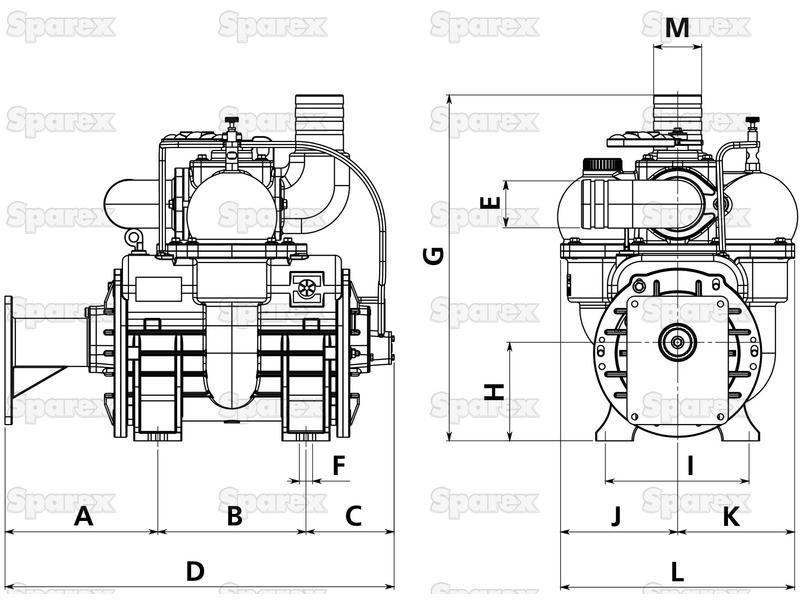

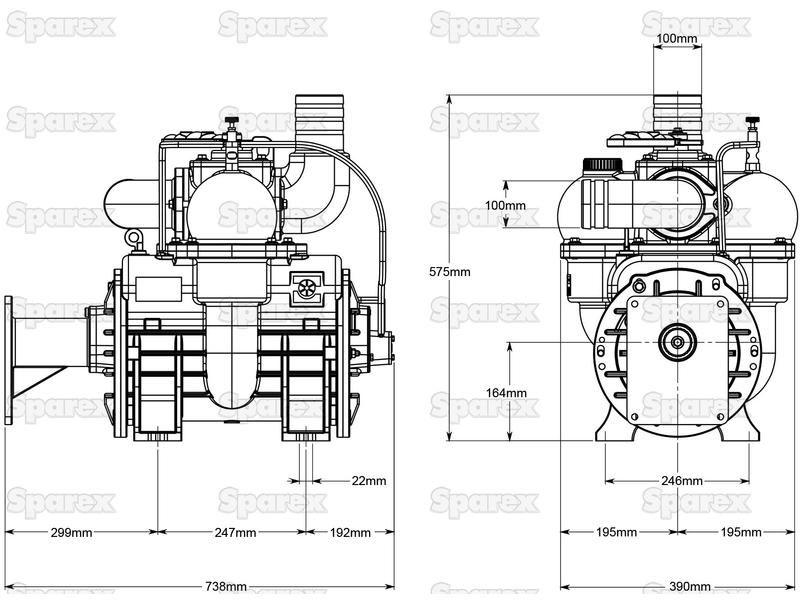

Technical Information

A mm 299
B mm 247
Brand Battioni
C mm 192
Capacity LPM 13845
D mm 738
Drive Type Hydraulic driven
E mm 100
F mm 22
G mm 575
H mm 164
Height mm 575
I mm 246
J mm 195
K mm 195
L mm 390
Length mm 738
M mm 100
Maximum RPM 1000
Maximum Working Pressure 1.5 bar
Model MEC13500H
Notes Supplied with hydraulic motor - Not supplied with 1 1/2'' Pressure Relief Valve
Oil Tank Capacity ltr 3.5
P mm 100
Power Absorption Max. Pressure kw 36
Power Absorption Max. Vacuum kw 24
Related Products 101878, 101885, 101889, 101892, 101898, 101900, 101901, 101911, 101912, 101913, 101915, 101916, 101919, 101923, 101925, 101927, 101928, 101929, 101931, 101933, 101934, 101936, 101937, 101940, 101941, 101948, 101949, 101951, 101971, 102528, 59478, 59489, 72201, 79297, 118181, 143449, 143466
Rotation Clockwise rotation
Tariff Code 8414102530
Vacuum Max. Hg 0.95 Bar
Width mm 390

Models

Battioni Pagani Pomp
MEC13500H

Manufacturer Part Numbers

Battioni Pagani Pomp
9363854074
