Vacuum pump - MEC11000H - Hydraulic driven - 1000 RPM for Battioni Pagani Pomp
Part Number: S.149224Categories: Muck Spreader
Part Number: S.149224
Grade: Replacement
Part Details
Vacuum pump - MEC11000H - Hydraulic driven - 1000 RPM Rotation:Clockwise rotation Lubrication:Manual lubricationCapacity LPM: 11137Oil Tank Capacity (ltrs.): 3LMax. Working Pressure: 1.5 barVacuum Max.: 0.95 BarSupplied with hydraulic motorNot supplied with 1 1/2" Pressure Relief Valve
Technical Information

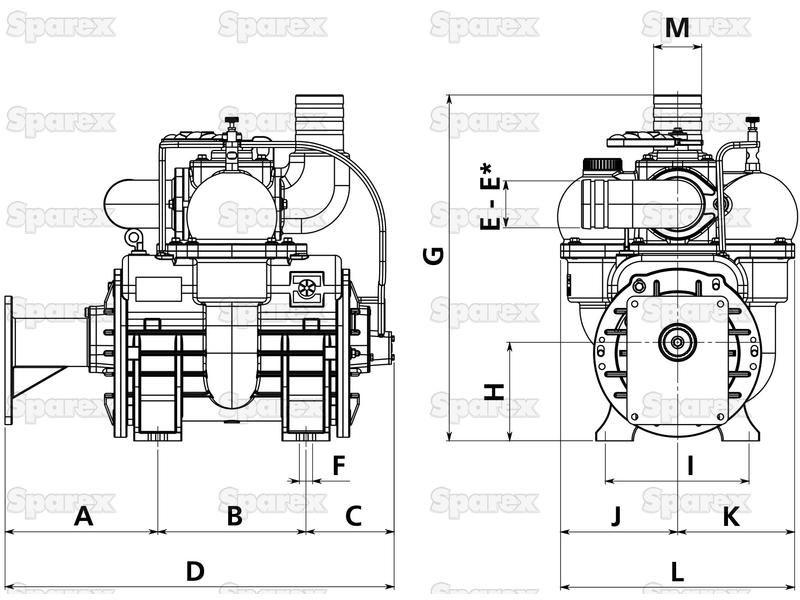

| A mm | 254 |
| B mm | 247 |
| Brand | Battioni |
| C mm | 147 |
| Capacity LPM | 11137 |
| D mm | 648 |
| Drive Type | Hydraulic driven |
| E mm | 80 |
| F mm | 22 |
| G mm | 575 |
| H mm | 164 |
| Height mm | 575 |
| I mm | 246 |
| J mm | 195 |
| K mm | 195 |
| L mm | 390 |
| Length mm | 648 |
| M mm | 648 |
| Maximum RPM | 1000 |
| Maximum Working Pressure | 1.5 bar |
| Model | MEC11000H |
| Notes | Supplied with hydraulic motor - Not supplied with 1 1/2'' Pressure Relief Valve |
| Oil Tank Capacity ltr | 3 |
| P mm | 80 |
| Power Absorption Max. Pressure kw | 30 |
| Power Absorption Max. Vacuum kw | 20 |

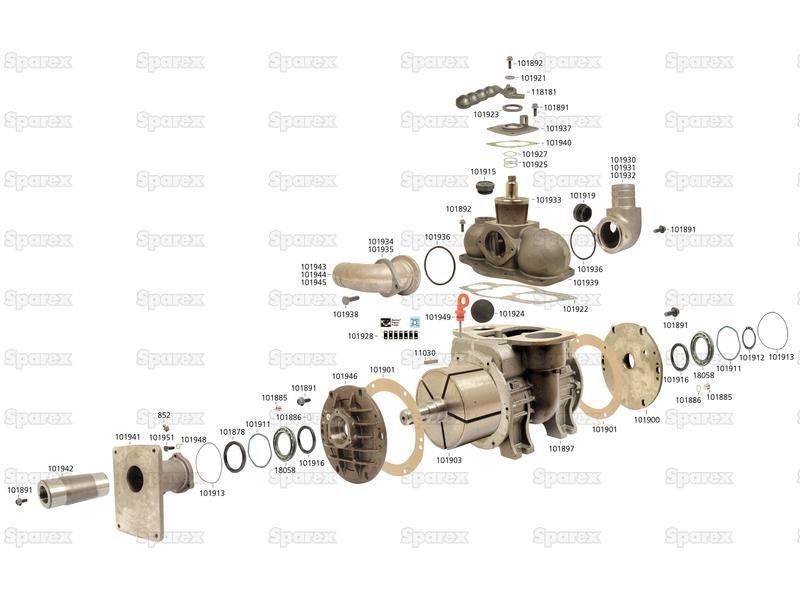

| Related Products | 101878, 101885, 101889, 101892, 101897, 101900, 101901, 101911, 101912, 101913, 101915, 101916, 101919, 101923, 101925, 101927, 101928, 101929, 101931, 101933, 101934, 101936, 101937, 101940, 101941, 101948, 101949, 101951, 101969, 101971, 102527, 59478, 59489, 72201, 79297, 118181, 143449, 143466 |
| Rotation | Clockwise rotation |
| Supplied with | Supplied with hydraulic motor S.72201 |
| Tariff Code | 8414102530 |
| Vacuum Max. Hg | 0.95 Bar |
| Width mm | 390 |
Models
| Battioni Pagani Pomp |
|---|
| MEC11000H |
Manufacturer Part Numbers
| Battioni Pagani Pomp |
|---|
| 9363754041 |
