Vacuum pump - MEC11000DLA - PTO driven - 1000 RPM for Battioni Pagani Pomp
Part Number: S.143446Categories: Muck Spreader
Part Number: S.143446
Grade: Replacement
Part Details
Vacuum pump - MEC11000DLA - PTO driven - 1000 RPM Rotation:Anti-clockwise rotation Lubrication:Automatic lubricationCapacity LPM: 11137Oil Tank Capacity (ltrs.): 3LMax. Working Pressure: 1.5 BarVacuum Max.: 0.95 Bar

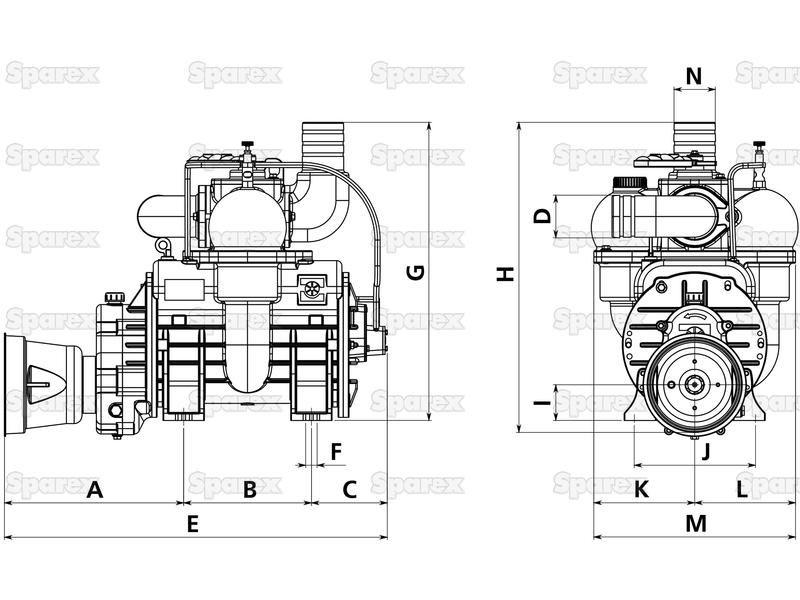

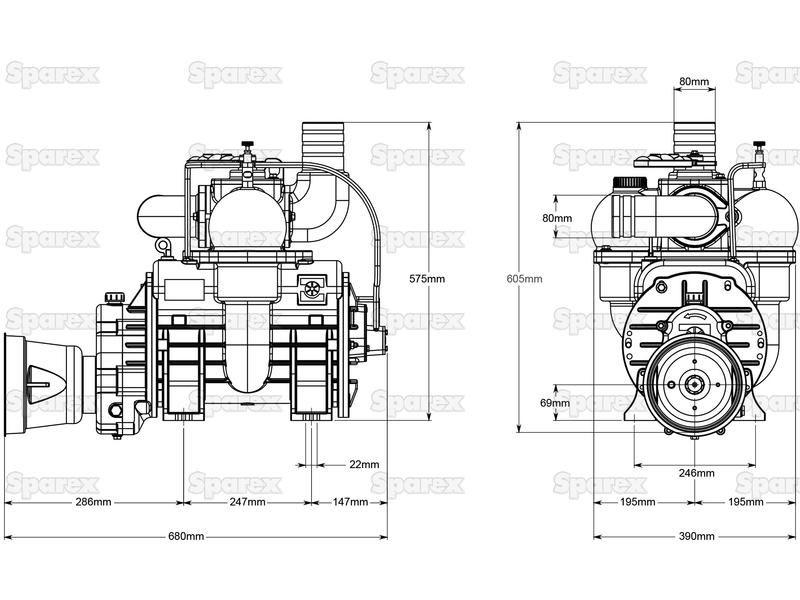

Technical Information
| A mm | 286 |
| B mm | 247 |
| Brand | Battioni |
| C mm | 147 |
| Capacity LPM | 11137 |
| D mm | 80 |
| Drive Type | PTO driven |
| E mm | 680 |
| F mm | 22 |
| G mm | 575 |
| H mm | 605 |
| Height mm | 605 |
| I mm | 164 |
| J mm | 246 |
| K mm | 195 |
| L mm | 195 |
| Length mm | 680 |
| M mm | 390 |
| Maximum RPM | 1000 |
| Maximum Working Pressure | 1.5 Bar |
| Model | MEC11000DLA |
| N mm | 80 |
| Oil Tank Capacity ltr | 3 |
| P mm | 80 |
| Power Absorption Max. Pressure kw | 30 |
| Power Absorption Max. Vacuum kw | 20 |
| Related Products | 101971, 59489, 79297, 143449 |
| Rotation | Anti-clockwise rotation |
| Shaft | 1 3/8 - 6 splines |
| Tariff Code | 8414102530 |
| Vacuum Max. Hg | 0.95 Bar |
| Width mm | 390 |
Models
| Battioni Pagani Pomp |
|---|
| MEC11000DLA |
Manufacturer Part Numbers
| Battioni Pagani Pomp |
|---|
| 9013727051 |
