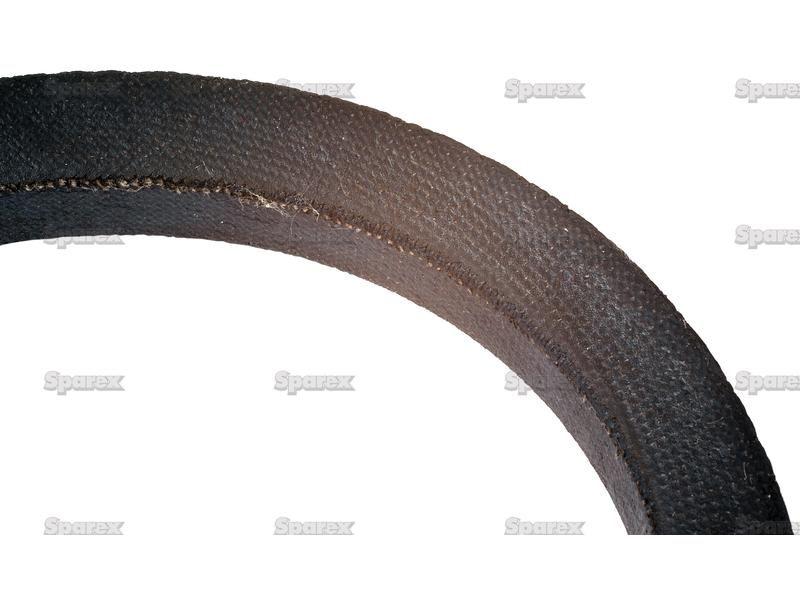

V Belt - B Section - Belt No. B35 for Allis Chalmers CA
Part Number: S.18826Categories: Engine Fuel and Filters
Part Number: S.18826
Grade: Replacement
Part Details
V Belt - B Section - Belt No. B35
Technical Information
| Depth (mm) | 11 |
| Related products | 14683 |
| Width (mm) | 17 |

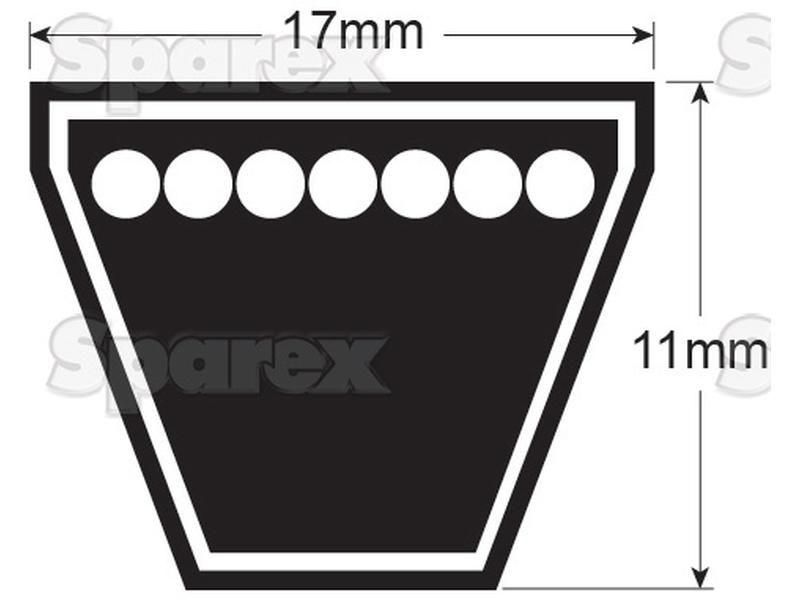

| Top Width x Depth | 17 x 11mm (21/32'' x 7/16'') |
| Width (ins) | 21/32 |
| Inside length Li ins | 35 |
| Effective Length (ins) | 37 |
| Outside length La (ins) | 38 |
| Tariff Code | 4010390010 |
| Depth ins | 7/16 |
| Inside length Li (mm) | 889 |
| Effective Length (mm) | 929 |
| Pitch Length (Lp) (Lw): | 929 |
| Datum length LD (mm) | 929 |
| Outside length La (mm) | 958 |
| Section | B |
| Belt No. | B35 |
| Brand | Sparex (Agribelt) |
| Type | Standard V Belt (Smooth) |
Manufacturer Part Numbers
| Allis Chalmers |
|---|
| 1114909 |
| Belt References |
| B35 |
| Case IH |
| 175739R1, 475739R1, H197012 |
| John Deere |
| N51225 |
| White Oliver |
| C07706 |
