V Belt - B Section - Belt No. B33 for Case IH B414 (B Series)
Part Number: S.19101Categories: Engine Fuel and Filters
Part Number: S.19101
Grade: Replacement
Part Details
V Belt - B Section - Belt No. B33
Technical Information
| Belt No. | B33 |
| Brand | Sparex (Agribelt) |
| Datum length LD mm | 878 |
| Depth ins | 7/16 |
| Depth mm | 11 |
| Effective Length ins | 35 |
| Effective Length mm | 878 |
| Inside length Li ins | 33 |
| Inside length Li mm | 838 |
| Outside length La ins | 36 |
| Outside length La mm | 907 |
| Pitch Length Lp Lw mm | 878 |
| Related Products | 14683 |
| Section | B |
| Tariff Code | 4010390010 |

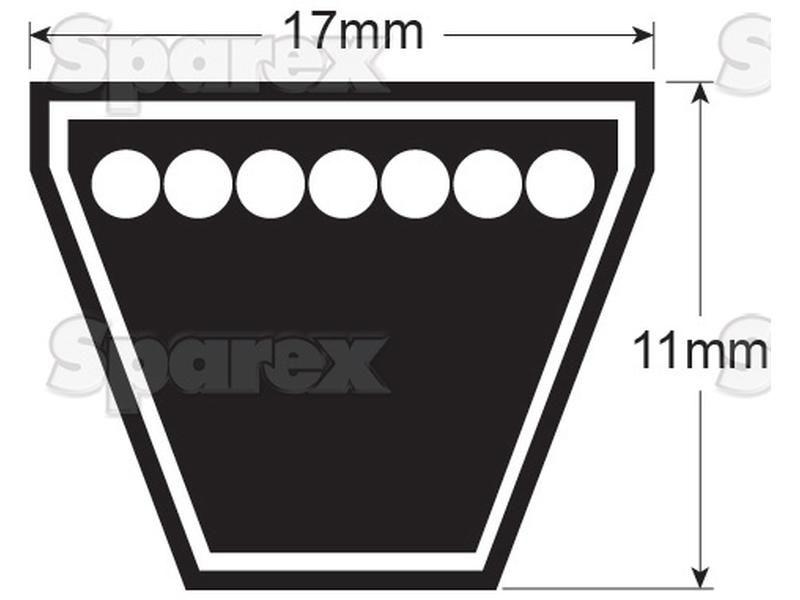

| Top Width x Depth | 17 x 11mm (21/32'' x 7/16'') |
| Type | Standard V Belt (Smooth) |
| Width ins | 21/32 |
| Width mm | 17 |
Manufacturer Part Numbers
| Belt References |
|---|
| B33 |
| Case IH |
| 709502R1, 709520R1 |
| Ford New Holland |
| 709502R1 |
| Hesston |
| 7855752 |
| John Deere |
| P41500 |
