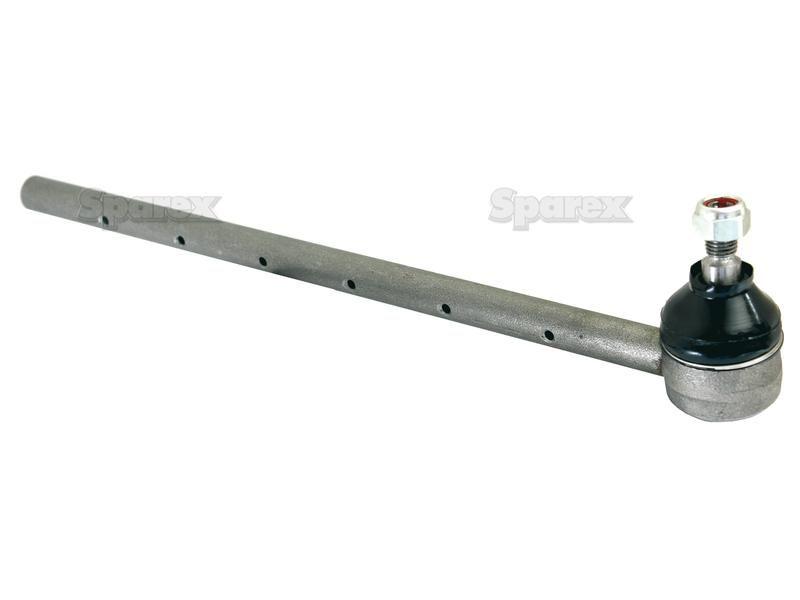

Track Rod, Length: 382mm for Case IH 824 (24 Series)
Part Number: S.63268Categories: Power Transmission
Part Number: S.63268
Grade: Replacement
Part Details
Track Rod, Length: 382mm Ø A (mm): Ø18, Ø B (mm): M12 x 1.5, Ø C (mm): 16.5 - 14.57mm, D (mm): 20mm.

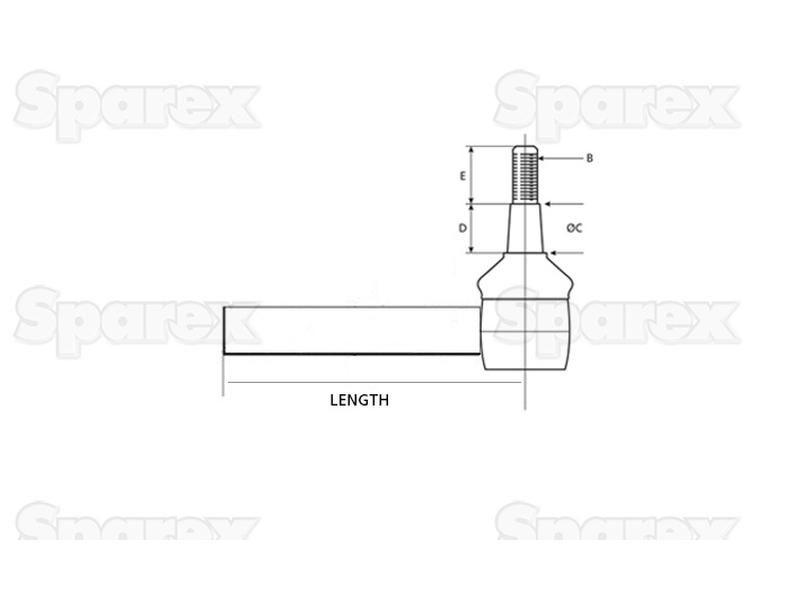

Technical Information
| C (mm) | 14.5 |
| Taper C (mm) | 16.5 - 14.57 |
| Taper length D (mm) | 20 |
| Thread length E (mm) | 24.3 |
| Length (mm) | 382 |
| Tariff Code | 8708949900 |
| Outer side thread Ø B (mm) | M12 x 1.5 |
| Type | No Thread - Straight |
| Brand | Sparex |
| Inner side thread Ø A (mm) | Ø18 |
Manufacturer Part Numbers
| Case IH |
|---|
| 3058213R9, 3058213R91, 3058213R93 |
