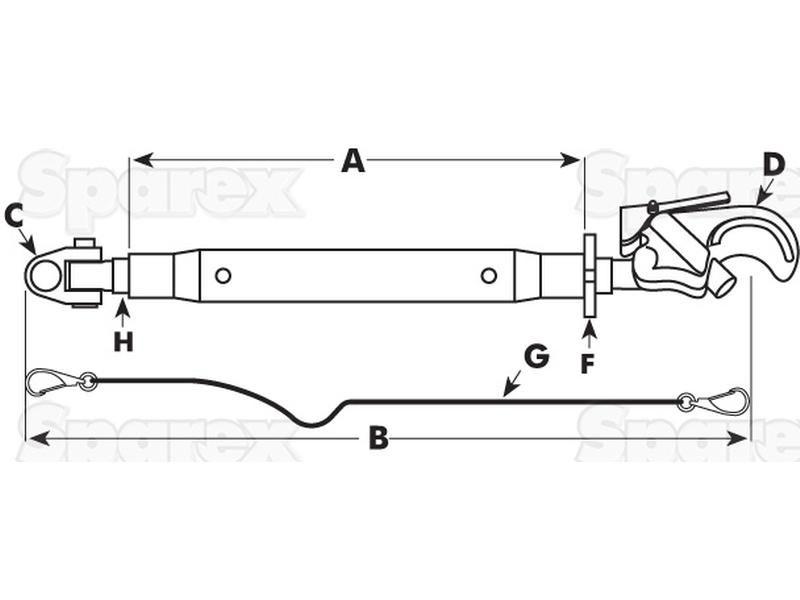

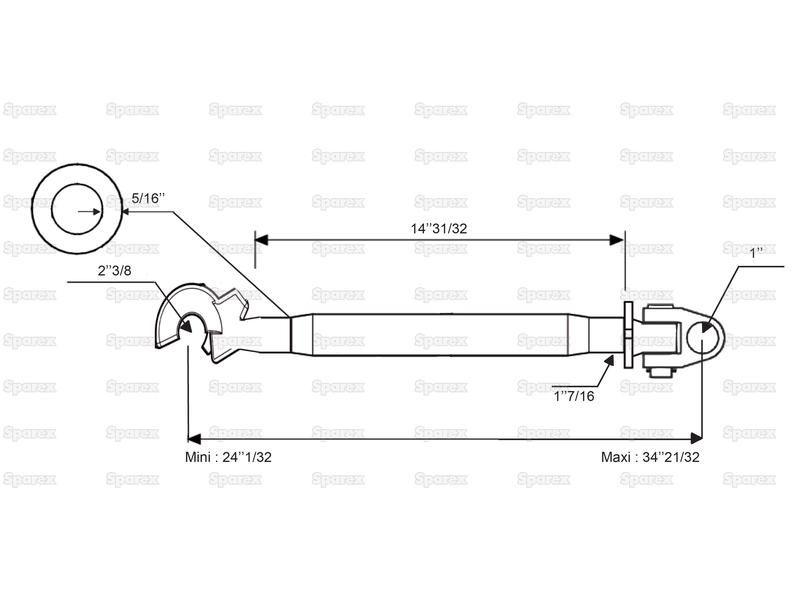

Top Link Superlink (Lever Lock) (Cat.2/3) Knuckle and Q.R. Hook, Min. Length: 610mm. for Case IH 5150 (Maxxum Series)
Part Number: S.74386Categories: PTO (shaft), Linkage
Part Number: S.74386
Grade: Replacement
Part Details
Top Link Superlink (Lever Lock) (Cat.2/3) Knuckle and Q.R. Hook, Min. Length: 610mm. Tube length: 380mm,Min. Length: 610mm,Max. Length: 880mm,Thread size: M36 x 3
Technical Information
| Brand | Spenco |
| Category | 2/3 |
| Category Implement End | 3 |
| Category Tractor End | 2 |
| Centre Tube | S.74392 |
| Centre Tube Size mm | 54.5 |
| Colour | Black |
| Duty | Heavy |
| Implement End | Q.R. Hook |
| Knuckle Width mm | 51 |
| Maximum Length ins | 34 5/8 |
| Maximum Length mm | 880 |
| Minimum Length ins | 24 |
| Minimum Length mm | 610 |
| Related Products | 13985, 14636, 33004, 33010, 33017, 74434, 148196, 148197 |
| Release Harness | S.33017 |
| Replacement Implement End | S.74434 |
| Replacement Tractor End | S.13985 |
| Suitable for Tractors up to hp kW | 180hp (135kW) |
| Supplied with | Release Harness |
| Tariff Code | 8708999790 |
| Thread size | M36x3 |
| Thread type | Metric |
| Tommy Bar | Retained |
| Tractor End | Knuckle |
| Tube Length ins | 15 |
| Tube length mm | 380 |
Manufacturer Part Numbers
| Case IH |
|---|
| 224072a1 |
