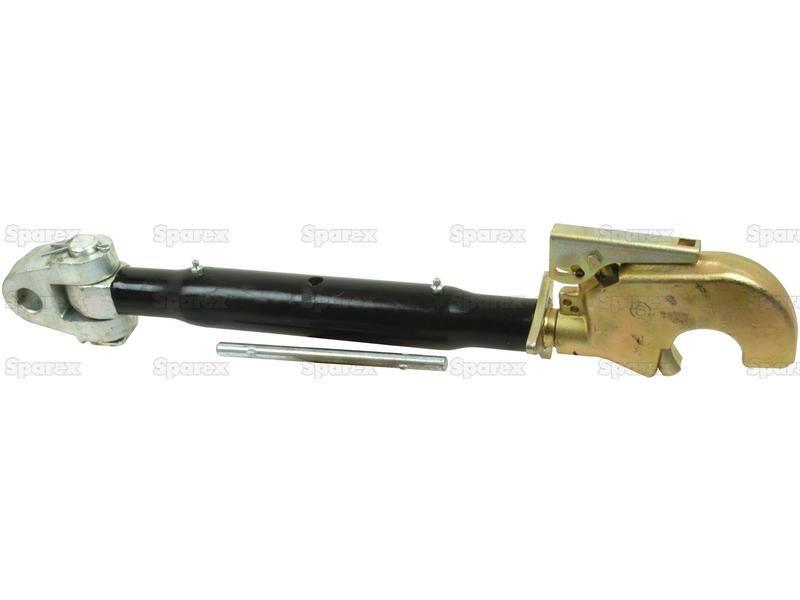

Top Link Superlink (Cat.3/3) Knuckle and Q.R. Hook, Min. Length: 600mm. for Massey Ferguson (3791535M93)
Part Number: S.33115Categories: PTO (shaft), Linkage
Part Number: S.33115
Grade: Replacement
Part Details
Top Link Superlink (Cat.3/3) Knuckle and Q.R. Hook, Min. Length: 600mm. Tube length: 380mm,Min. Length: 600mm,Max. Length: 850mm,Thread size: M36 x 3

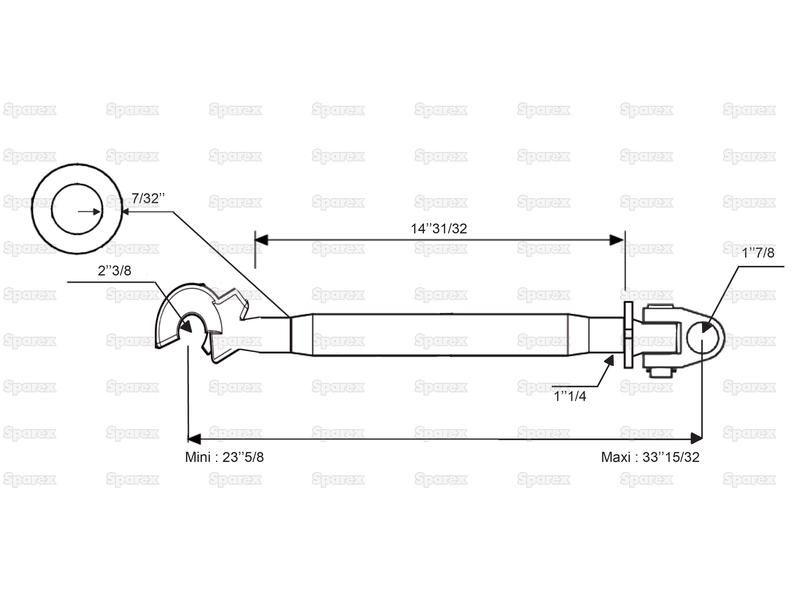

Technical Information
| A ins | 15 |
| A mm | 380 |
| B Max. ins | 31 1/8 |
| B Max. mm | 850 |
| B Min. ins | 23 5/8 |
| B Min. mm | 600 |
| B mm | 0 |
| Brand | Sparex |
| Category | 3/3 |
| Category Implement End | 3 |
| Category Tractor End | 3 |
| Centre Tube | S.16844 |
| Centre Tube Size mm | 48.5 x 5 with grease nipples |
| Colour | Black |
| Duty | Heavy |
| Implement End | Q.R. Hook |
| Knuckle Width mm | 51 |
| Locking Collar | S.5333 or S.16850 |
| Maximum Length ins | 35 3/4 |
| Maximum Length mm | 850 |
| Minimum Length ins | 23 5/8 |
| Minimum Length mm | 600 |
| Related Products | 13986, 14018, 14636, 16025, 16844, 16850, 33004, 33010, 33017, 5333, 148196, 148197, 149968 |
| Release Harness | S.33017 |
| Replacement Implement End | S.33099 |
| Replacement Tractor End | S.13986 |
| Suitable for Tractors up to hp kW | 180hp (135kW) |
| Supplied with | Release Harness |
| Tariff Code | 8708999790 |
| Thread size | M36 x 3.00 |
| Thread type | Metric |
| Tommy Bar | S.16025 |
| Tractor End | Knuckle |
| Tube Length ins | 15 |
| Tube length mm | 380 |
Models
| Massey Ferguson |
|---|
| 6485 (6400 Series), 6490 (6400 Series), 6495 (6400 Series), 6497 (6400 Series), 6499 (6400 Series), 7619 DYNA 6, 7620 DYNA 6 |
Manufacturer Part Numbers
| Massey Ferguson |
|---|
| 3791535M93 |
