Top Link Superlink (Cat.3/3) Ball and Q.R. Hook, Min. Length: 680mm.
Part Number: S.33114Categories: PTO (shaft), Linkage
Part Number: S.33114
Grade: Replacement
Part Details

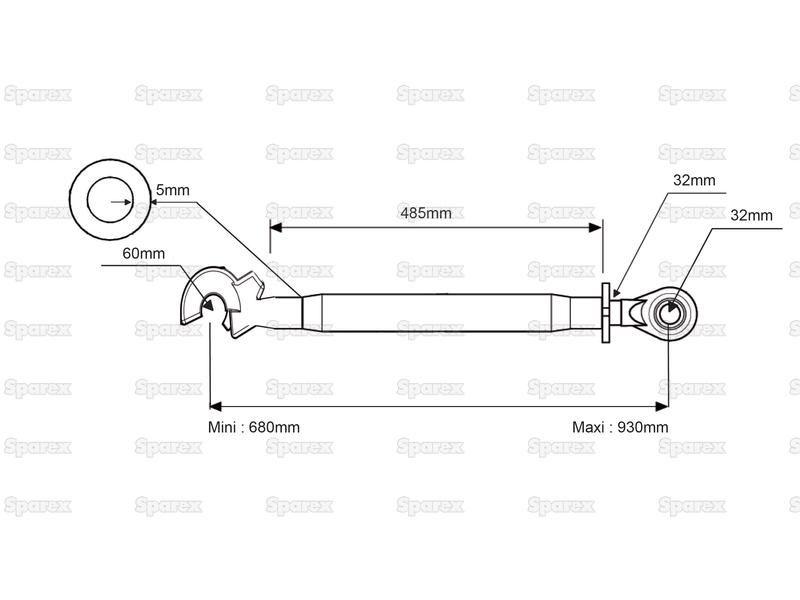

Top Link Superlink (Cat.3/3) Ball and Q.R. Hook, Min. Length: 680mm. Tube length: 485mm,Min. Length: 680mm,Max. Length: 930mm,Thread size: M36 x 3
Technical Information
| A ins | 19 |
| A mm | 485 |
| B Max. ins | 35 5/8 |
| B Max. mm | 930 |
| B Min. ins | 24 3/8 |
| B Min. mm | 680 |
| B mm | 0 |
| Brand | Sparex |
| Category | 3/3 |
| Category Implement End | 3 |
| Category Tractor End | 3 |
| Centre Tube | S.16845 |
| Centre Tube Size mm | 48.5 x 5 with grease nipples |
| Colour | Black |
| Duty | Heavy |
| Implement End | Q.R. Hook |
| Locking Collar | S.5333 or S.16850 |
| Maximum Length ins | 36 5/8 |
| Maximum Length mm | 930 |
| Minimum Length ins | 26 3/4 |
| Minimum Length mm | 680 |
| Related Products | 14636, 16025, 16845, 16848, 16850, 33004, 33010, 33017, 5333, 148196, 148197 |
| Release Harness | S.33017 |
| Replacement Implement End | S.33099 |
| Replacement Tractor End | S.16848 |
| Suitable for Tractors up to hp kW | 180hp (135kW) |
| Supplied with | Release Harness |
| Tariff Code | 8708999790 |
| Thread size | M36 x 3.00 |
| Thread type | Metric |
| Tommy Bar | S.16025 |
| Tractor End | Ball |
| Tractor End Ball Width mm | 51 |
| Tube Length ins | 19 |
| Tube length mm | 485 |
