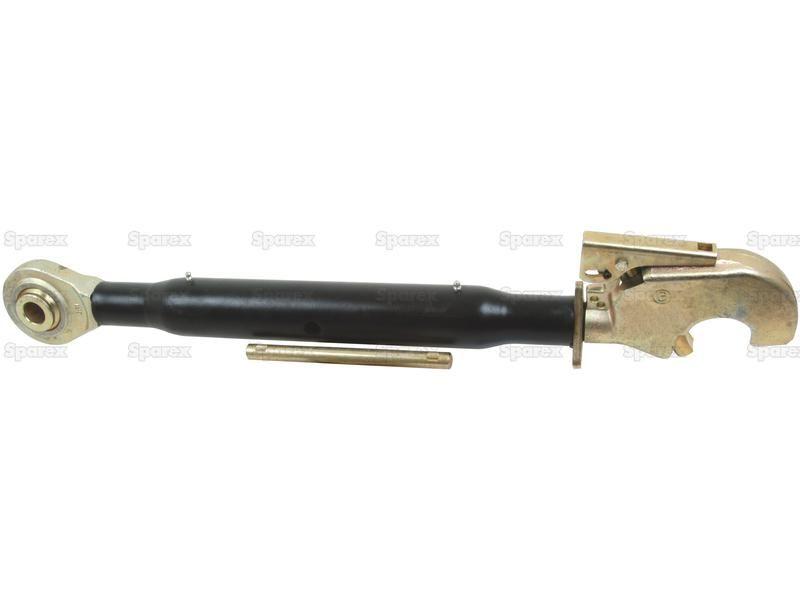

Top Link Superlink (Cat.3/3) Ball and Q.R. Hook, Min. Length: 560mm.
Part Number: S.28202Categories: PTO (shaft), Linkage
Part Number: S.28202
Grade: Replacement
Part Details

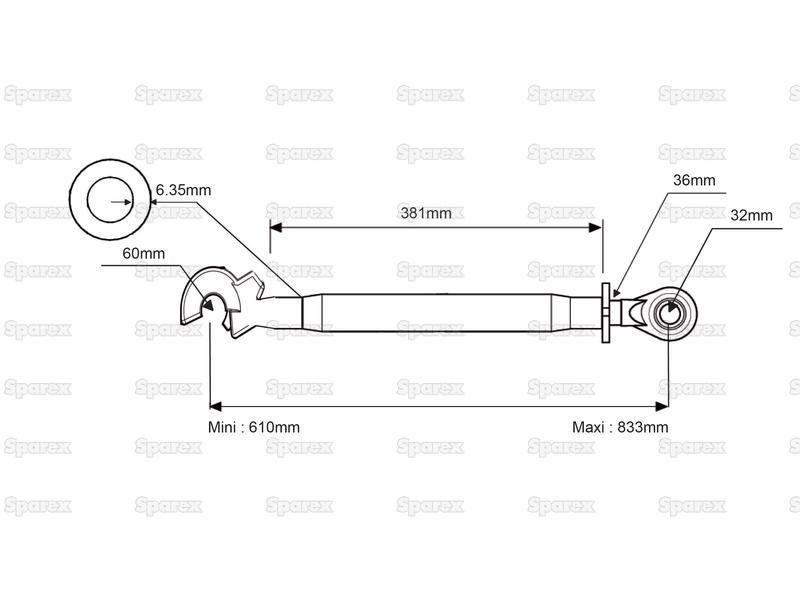

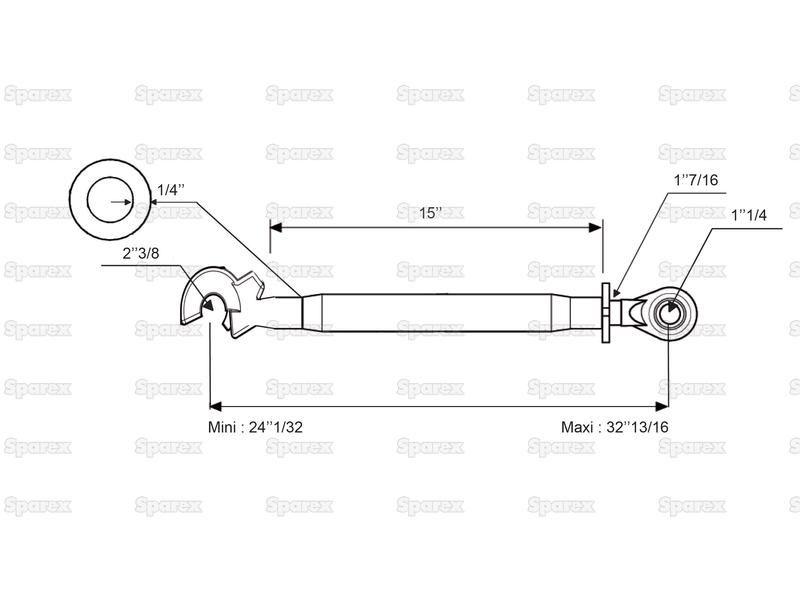

Top Link Superlink (Cat.3/3) Ball and Q.R. Hook, Min. Length: 560mm. Tube length: 381mm,Min. Length: 560mm,Max. Length: 833mm,Thread size: M36 x 3
Technical Information
| A ins | 15 |
| A mm | 381 |
| B Max. ins | 31 1/8 |
| B Max. mm | 833 |
| B Min. ins | 20 5/8 |
| B Min. mm | 610 |
| B mm | 0 |
| Brand | Sparex |
| Category | 3/3 |
| Category Implement End | 3 |
| Category Tractor End | 3 |
| Centre Tube | S.16844 |
| Colour | Black |
| Duty | Heavy |
| Implement End | Q.R. Hook |
| Locking Collar | S.5333 or S.16850 |
| Maximum Length ins | 31 5/8 |
| Maximum Length mm | 833 |
| Minimum Length ins | 22 3/4 |
| Minimum Length mm | 560 |
| Related Products | 14636, 16025, 16844, 16848, 16850, 33004, 33010, 33017, 5333, 148196, 148197 |
| Release Harness | S.33017 |
| Replacement Implement End | S.33099 |
| Replacement Tractor End | S.16848 |
| Suitable for Tractors up to hp kW | 180hp (135kW) |

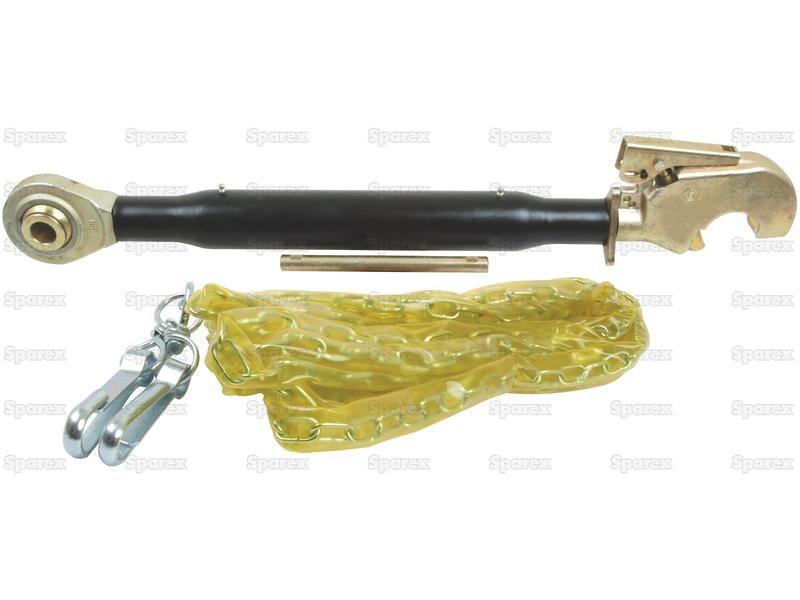

| Supplied with | Release Harness |
| Tariff Code | 8708999790 |
| Thread size | M36 x 3.00 |
| Thread type | Metric |
| Tommy Bar | S.16025 |
| Tractor End | Ball |
| Tractor End Ball Width mm | 51 |
| Tube Length ins | 15 |
| Tube length mm | 381 |
