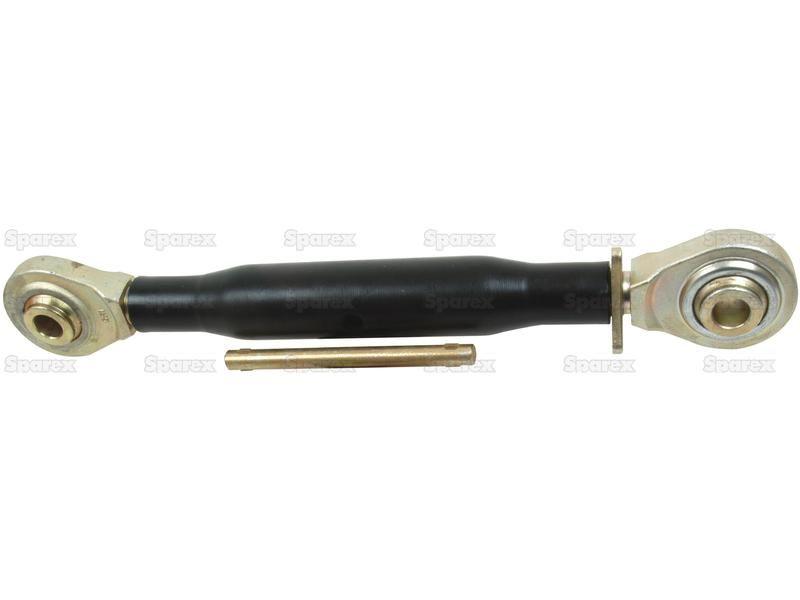

Top Link Superlink (Cat.3/2) Ball and Ball, Min. Length: 555mm.
Part Number: S.16839Categories: PTO (shaft), Linkage
Part Number: S.16839
Grade: Replacement
Part Details

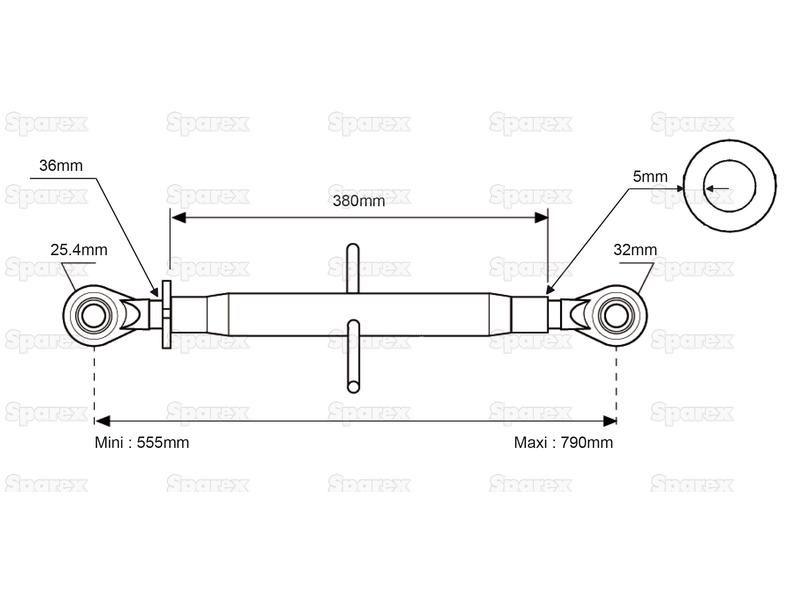

Top Link Superlink (Cat.3/2) Ball and Ball, Min. Length: 555mm. Tube length: 380mm,Min. Length: 555mm,Max. Length: 790mm,Thread size: M36 x 3
Technical Information
| Brand | Sparex |
| Category | 3/2 |
| Category Implement End | 2 |
| Category Tractor End | 3 |
| Centre Tube | S.16844 |
| Centre Tube Size mm | 48.5 x 5 with grease nipples |
| Colour | Black |
| Duty | Heavy |
| Implement End | Ball |
| Locking Collar | S.5333 |
| Maximum Length ins | 31 1/8 |
| Maximum Length mm | 790 |
| Minimum Length ins | 21 27/32 |
| Minimum Length mm | 555 |
| Related Products | 16025, 16844, 16847, 16848, 5333 |
| Replacement Implement End | S.16847 |
| Replacement Tractor End | S.16848 |
| Suitable for Tractors up to hp kW | 180hp (135kW) |
| Tariff Code | 8708999790 |
| Thread size | M36 x 3.00 |
| Thread type | Metric |
| Tommy Bar | S.16025 |
| Tractor End | Ball |
| Tractor End Ball Width mm | 51 |
| Tube Length ins | 15 |
| Tube length mm | 380 |
