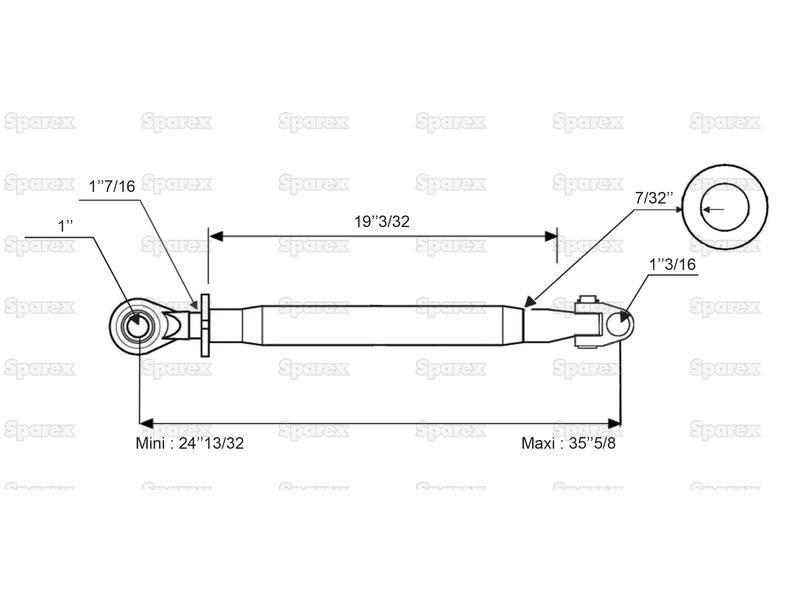

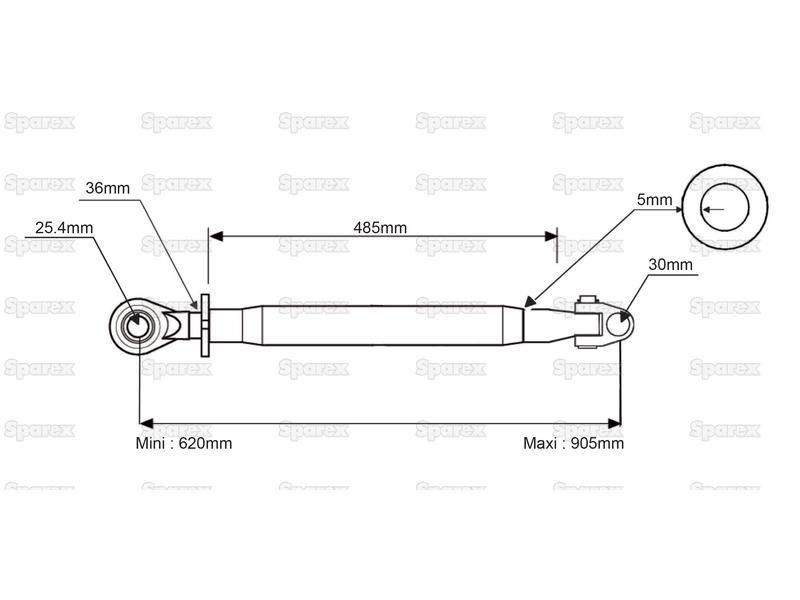

Top Link Superlink (Cat.30mm/2) Knuckle and Ball, Min. Length: 620mm.
Part Number: S.1591Categories: PTO (shaft), Linkage
Part Number: S.1591
Grade: Replacement
Part Details
Top Link Superlink (Cat.30mm/2) Knuckle and Ball, Min. Length: 620mm. Tube length: 485mm,Min. Length: 620mm,Max. Length: 905mm,Thread size: M36 x 3
Technical Information
| A ins | 19 |
| A mm | 485 |
| B Max. ins | 35 5/8 |
| B Max. mm | 905 |
| B Min. ins | 24 3/8 |
| B Min. mm | 620 |
| B mm | 0 |
| Brand | Sparex |
| Category | 30mm/2 |
| Category Implement End | 2 |
| Category Tractor End | 30mm |
| Centre Tube | S.16845 |
| Centre Tube Size mm | 48.5 x 5 with grease nipples |
| Colour | Black |
| Duty | Heavy |
| Implement End | Ball |
| Knuckle Width mm | 51 |
| Locking Collar | S.5333 or S.16850 |
| Maximum Length ins | 35 5/8 |
| Maximum Length mm | 905 |
| Minimum Length ins | 24 3/8 |
| Minimum Length mm | 620 |
| Related Products | 13988, 16025, 16845, 16847, 16850, 5333 |
| Replacement Implement End | S.16847 |
| Replacement Tractor End | S.13988 |
| Suitable for Tractors up to hp kW | 180hp (135kW) |
| Tariff Code | 8708999790 |
| Thread size | M36 x 3.00 |
| Thread type | Metric |
| Tommy Bar | S.16025 |
| Tractor End | Knuckle |
| Tube Length ins | 19 |
| Tube length mm | 485 |
