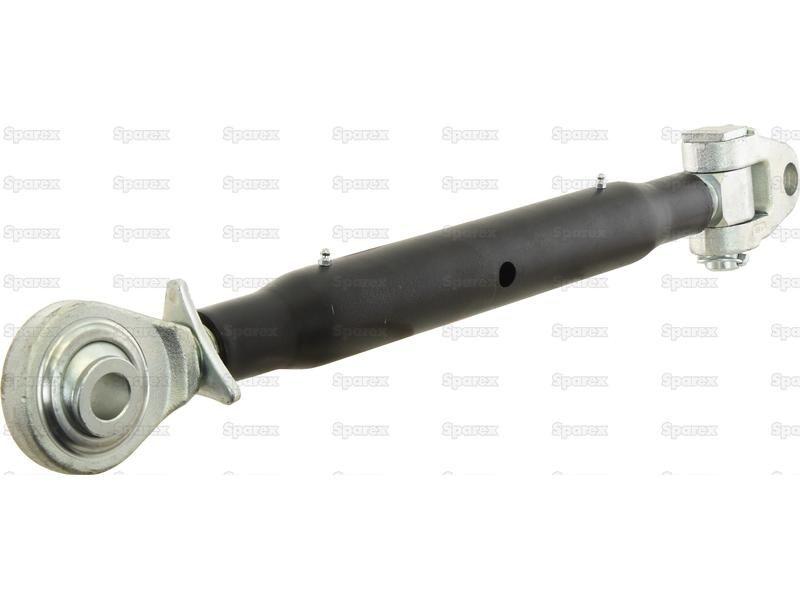

Top Link Superlink (Cat.2/2) Knuckle and Ball, Min. Length: 677mm. for Ford New Holland TS100 (TS Series)
Part Number: S.28204Categories: PTO (shaft), Linkage
Part Number: S.28204
Grade: Replacement
Part Details

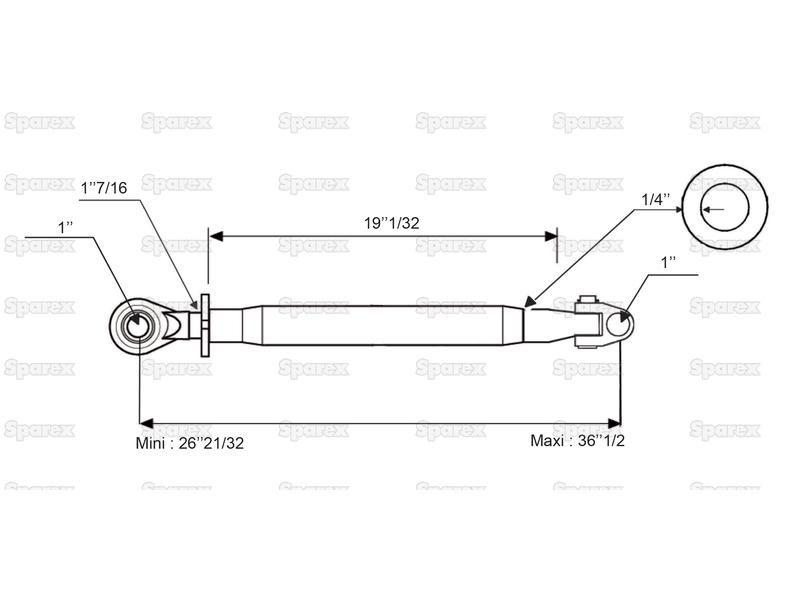

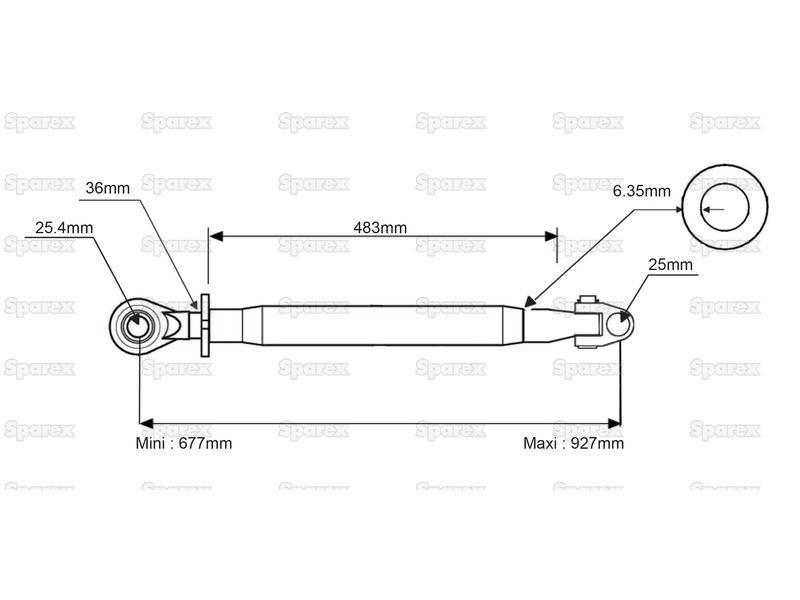

Top Link Superlink (Cat.2/2) Knuckle and Ball, Min. Length: 677mm. Tube length: 483mm,Min. Length: 677mm,Max. Length: 927mm,Thread size: M36 x 3
Technical Information
| A ins | 19 |
| A mm | 483 |
| B Max. ins | 35 5/8 |
| B Max. mm | 927 |
| B Min. ins | 24 3/8 |
| B Min. mm | 677 |
| B mm | 0 |
| Brand | Sparex |
| Category | 2/2 |
| Category Implement End | 2 |
| Category Tractor End | 2 |
| Centre Tube | S.16845 |
| Colour | Black |
| Duty | Heavy |
| Implement End | Ball |
| Knuckle Width mm | 51 |
| Locking Collar | S.5333 or S.16850 |
| Maximum Length ins | 35 5/8 |
| Maximum Length mm | 927 |
| Minimum Length ins | 24 3/8 |
| Minimum Length mm | 677 |
| Related Products | 13985, 16025, 16845, 16847, 16850, 5333, 119246, 119250 |
| Replacement Implement End | S.16847 |
| Replacement Tractor End | S.13985 |
| Suitable for Tractors up to hp kW | 180hp (135kW) |
| Tariff Code | 8708999790 |
| Thread size | M36x3 |
| Thread type | Metric |
| Tommy Bar | S.16025 |
| Tractor End | Knuckle |
| Tube Length ins | 19 |
| Tube length mm | 483 |
Manufacturer Part Numbers
| Case IH |
|---|
| 1348047C1, 1533258C1 |
| Ford New Holland |
| 1348047C1, 47137574, 84414384 |
| Massey Ferguson |
| 3619106M91 |
