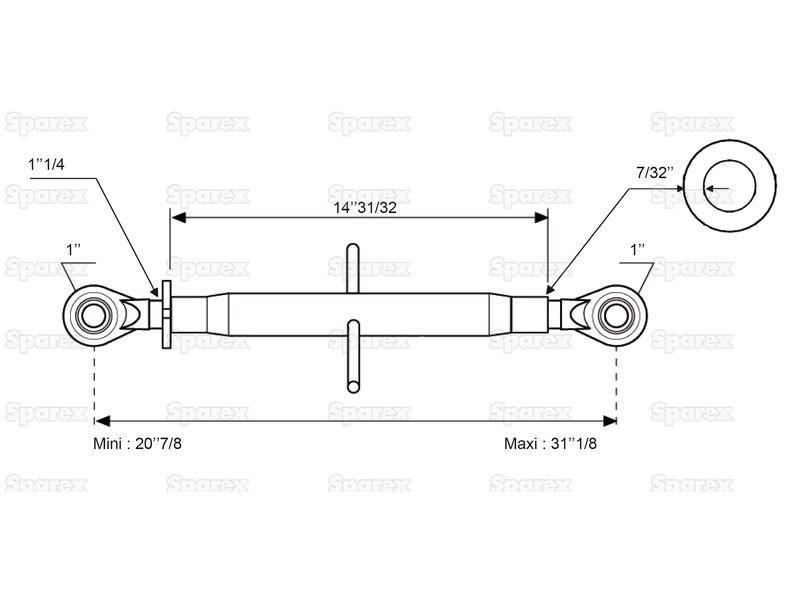

Top Link Superlink (Cat.2/2) Ball and Ball, Min. Length: 530mm.
Part Number: S.4916073Categories: PTO (shaft), Linkage
Part Number: S.4916073
Grade: Replacement
Part Details
Top Link Superlink (Cat.2/2) Ball and Ball, Min. Length: 530mm. Tube length: 380mm,Min. Length: 530mm,Max. Length: 790mm,Thread size: 1 1/4''
Technical Information
| A ins | 15 |
| A mm | 380 |
| B Max. ins | 30 3/4 |
| B Max. mm | 790 |
| B Min. ins | 0 |
| B Min. mm | 530 |
| B mm | 0 |
| Brand | Sparex |
| Category | 2/2 |
| Category Implement End | 2 |
| Category Tractor End | 2 |
| Centre Tube Size mm | 48.5 x 5 with grease nipples |
| Colour | Black |
| Duty | Heavy |
| Implement End | Ball |
| Locking Collar | S.15553 |
| Maximum Length ins | 31 1/8 |
| Maximum Length mm | 790 |
| Minimum Length ins | 20 7/8 |
| Minimum Length mm | 530 |
| Replacement Implement End | S.4916075 |
| Replacement Tractor End | S.4916076 |
| Suitable for Tractors up to hp kW | 133hp (100kW) |
| Tariff Code | 8708999790 |
| Thread size | 1 1/4'' |
| Thread type | UNC |
| Tommy Bar | S.16025 |
| Tractor End | Ball |
| Tractor End Ball Width mm | 44.5 |
| Tube Length ins | 15 |
| Tube length mm | 380 |
