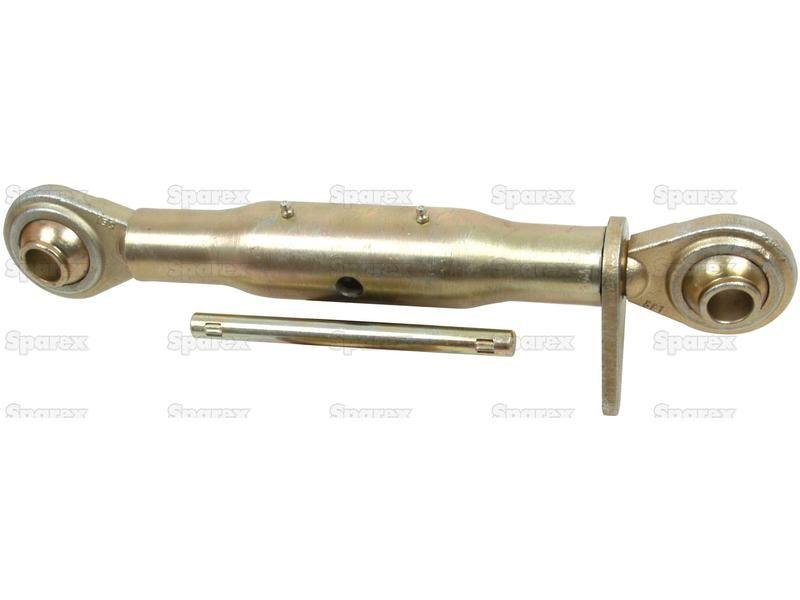

Top Link Superlink (Cat.2/2) Ball and Ball, Min. Length: 420mm.
Part Number: S.4917607Categories: PTO (shaft), Linkage
Part Number: S.4917607
Grade: Replacement
Part Details

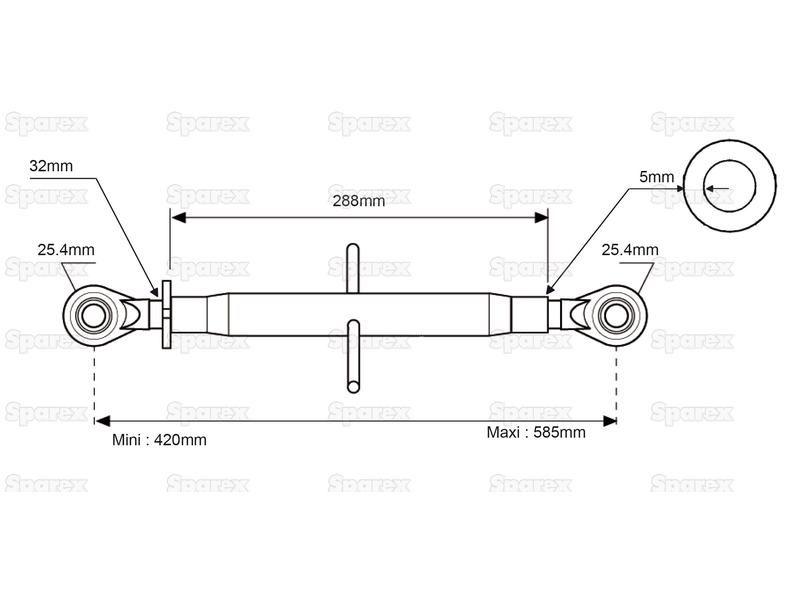

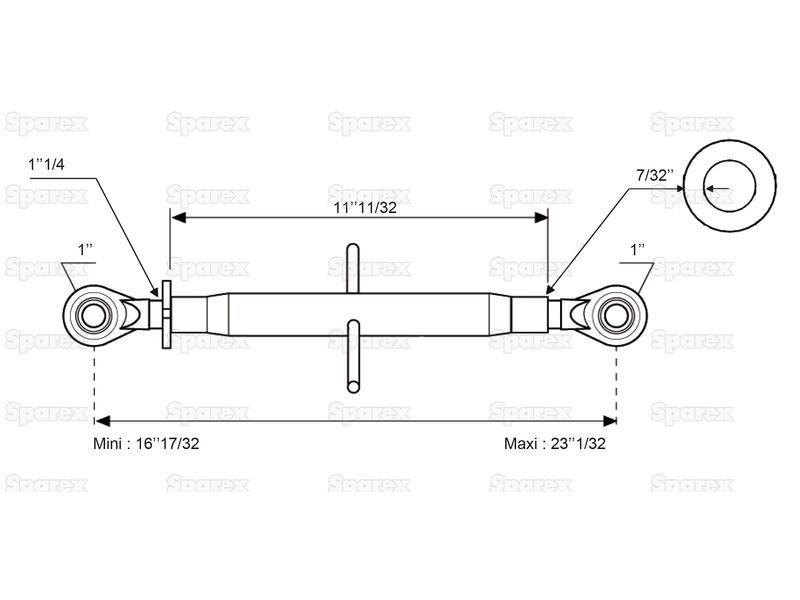

Top Link Superlink (Cat.2/2) Ball and Ball, Min. Length: 420mm. Tube length: 288mm,Min. Length: 420mm,Max. Length: 585mm,Thread size: 1 1/4''
Technical Information

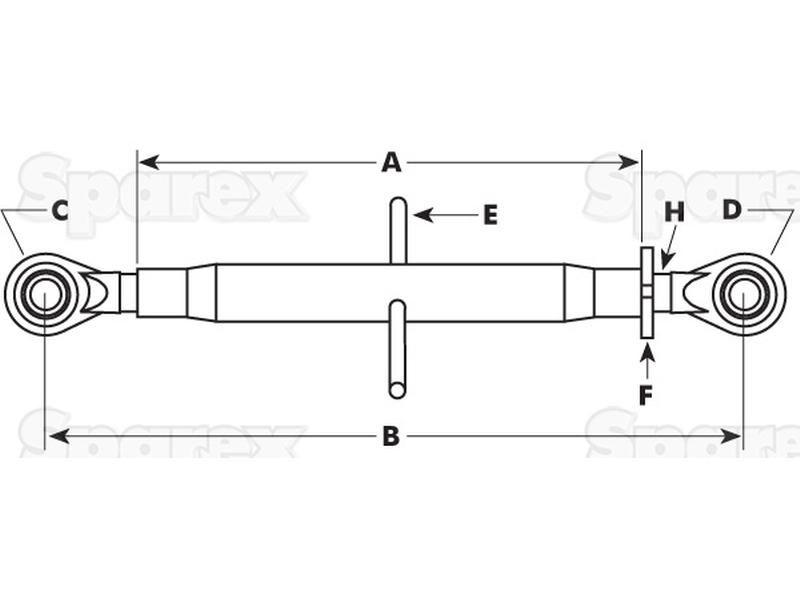

| A ins | 11 1/4 |
| A mm | 288 |
| B Max. ins | 23 1/32 |
| B Max. mm | 585 |
| B Min. ins | 16 15/32 |
| B Min. mm | 420 |
| B mm | 0 |
| Brand | Sparex |
| Category | 2/2 |
| Category Implement End | 2 |
| Category Tractor End | 2 |
| Centre Tube | S.17608 |
| Centre Tube Size mm | 48.5 x 5 with grease nipples |
| Colour | Gold |
| Duty | Heavy |
| Implement End | Ball |
| Locking Collar | S.15553 |
| Maximum Length ins | 23 1/32 |
| Maximum Length mm | 585 |
| Minimum Length ins | 16 15/32 |
| Minimum Length mm | 420 |
| Replacement Implement End | S.17609 |
| Replacement Tractor End | S.17610 |
| Suitable for Tractors up to hp kW | 133hp (100kW) |
| Tariff Code | 8708999790 |
| Thread size | 1 1/4'' |
| Thread type | UNC |
| Tommy Bar | S.16025 |
| Tractor End | Ball |
| Tractor End Ball Width mm | 44.5 |
| Tube Length ins | 11 1/4 |
| Tube length mm | 288 |
