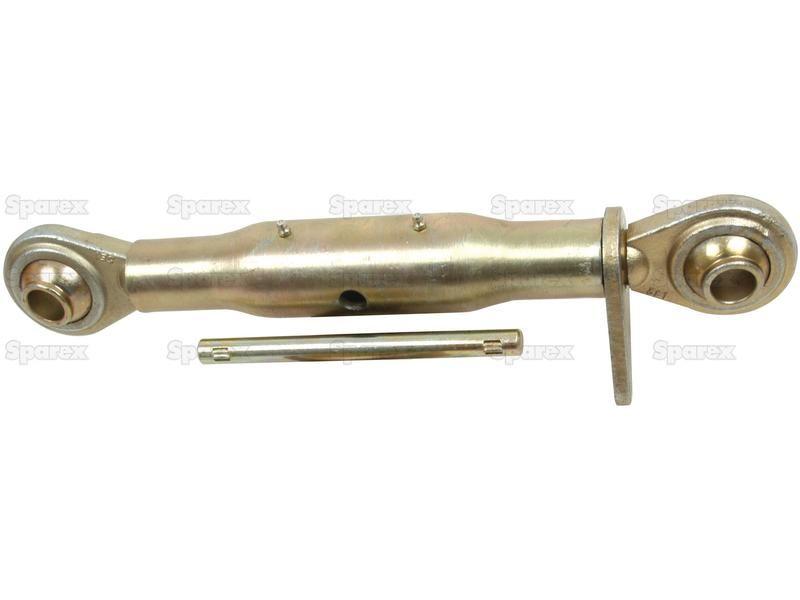

Top Link Superlink (Cat.2/2) Ball and Ball, Min. Length: 420mm.
Part Number: S.1545Categories: PTO (shaft), Linkage
Part Number: S.1545
Grade: Replacement
Part Details

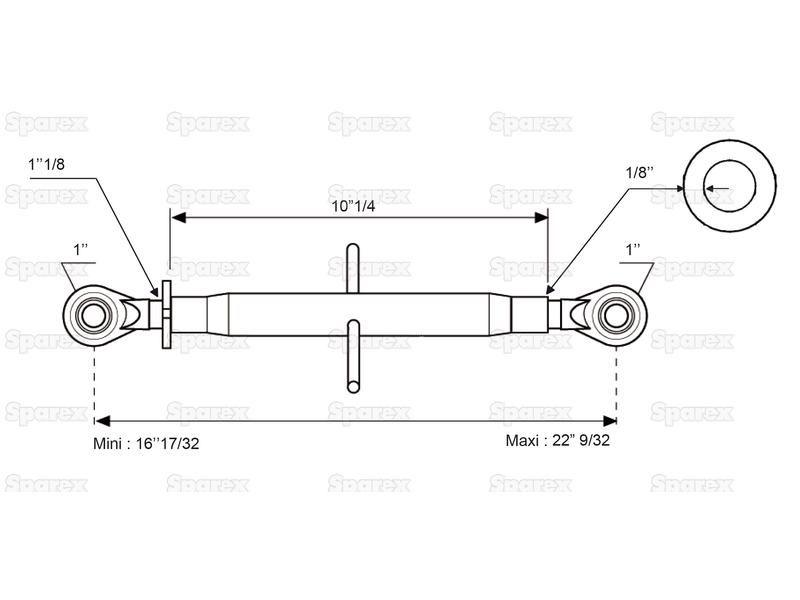

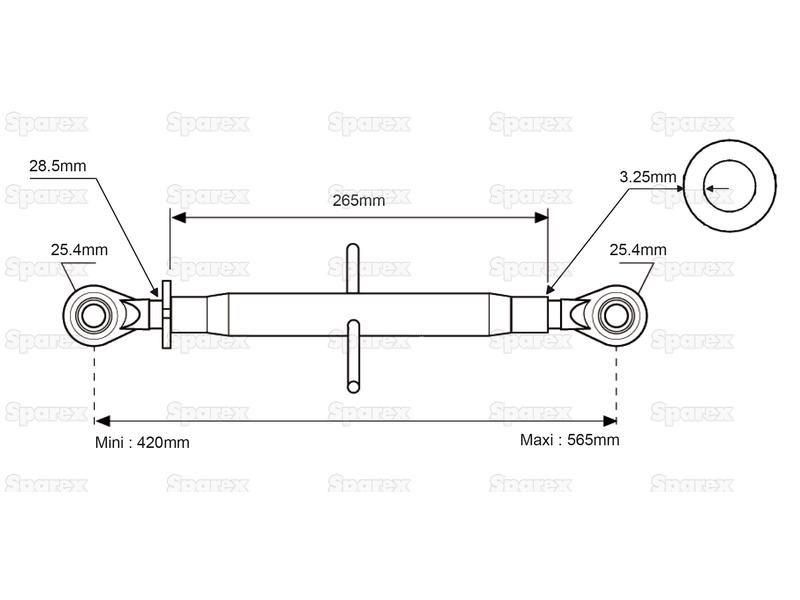

Top Link Superlink (Cat.2/2) Ball and Ball, Min. Length: 420mm. Tube length: 265mm,Min. Length: 420mm,Max. Length: 565mm,Thread size: M36 x 3
Technical Information

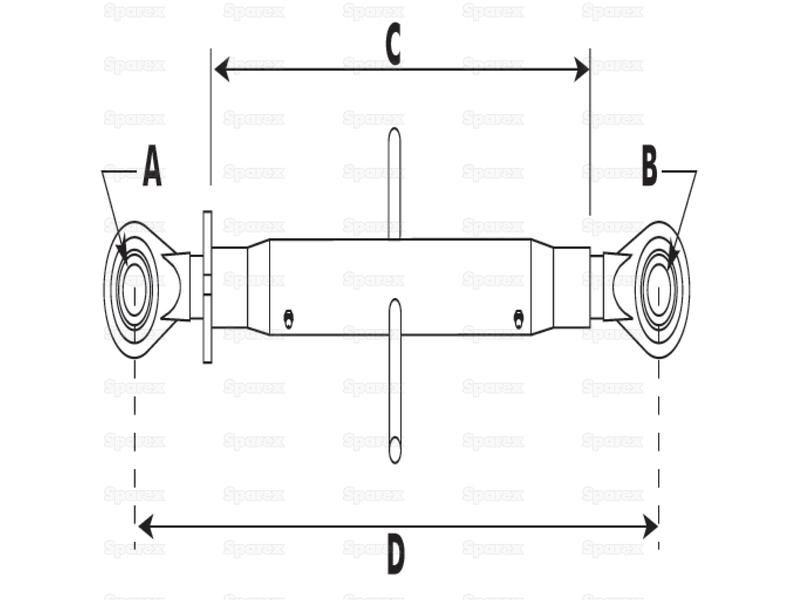

| A ins | 107/16 |
| A mm | 265 |
| B Max. ins | 221/4 |
| B Max. mm | 565 |
| B Min. ins | 16 15/32 |
| B Min. mm | 420 |
| B mm | 0 |
| Brand | Sparex |
| Category | 2/2 |
| Category Implement End | 2 |
| Category Tractor End | 2 |
| Centre Tube | S.1544 |
| Centre Tube Size mm | 48.5 x 5 with grease nipples |
| Colour | Gold |
| Duty | Heavy |
| Implement End | Ball |
| Locking Collar | S.5333 or S.16850 |
| Maximum Length ins | 221/4 |
| Maximum Length mm | 565 |
| Minimum Length ins | 16 15/32 |
| Minimum Length mm | 420 |
| Related Products | 1544, 16846, 16847, 16850, 5333 |
| Replacement Implement End | S.16847 |
| Replacement Tractor End | S.16846 |
| Suitable for Tractors up to hp kW | 180hp (135kW) |
| Tariff Code | 8708999790 |
| Thread size | M36 x 3.00 |
| Thread type | Metric |
| Tractor End | Ball |
| Tractor End Ball Width mm | 51 |
| Tube Length ins | 107/16 |
| Tube length mm | 265 |
