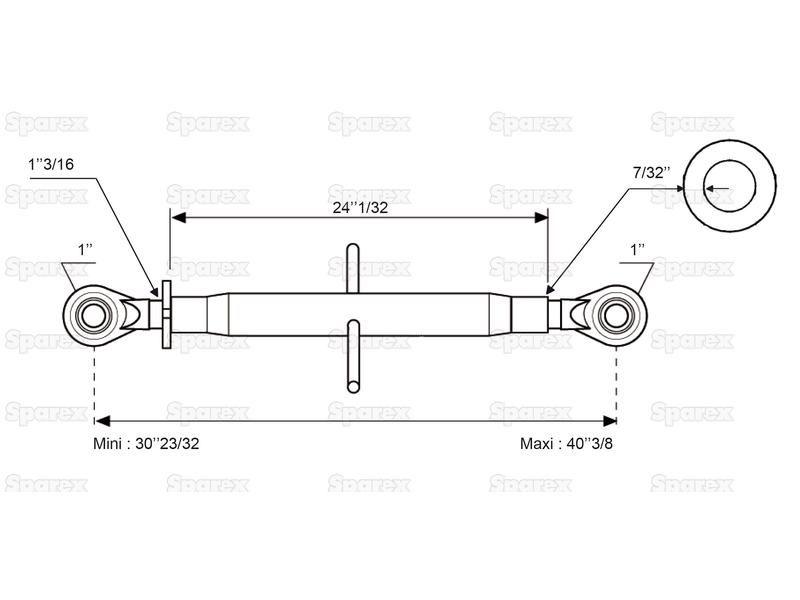

Top Link Standard Duty (Spring Lock) (Cat.2/2) Ball and Ball, Min. Length: 780mm.
Part Number: S.29455Categories: PTO (shaft), Linkage
Part Number: S.29455
Grade: Replacement
Part Details
Top Link Standard Duty (Spring Lock) (Cat.2/2) Ball and Ball, Min. Length: 780mm. Tube length: 610mm,Min. Length: 780mm,Max. Length: 1025mm,Thread size: M30 x 3
Technical Information
| Brand | Sparex |
| Category | 2/2 |
| Category Implement End | 2 |
| Category Tractor End | 2 |
| Centre Tube | S.29425 |
| Centre Tube Size mm | 48.3 x 5 |
| Colour | Black |
| Implement End | Ball |
| Locking Collar | Spring Clip |
| Maximum Length ins | 40 3/8 |
| Maximum Length mm | 1025 |
| Minimum Length ins | 30 3/4 |
| Minimum Length mm | 780 |
| Related Products | 29425, 29428, 29429 |
| Replacement Implement End | S.29429 |
| Replacement Tractor End | S.29428 |
| Suitable for Tractors up to hp kW | 100hp (75kW) |
| Tariff Code | 8412212000 |
| Thread size | M30 x 3.00 |
| Thread type | Metric |
| Tommy Bar | Retained |
| Tractor End | Ball |
| Tube Length ins | 24 |
| Tube length mm | 610 |
