Top Link Standard Duty (Spring Lock) (Cat.2/2) Ball and Ball, Min. Length: 740mm.
Part Number: S.29454Categories: PTO (shaft), Linkage
Part Number: S.29454
Grade: Replacement
Part Details

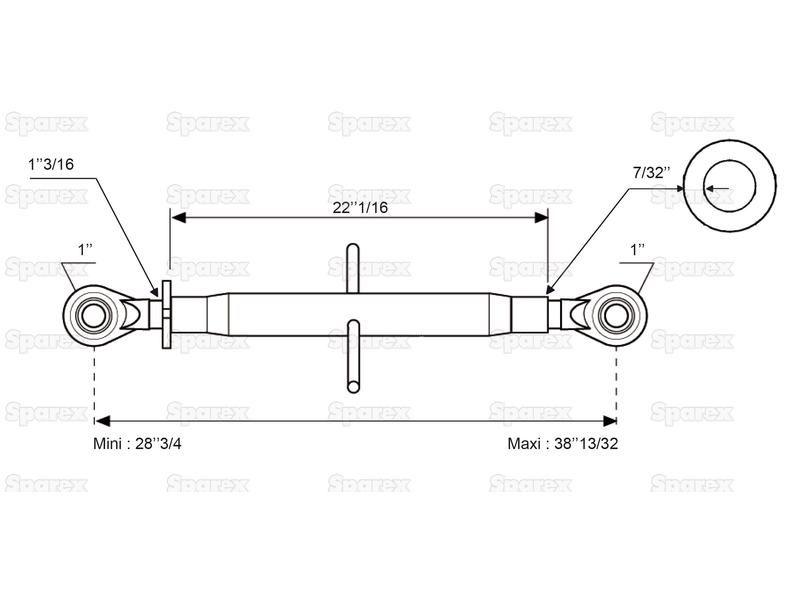

Top Link Standard Duty (Spring Lock) (Cat.2/2) Ball and Ball, Min. Length: 740mm. Tube length: 560mm,Min. Length: 740mm,Max. Length: 975mm,Thread size: M30 x 3
Technical Information
| Brand | Sparex |
| Category | 2/2 |
| Category Implement End | 2 |
| Category Tractor End | 2 |
| Centre Tube | S.29424 |
| Centre Tube Size mm | 48.3 x 5 |
| Colour | Black |
| Implement End | Ball |
| Locking Collar | Spring Clip |
| Maximum Length ins | 38 3/8 |
| Maximum Length mm | 975 |
| Minimum Length ins | 28 3/4 |
| Minimum Length mm | 740 |
| Related Products | 29424, 29428, 29429 |
| Replacement Implement End | S.29429 |
| Replacement Tractor End | S.29428 |
| Suitable for Tractors up to hp kW | 100hp (75kW) |
| Tariff Code | 8412212000 |
| Thread size | M30 x 3.00 |
| Thread type | Metric |
| Tommy Bar | Retained |
| Tractor End | Ball |
| Tube Length ins | 22 |
| Tube length mm | 560 |
