Top Link Standard Duty (Cat.22mm/1) Ball and Ball, Min. Length: 622mm. for Fendt FARMER 311
Part Number: S.11320Categories: PTO (shaft), Linkage
Part Number: S.11320
Grade: Replacement
Part Details

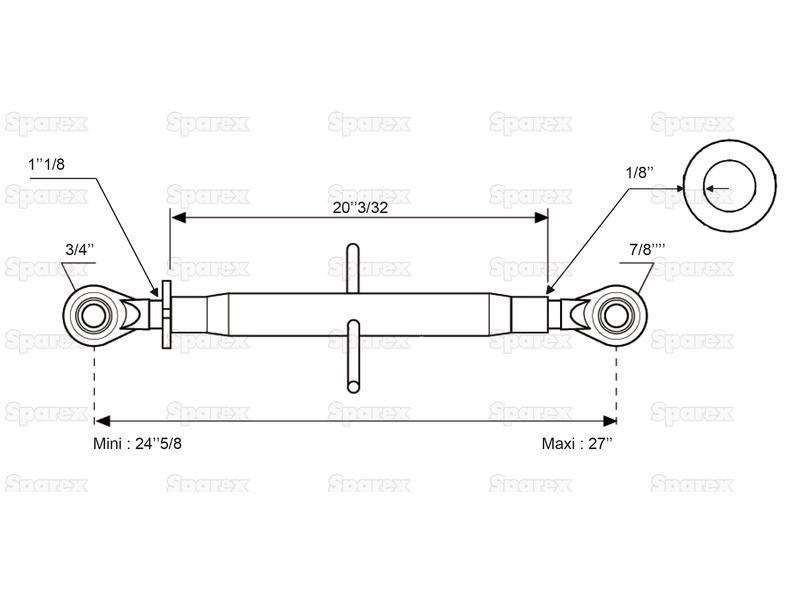

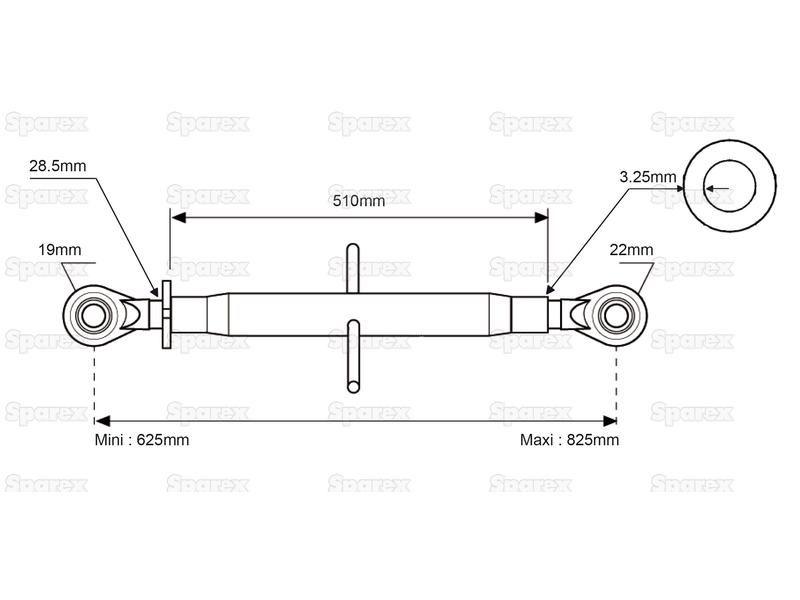

Top Link Standard Duty (Cat.22mm/1) Ball and Ball, Min. Length: 622mm. Tube length: 510mm,Min. Length: 622mm,Max. Length: 825mm,Thread size: 1 1/8''
Technical Information
| Brand | Spenco |
| Category | 22mm/1 |
| Category Implement End | 1 |
| Category Tractor End | 22mm |
| Centre Tube | S.3380 |
| Centre Tube Size mm | 42 x 3.25 |
| Colour | Green |
| Implement End | Ball |
| Maximum Length ins | 32 1/2 |
| Maximum Length mm | 825 |
| Minimum Length ins | 24 1/2 |
| Minimum Length mm | 622 |
| Related Products | 333, 342 |
| Replacement Implement End | S.11843 |
| Replacement Tractor End | S.342 |
| Suitable for Tractors up to hp kW | 100hp (75kW) |
| Tariff Code | 8708999790 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
| Tommy Bar | S.333 |
| Tractor End | Ball |
| Tractor End Ball Width mm | 44.5 |
| Tube Length ins | 20 |
| Tube length mm | 510 |
