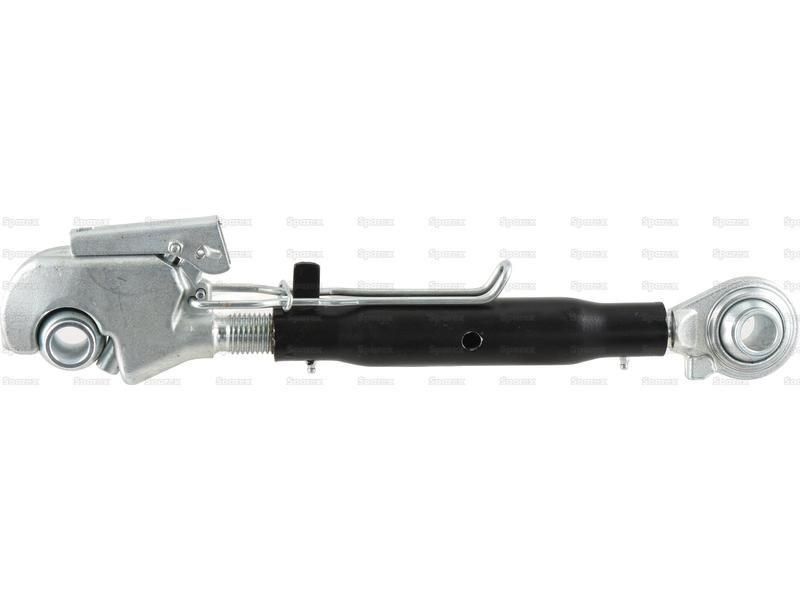

Top Link Standard Duty (Cat.2/2) Ball and Q.R. Hook, Min. Length: 468mm.
Part Number: S.140534Categories: PTO (shaft), Linkage
Part Number: S.140534
Grade: Replacement
Part Details

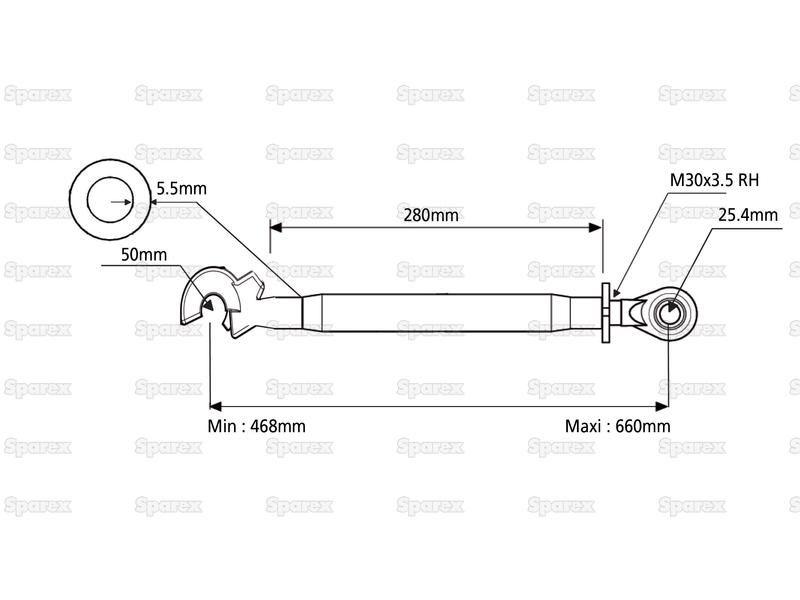

Top Link Standard Duty (Cat.2/2) Ball and Q.R. Hook, Min. Length: 468mm. Tube length: 280mm,Min. Length: 468mm,Max. Length: 660mm,Thread size: M30 x 3.5
Technical Information
| Brand | Sparex |
| Category | 2/2 |
| Category Implement End | 2 |
| Category Tractor End | 2 |
| Colour | Black |
| Implement End | Q.R. Hook |
| Locking Collar | Spring Clip |
| Maximum Length ins | 25 63/64 |
| Maximum Length mm | 660 |
| Minimum Length ins | 18 27/64 |
| Minimum Length mm | 468 |
| Related Products | 33008, 33017, 148199 |
| Suitable for Tractors up to hp kW | 100hp (75kW) |
| Tariff Code | 8412212000 |
| Thread size | M30 x 3.50 |
| Thread type | Metric |
| Tractor End | Ball |
| Tube Length ins | 11 1/32 |
| Tube length mm | 280 |
