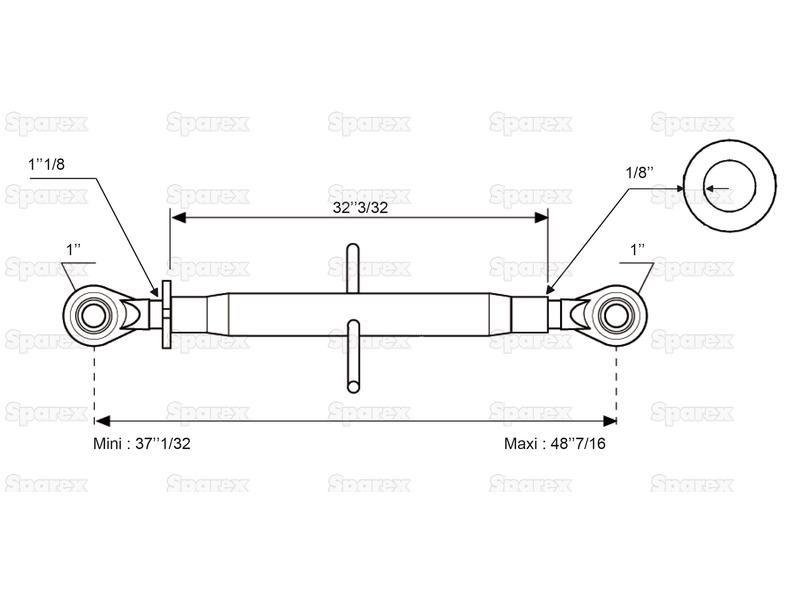

Top Link Standard Duty (Cat.2/2) Ball and Ball, Min. Length: 940mm.
Part Number: S.15311Categories: PTO (shaft), Linkage
Part Number: S.15311
Grade: Replacement
Part Details
Top Link Standard Duty (Cat.2/2) Ball and Ball, Min. Length: 940mm. Tube length: 815mm,Min. Length: 940mm,Max. Length: 1230mm,Thread size: 1 1/8''
Technical Information
| A ins | 32 |
| A mm | 815 |
| B Max. ins | 48 27/64 |
| B Max. mm | 1230 |
| B Min. ins | 37 |
| B Min. mm | 940 |
| B mm | 0 |
| Brand | Sparex |
| Category | 2/2 |
| Category Implement End | 2 |
| Category Tractor End | 2 |
| Centre Tube Size mm | 42 x 3.25 |
| Colour | Gold |
| Implement End | Ball |
| Maximum Length ins | 48 1/2 |
| Maximum Length mm | 1230 |
| Minimum Length ins | 37 |
| Minimum Length mm | 940 |
| Related Products | 346, 347 |
| Replacement Implement End | S.347 |
| Replacement Tractor End | S.346 |
| Suitable for Tractors up to hp kW | 100hp (75kW) |
| Tariff Code | 8708999790 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
| Tractor End | Ball |
| Tractor End Ball Width mm | 51 |
| Tube Length ins | 32 |
| Tube length mm | 815 |
