Top Link Standard Duty (Cat.2/2) Ball and Ball, Min. Length: 630mm. Case IH (1133694R1)
Part Number: S.337Categories: PTO (shaft), Linkage
Part Number: S.337
Grade: Replacement
Part Details

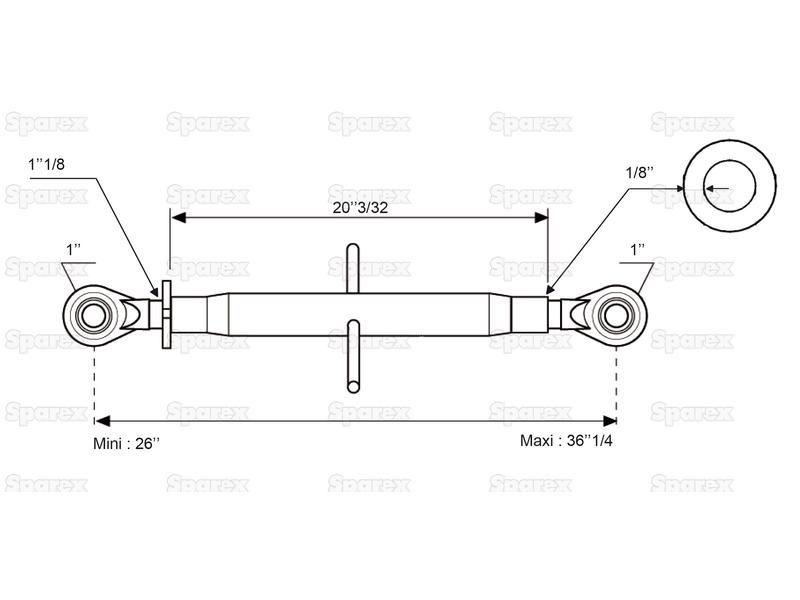

Top Link Standard Duty (Cat.2/2) Ball and Ball, Min. Length: 630mm. Tube length: 510mm,Min. Length: 630mm,Max. Length: 920mm,Thread size: 1 1/8''
Technical Information
| Brand | Sparex |
| Category | 2/2 |
| Category Implement End | 2 |
| Category Tractor End | 2 |
| Centre Tube | S.1673 |
| Centre Tube Size mm | 42 x 3.25 |
| Colour | Red |
| Implement End | Ball |
| Locking Collar | S.348 |
| Maximum Length ins | 36 1/4 |
| Maximum Length mm | 920 |
| Minimum Length ins | 26 |
| Minimum Length mm | 630 |
| Related Products | 333, 346, 347, 348 |
| Replacement Implement End | S.347 |
| Replacement Tractor End | S.346 |
| Suitable for Tractors up to hp kW | 100hp (75kW) |
| Tariff Code | 8708999790 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
| Tommy Bar | S.333 |
| Tractor End | Ball |
| Tractor End Ball Width mm | 51 |
| Tube Length ins | 20 |
| Tube length mm | 510 |
Manufacturer Part Numbers
| Case IH |
|---|
| 1133694R1 |
