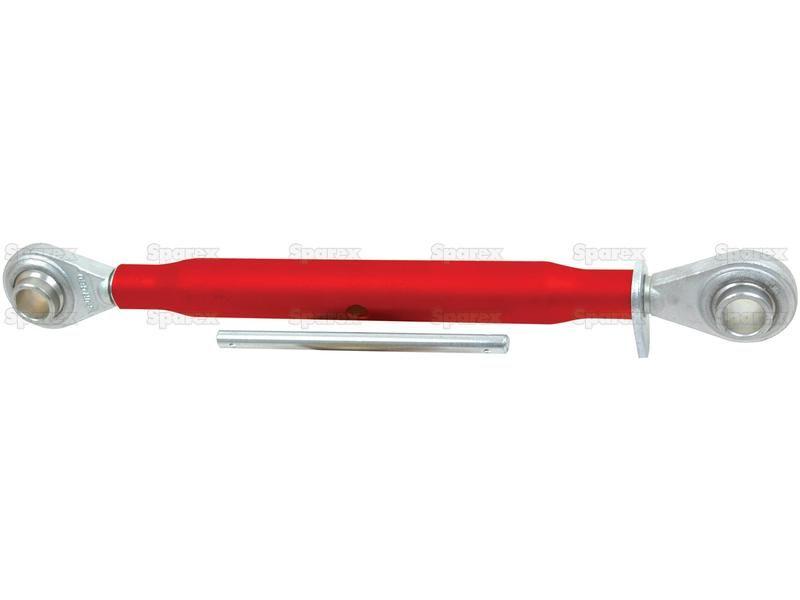

Top Link Standard Duty (Cat.2/2) Ball and Ball, Min. Length: 460mm.
Part Number: S.486Categories: PTO (shaft), Linkage
Part Number: S.486
Grade: Replacement
Part Details

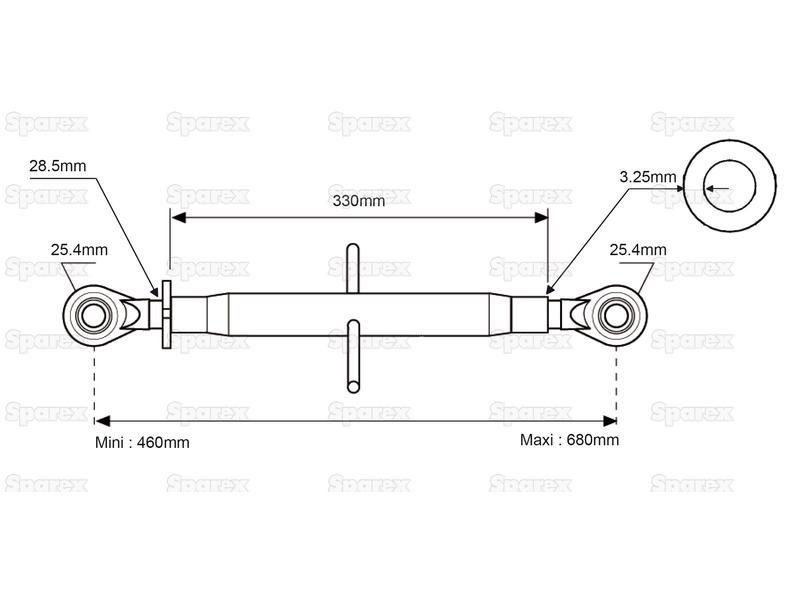

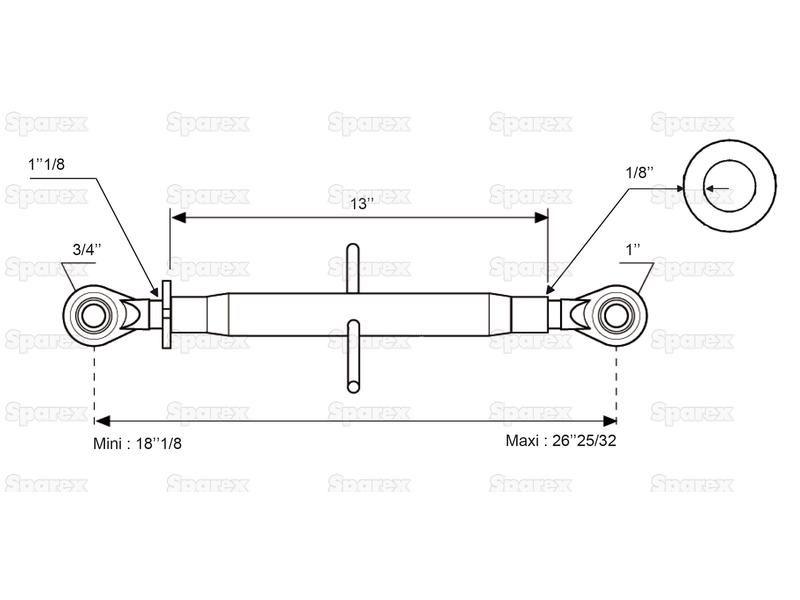

Top Link Standard Duty (Cat.2/2) Ball and Ball, Min. Length: 460mm. Tube length: 330mm,Min. Length: 460mm,Max. Length: 680mm,Thread size: 1 1/8''
Technical Information
| Brand | Spenco |
| Category | 2/2 |
| Category Implement End | 2 |
| Category Tractor End | 2 |
| Centre Tube Size mm | 42 x 3.25 |
| Colour | Red |
| Implement End | Ball |
| Locking Collar | S.348 |
| Maximum Length ins | 26 25/32 |
| Maximum Length mm | 680 |
| Minimum Length ins | 18 |
| Minimum Length mm | 460 |
| Related Products | 333, 348, 384, 385 |
| Replacement Implement End | S.385 |
| Replacement Tractor End | S.384 |
| Suitable for Tractors up to hp kW | 100hp (75kW) |
| Tariff Code | 8708999790 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
| Tommy Bar | S.333 |
| Tractor End | Ball |
| Tractor End Ball Width mm | 51 |
| Tube Length ins | 13 |
| Tube length mm | 330 |
