Top Link Standard Duty (Cat.2/2) Ball and Ball, Min. Length: 360mm. Lely (9.1087.0022.5)
Part Number: S.15317Categories: PTO (shaft), Linkage
Part Number: S.15317
Grade: Replacement
Part Details

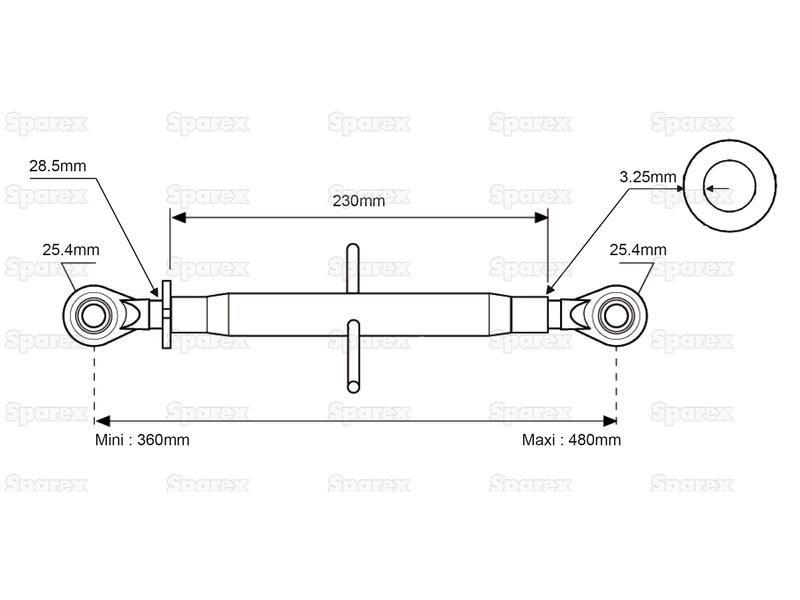

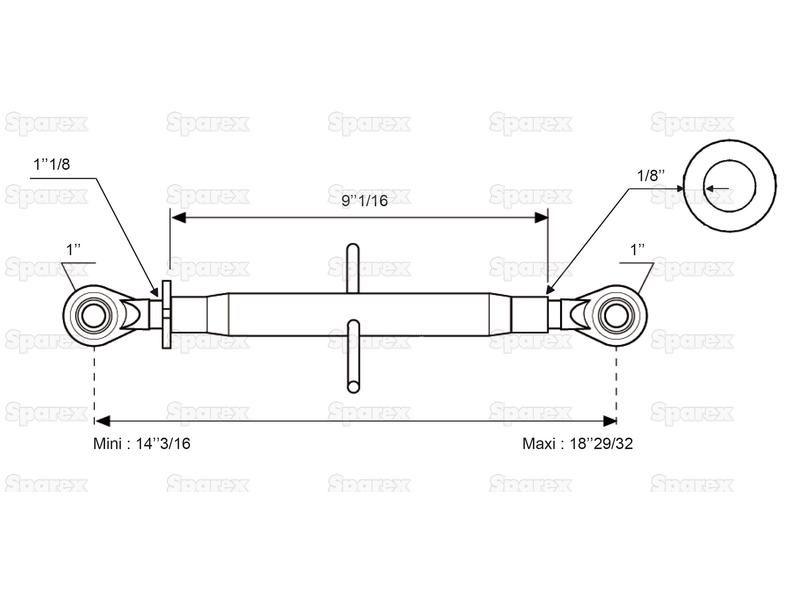

Top Link Standard Duty (Cat.2/2) Ball and Ball, Min. Length: 360mm. Tube length: 230mm,Min. Length: 360mm,Max. Length: 480mm,Thread size: 1 1/8''
Technical Information
| Brand | Sparex |
| Category | 2/2 |
| Category Implement End | 2 |
| Category Tractor End | 2 |
| Centre Tube | S.15313 |
| Centre Tube Size mm | 42 x 3.25 |
| Colour | Zinc |
| Implement End | Ball |
| Locking Collar | S.348 |
| Maximum Length ins | 18 31/32 |
| Maximum Length mm | 480 |
| Minimum Length ins | 14 1/16 |
| Minimum Length mm | 360 |
| Related Products | 15313, 15857, 15858, 333, 348 |
| Replacement Implement End | S.15858 |
| Replacement Tractor End | S.15857 |
| Suitable for Tractors up to hp kW | 100hp (75kW) |
| Tariff Code | 8708999790 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
| Tommy Bar | S.333 |
| Tractor End | Ball |
| Tractor End Ball Width mm | 51 |
| Tube Length ins | 9 |
| Tube length mm | 230 |
Manufacturer Part Numbers
| Lely |
|---|
| 9.1087.0022.5 |
