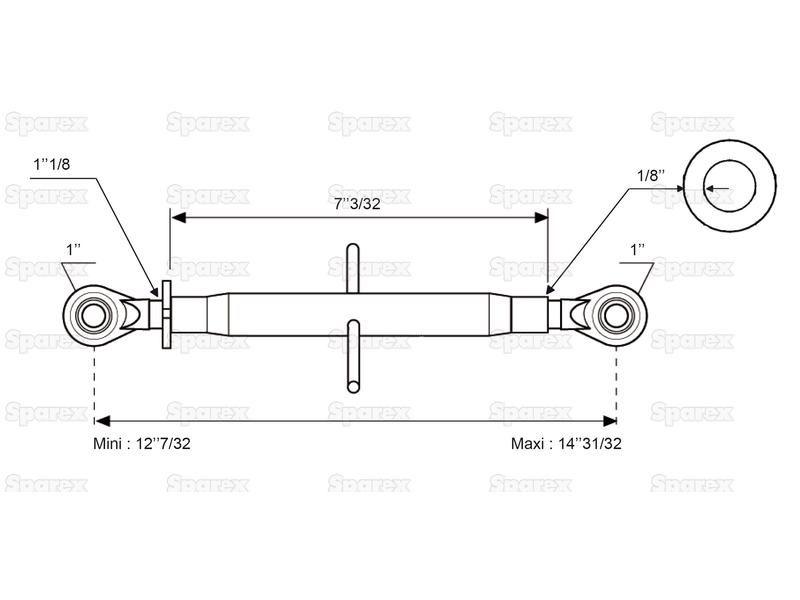

Top Link Standard Duty (Cat.2/2) Ball and Ball, Min. Length: 307mm.
Part Number: S.15489Categories: PTO (shaft), Linkage
Part Number: S.15489
Grade: Replacement
Part Details
Top Link Standard Duty (Cat.2/2) Ball and Ball, Min. Length: 307mm. Tube length: 180mm,Min. Length: 307mm,Max. Length: 380mm,Thread size: 1 1/8''
Technical Information
| Brand | Sparex |
| Category | 2/2 |
| Category Implement End | 2 |
| Category Tractor End | 2 |
| Centre Tube | S.15237 |
| Centre Tube Size mm | 42 x 3.25 |
| Colour | Zinc |
| Implement End | Ball |
| Locking Collar | S.348 |
| Maximum Length ins | 15 1/32 |
| Maximum Length mm | 380 |
| Minimum Length ins | 12 3/32 |
| Minimum Length mm | 307 |
| Related Products | 15237, 15855, 15856, 333, 348 |
| Replacement Implement End | S.15856 |
| Replacement Tractor End | S.15855 |
| Suitable for Tractors up to hp kW | 100hp (75kW) |
| Tariff Code | 8708999790 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
| Tommy Bar | S.333 |
| Tractor End | Ball |
| Tractor End Ball Width mm | 51 |
| Tube Length ins | 7 |
| Tube length mm | 180 |
