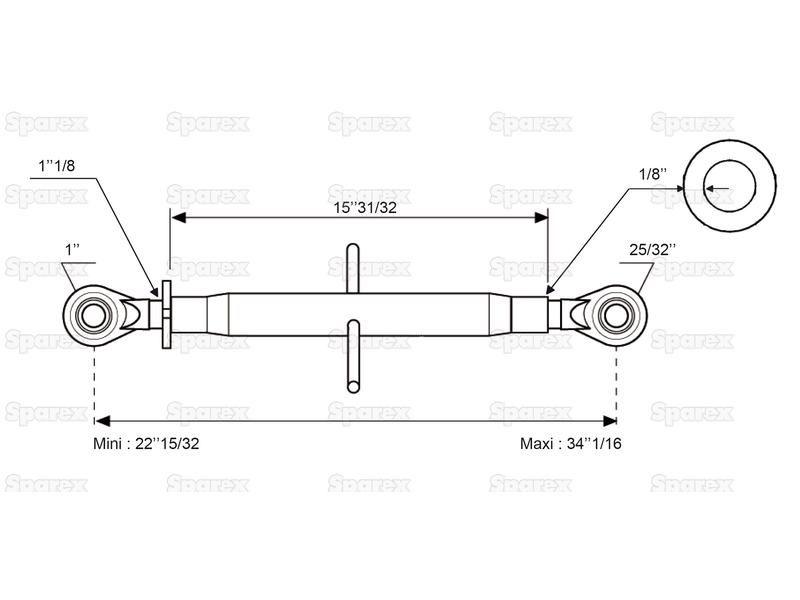

Top Link Standard Duty (Cat.20mm/2) Ball and Ball, Min. Length: 572mm.
Part Number: S.4182Categories: PTO (shaft), Linkage
Part Number: S.4182
Grade: Replacement
Part Details
Top Link Standard Duty (Cat.20mm/2) Ball and Ball, Min. Length: 572mm. Tube length: 405mm,Min. Length: 572mm,Max. Length: 865mm,Thread size: 1 1/8''
Technical Information
| Brand | Spenco |
| Category | 20mm/2 |
| Category Implement End | 2 |
| Category Tractor End | 20mm |
| Centre Tube | S.3378 |
| Centre Tube Size mm | 42 x 3.25 |
| Colour | Green |
| Implement End | Ball |
| Locking Collar | S.4264 |
| Maximum Length ins | 34 |
| Maximum Length mm | 865 |
| Minimum Length ins | 22 1/2 |
| Minimum Length mm | 572 |
| Related Products | 347, 4184, 4264 |
| Replacement Implement End | S.347 |
| Replacement Tractor End | S.4184 |
| Suitable for Tractors up to hp kW | 56hp (42kW) |
| Tariff Code | 8708999790 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
| Tommy Bar | S.4264 |
| Tractor End | Ball |
| Tractor End Ball Width mm | 44.5 |
| Tube Length ins | 16 |
| Tube length mm | 405 |
