Top Link Standard Duty (Cat.1/2) Ball and Ball, Min. Length: 525mm. Case IH (1965996C9, 1965996C91, 3141807R92)
Part Number: S.315Categories: PTO (shaft), Linkage
Part Number: S.315
Grade: Replacement
Part Details

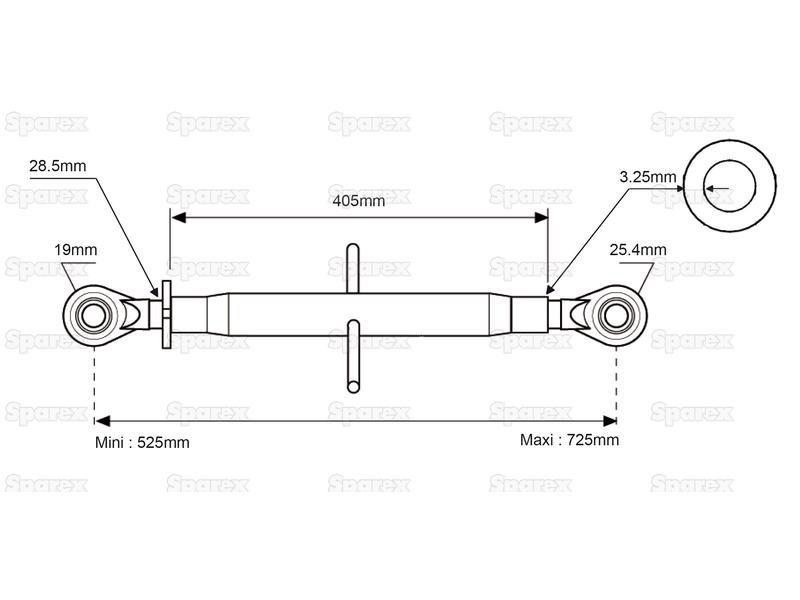

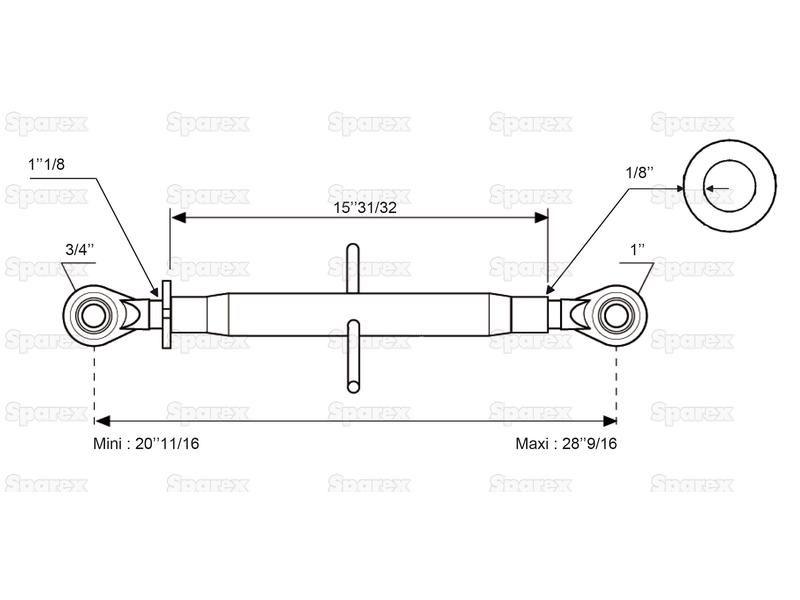

Top Link Standard Duty (Cat.1/2) Ball and Ball, Min. Length: 525mm. Tube length: 405mm,Min. Length: 525mm,Max. Length: 725mm,Thread size: 1 1/8''
Technical Information
| Brand | Sparex |
| Category | 1/2 |
| Category Implement End | 2 |
| Category Tractor End | 1 |
| Centre Tube | S.330 |
| Centre Tube Size mm | 42 x 3.25 |
| Colour | Zinc |
| Implement End | Ball |
| Locking Collar | S.348 |
| Maximum Length ins | 28 21/32 |
| Maximum Length mm | 725 |
| Minimum Length ins | 20 23/32 |
| Minimum Length mm | 525 |
| Related Products | 330, 333, 342, 347, 348 |
| Replacement Implement End | S.347 |
| Replacement Tractor End | S.342 |
| Suitable for Tractors up to hp kW | 56hp (42kW) |
| Tariff Code | 8708999790 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
| Tommy Bar | S.333 |
| Tractor End | Ball |
| Tractor End Ball Width mm | 44.5 |
| Tube Length ins | 16 |
| Tube length mm | 405 |
Manufacturer Part Numbers
| Case IH |
|---|
| 1965996C9, 1965996C91, 3141807R92 |
