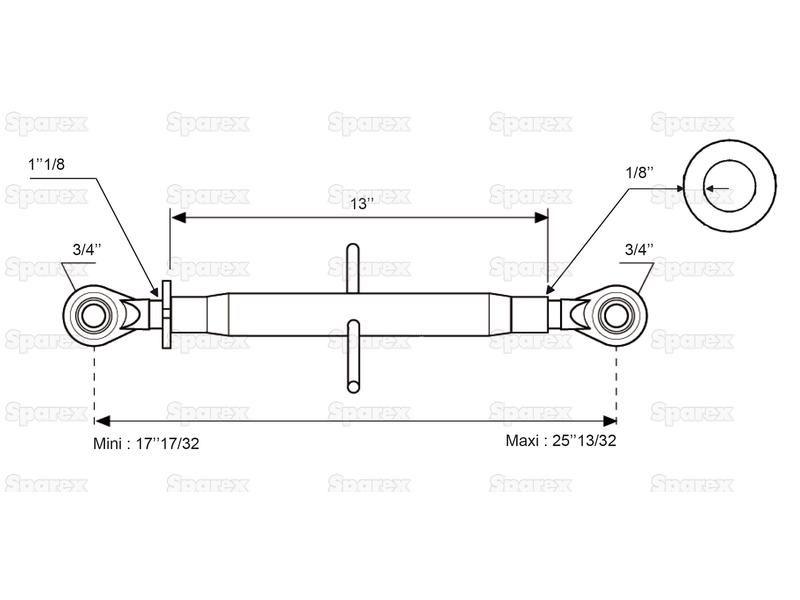

Top Link Standard Duty (Cat.1/2) Ball and Ball, Min. Length: 451mm.
Part Number: S.482Categories: PTO (shaft), Linkage
Part Number: S.482
Grade: Replacement
Part Details
Top Link Standard Duty (Cat.1/2) Ball and Ball, Min. Length: 451mm. Tube length: 330mm,Min. Length: 451mm,Max. Length: 650mm,Thread size: 1 1/8''
Technical Information
| Brand | Sparex |
| Category | 1/2 |
| Category Implement End | 2 |
| Category Tractor End | 1 |
| Centre Tube | S.323 |
| Centre Tube Size mm | 42 x 3.25 |
| Colour | Zinc |
| Implement End | Ball |
| Locking Collar | S.348 |
| Maximum Length ins | 25 23/32 |
| Maximum Length mm | 650 |
| Minimum Length ins | 17 3/4 |
| Minimum Length mm | 451 |
| Related Products | 323, 333, 342, 347, 348 |
| Replacement Implement End | S.347 |
| Replacement Tractor End | S.342 |
| Suitable for Tractors up to hp kW | 56hp (42kW) |
| Tariff Code | 8708999790 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
| Tommy Bar | S.333 |
| Tractor End | Ball |
| Tractor End Ball Width mm | 44.5 |
| Tube Length ins | 13 |
| Tube length mm | 330 |
