Top Link Standard Duty (Cat.1/1) Ball and Ball, Min. Length: 724.6mm.
Part Number: S.15595Categories: PTO (shaft), Linkage
Part Number: S.15595
Grade: Replacement
Part Details

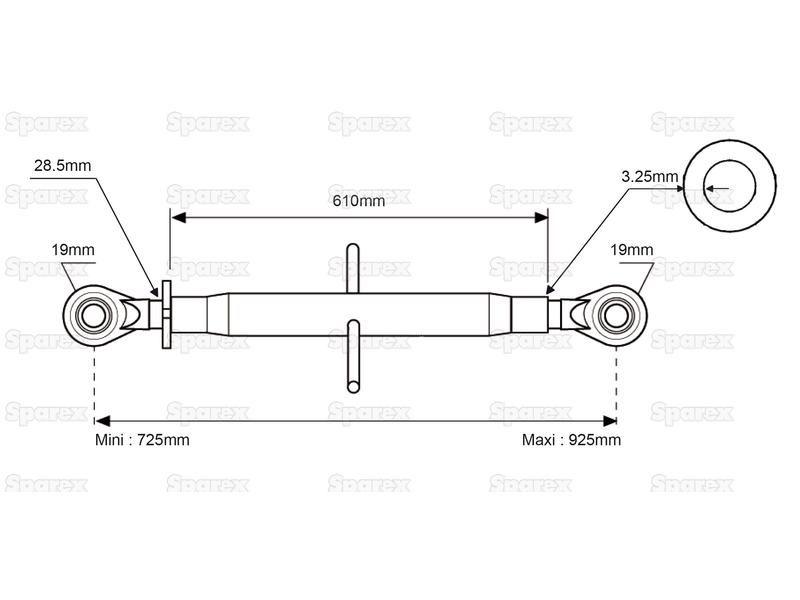

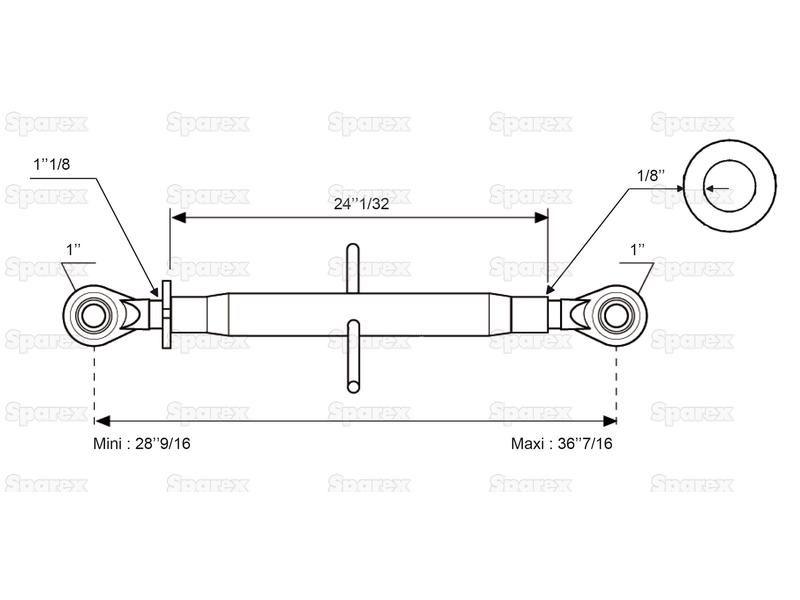

Top Link Standard Duty (Cat.1/1) Ball and Ball, Min. Length: 724.6mm. Tube length: 610mm,Min. Length: 724.6mm,Max. Length: 925mm,Thread size: 1 1/8''
Technical Information
| A ins | 0 |
| A mm | 610 |
| B Max. ins | 0 |
| B Max. mm | 925 |
| B Min. ins | 0 |
| B Min. mm | 725 |
| B mm | 0 |
| Brand | Spenco |
| Category | 1/1 |
| Category Implement End | 1 |
| Category Tractor End | 1 |
| Centre Tube Size mm | 42 x 3.25 |
| Colour | Zinc |
| Implement End | Ball |
| Locking Collar | S.348 |
| Maximum Length ins | 36 1/2 |
| Maximum Length mm | 925 |
| Minimum Length ins | 28 1/2 |
| Minimum Length mm | 724.6 |
| Related Products | 333, 342, 343, 348 |
| Replacement Implement End | S.343 |
| Replacement Tractor End | S.342 |
| Suitable for Tractors up to hp kW | 56hp (42kW) |
| Tariff Code | 8708999790 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
| Tommy Bar | S.333 |
| Tractor End | Ball |
| Tractor End Ball Width mm | 44.5 |
| Tube Length ins | 24 |
| Tube length mm | 610 |
