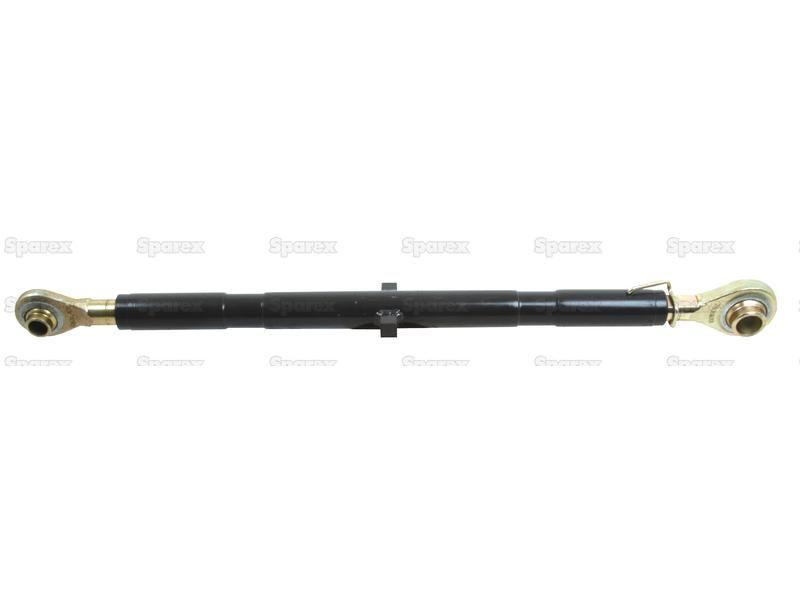

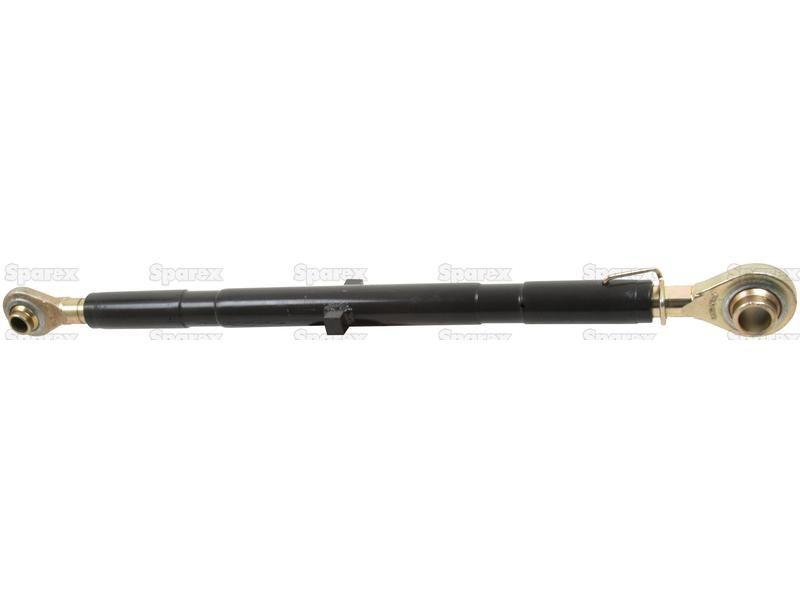

Top Link (Cat.1/1) Ball and Ball, 1 1/16'', Min. Length: 590mm. for Massey Ferguson 35 (Pre 100 Series (1947 - 65))
Part Number: S.584Categories: PTO (shaft), Linkage
Part Number: S.584
Grade: Replacement
Part Details

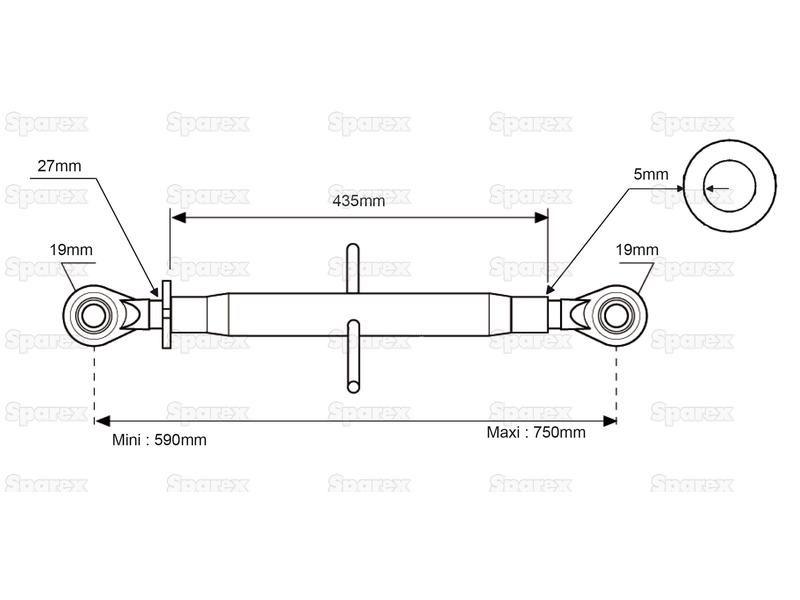

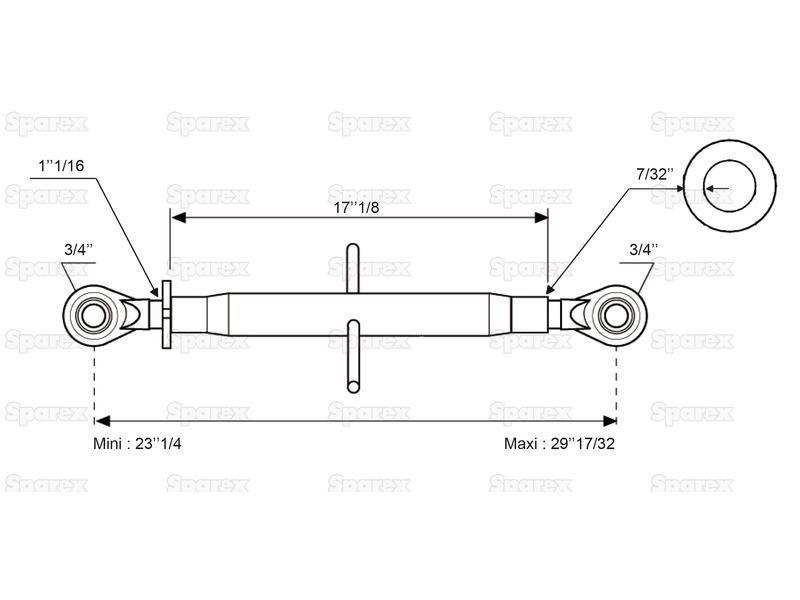

Top Link (Cat.1/1) Ball and Ball, 1 1/16'', Min. Length: 590mm. Tube length: 435mm,Min. Length: 590mm,Max. Length: 750mm,Thread size: 1 1/16''
Technical Information
| Brand | Spenco |
| Category | 1/1 |
| Category Implement End | 1 |
| Category Tractor End | 1 |
| Centre Tube | S.434 |
| Colour | Brown |
| Implement End | Ball |
| Locking Collar | S.439 |
| Maximum Length ins | 29 1/2 |
| Maximum Length mm | 750 |
| Minimum Length ins | 23 1/4 |
| Minimum Length mm | 590 |
| Related Products | 434, 439, 448, 449, 74, 75 |
| Replacement Implement End | S.449 |
| Replacement Tractor End | S.448 |
| Suitable for Tractors up to hp kW | 56hp (42kW) |
| Tariff Code | 8708999790 |
| Thread size | 1 1/16'' |
| Thread type | UNF |
| Tractor End | Ball |
| Tractor End Ball Width mm | 44.5 |
| Tube Length ins | 17 1/8 |
| Tube length mm | 435 |
Manufacturer Part Numbers
| Landini |
|---|
| 184134M91, 1870075M91 |
| Massey Ferguson |
| 184134M91, 1870075M91, 1870075V91 |
