Top Link Standard Duty (Cat.1/1) Ball and Ball, Min. Length: 520mm. for Massey Ferguson
Part Number: S.312Categories: PTO (shaft), Linkage
Part Number: S.312
Grade: Replacement
Part Details

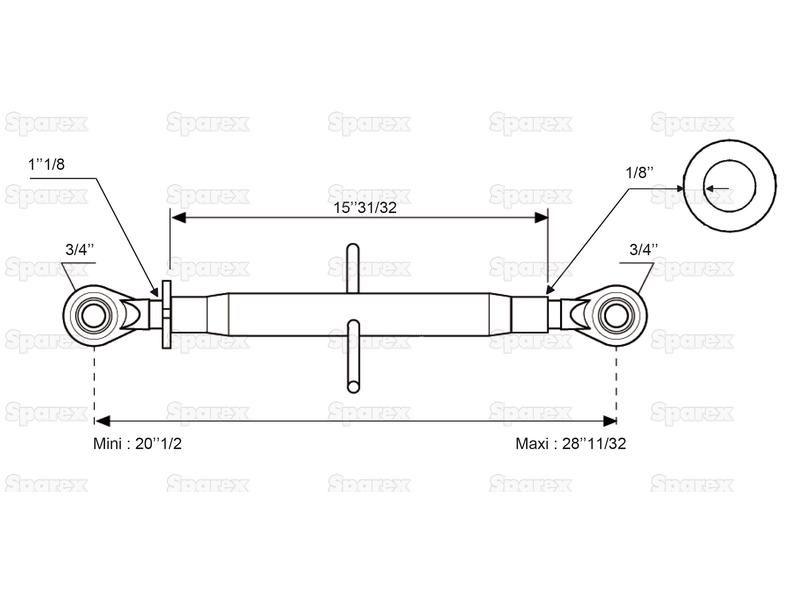

Top Link Standard Duty (Cat.1/1) Ball and Ball, Min. Length: 520mm. Tube length: 405mm,Min. Length: 520mm,Max. Length: 720mm,Thread size: 1 1/8''
Technical Information
| Brand | Sparex |
| Category | 1/1 |
| Category Implement End | 1 |
| Category Tractor End | 1 |
| Centre Tube | S.330 |
| Centre Tube Size mm | 42 x 3.25 |
| Colour | Zinc |
| Implement End | Ball |
| Locking Collar | S.348 |
| Maximum Length ins | 28 7/16 |
| Maximum Length mm | 720 |
| Minimum Length ins | 20 15/32 |
| Minimum Length mm | 520 |
| Related Products | 330, 333, 342, 343, 348, 119246, 119248 |
| Replacement Implement End | S.343 |
| Replacement Tractor End | S.342 |
| Suitable for Tractors up to hp kW | 56hp (42kW) |
| Tariff Code | 8708999790 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
| Tommy Bar | S.333 |
| Tractor End | Ball |
| Tractor End Ball Width mm | 44.5 |
| Tube Length ins | 16 |
| Tube length mm | 405 |
Models
| Massey Ferguson |
|---|
| TE20 (TE20 Series), TEA20 (TE20 Series), TED20 (TE20 Series), TEF20 (TE20 Series), TO20 (TE20 Series) |
