Top Link Standard Duty (Cat.1/1) Ball and Ball, Min. Length: 445mm.
Part Number: S.480Categories: PTO (shaft), Linkage
Part Number: S.480
Grade: Replacement
Part Details

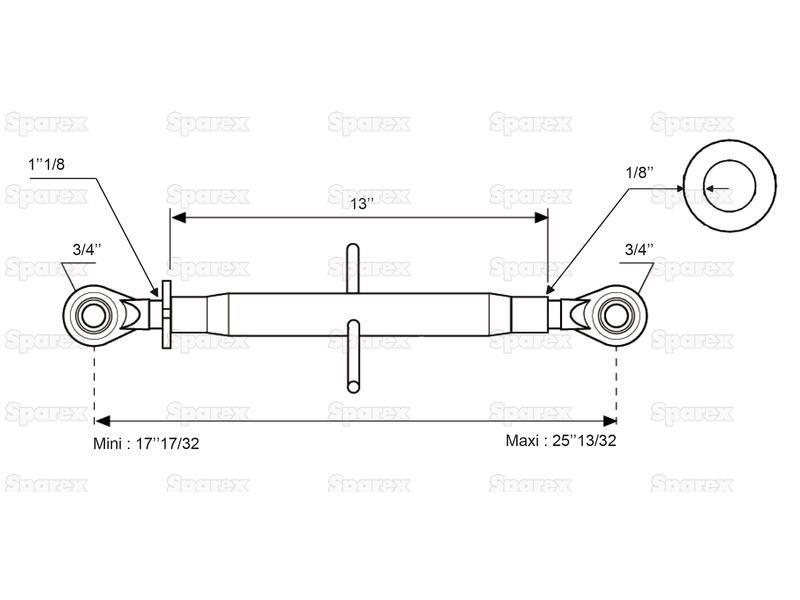

Top Link Standard Duty (Cat.1/1) Ball and Ball, Min. Length: 445mm. Tube length: 330mm,Min. Length: 445mm,Max. Length: 645mm,Thread size: 1 1/8''
Technical Information
| Brand | Sparex |
| Category | 1/1 |
| Category Implement End | 1 |
| Category Tractor End | 1 |
| Centre Tube Size mm | 42 x 3.25 |
| Colour | Red |
| Implement End | Ball |
| Locking Collar | S.348 |
| Maximum Length ins | 25 15/32 |
| Maximum Length mm | 645 |
| Minimum Length ins | 17 17/32 |
| Minimum Length mm | 445 |
| Related Products | 333, 342, 343, 348 |
| Replacement Implement End | S.343 |
| Replacement Tractor End | S.342 |
| Suitable for Tractors up to hp kW | 56hp (42kW) |
| Tariff Code | 8708999790 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
| Tommy Bar | S.333 |
| Tractor End | Ball |
| Tractor End Ball Width mm | 44.5 |
| Tube Length ins | 13 |
| Tube length mm | 330 |
