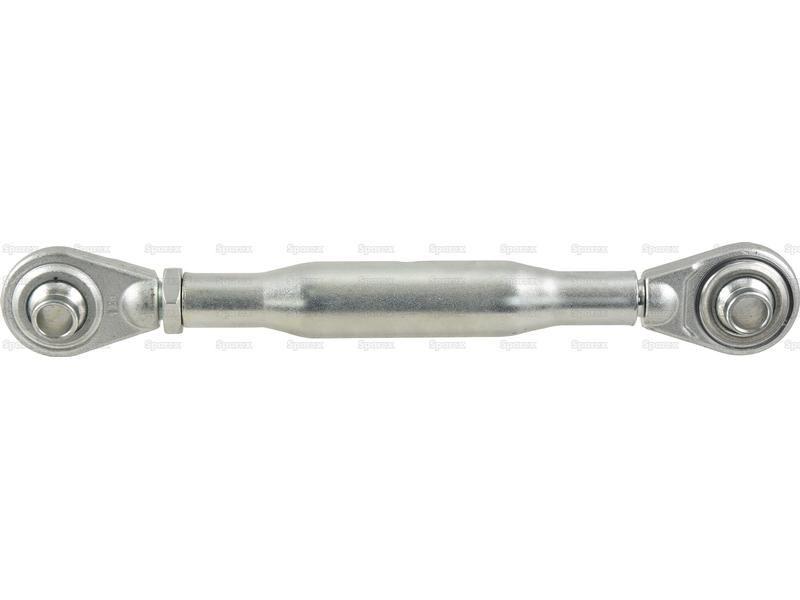

Top Link Standard Duty (Cat.1/1) Ball and Ball, Min. Length: 370mm.
Part Number: S.140523Categories: PTO (shaft), Linkage
Part Number: S.140523
Grade: Replacement
Part Details
Top Link Standard Duty (Cat.1/1) Ball and Ball, Min. Length: 370mm. Tube length: 250mm,Min. Length: 370mm,Max. Length: 524mm,Thread size: M24 x 3
Technical Information
| Brand | Sparex |
| Category | 1/1 |
| Category Implement End | 1 |
| Category Tractor End | 1 |
| Implement End | Ball |
| Maximum Length ins | 20 5/8 |
| Maximum Length mm | 524 |
| Minimum Length ins | 14 9/16 |
| Minimum Length mm | 370 |
| Suitable for Tractors up to hp kW | 40hp (30kW) |
| Tariff Code | 8708999790 |
| Thread size | M24 x 3.00 |
| Thread type | Metric |
| Tractor End | Ball |
| Tube Length ins | 9 27/32 |
| Tube length mm | 250 |
