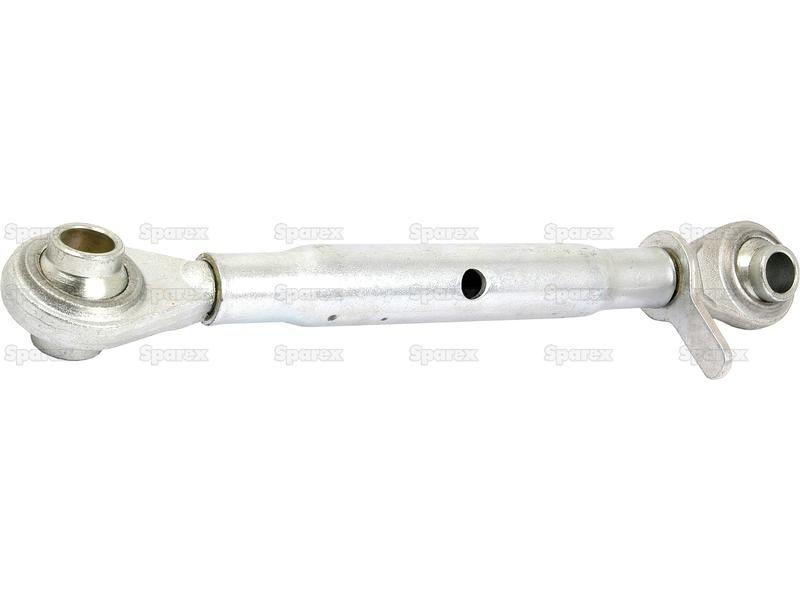

Top Link Standard Duty (Cat.1/1) Ball and Ball, Min. Length: 345mm.
Part Number: S.13276Categories: PTO (shaft), Linkage
Part Number: S.13276
Grade: Replacement
Part Details

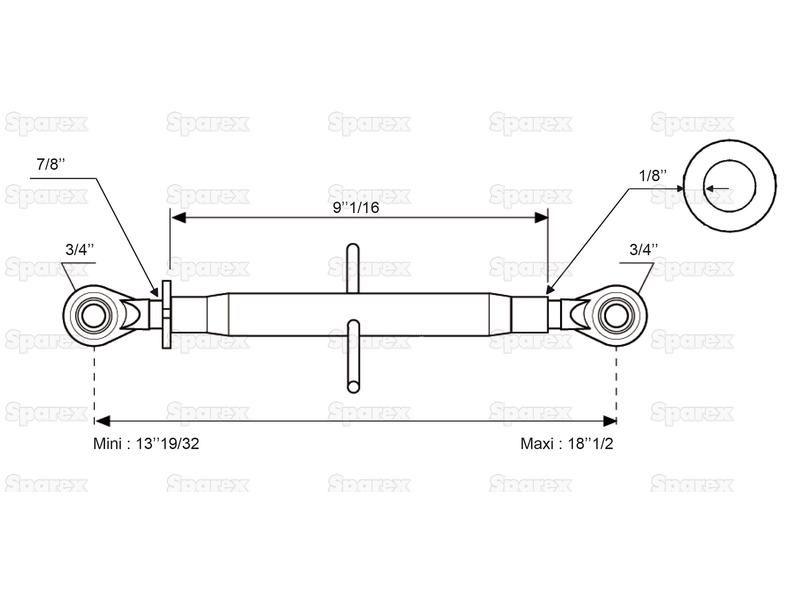

Top Link Standard Duty (Cat.1/1) Ball and Ball, Min. Length: 345mm. Tube length: 230mm,Min. Length: 345mm,Max. Length: 470mm,Thread size: M22
Technical Information
| A ins | 9 |
| A mm | 230 |
| B Max. ins | 0 |
| B Max. mm | 470 |
| B Min. ins | 0 |
| B Min. mm | 345 |
| B mm | 0 |
| Brand | Sparex |
| Category | 1/1 |
| Category Implement End | 1 |
| Category Tractor End | 1 |
| Centre Tube Size mm | 42 x 3.25 |
| Colour | Zinc |
| Implement End | Ball |
| Maximum Length ins | 18 1/2 |
| Maximum Length mm | 470 |
| Minimum Length ins | 13 19/32 |
| Minimum Length mm | 345 |
| Suitable for Tractors up to hp kW | 40hp (30kW) |
| Tariff Code | 8708999790 |
| Thread size | M22 |
| Thread type | Metric |
| Tractor End | Ball |
| Tube Length ins | 9 |
| Tube length mm | 230 |
